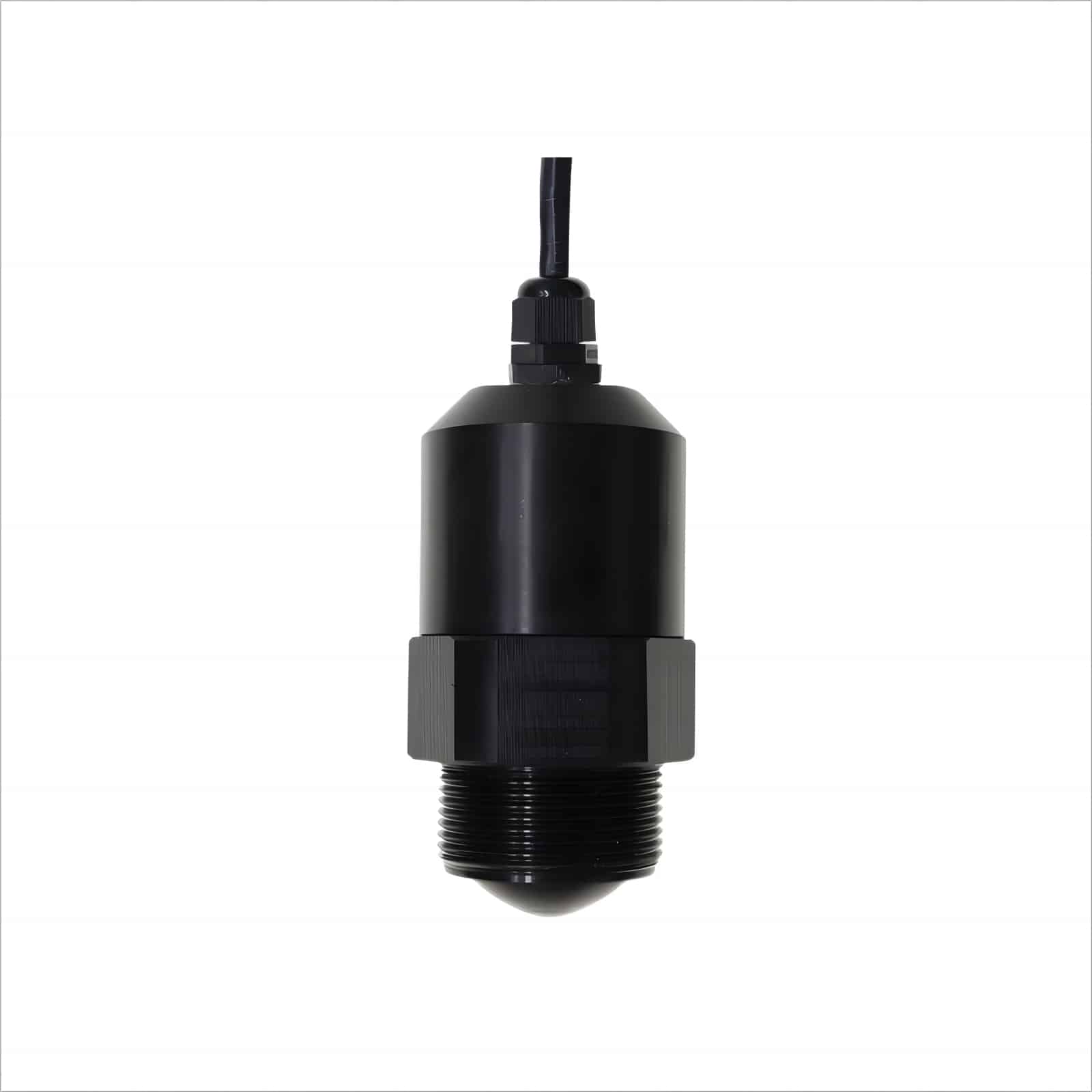

Integrated Radar Level Transmitter PL818
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
TECHNICAL PARAMETERS
|
No. |
Item |
Parameters |
Remarks |
|
1 |
Range available |
0.3~65m |
|
|
2 |
Frequency |
76GHz~81GHz |
|
|
3 |
Accuracy |
±1mm |
|
|
4 |
Beam angle |
6° |
|
|
5 |
Power Supply |
9~36VDC |
|
|
6 |
Communication |
RS485 Modbus RTU |
|
|
7 |
Analog output |
4-20mA 3 wires |
|
|
8 |
Repeatability |
＜0.01% |
|
|
9 |
Response time |
≤1.2s |
|
|
10 |
Dead zone |
≤30cm |
|
|
11 |
Working temp. |
-40℃-85℃ |
|
|
12 |
Housing material |
ABS / PVDF / aluminum / SS optional |
|
|
13 |
Protection |
IP68 |
|
|
14 |
Thread |
G1.5 / G2 male thread |
|
|
15 |
Weight |
460g±5％ |
|
WIRING INSTRUCTIONS
|
Red |
V+(DC9V~36V) |
|
Black |
GND |
|
Yellow |
RS485A (485+) |
|
Blue |
RS485B (485-) |
|
Green |
mA+ |
DISTANCE FROM CENTER TO WALL(MAX.)
A. After opening the product package, please check carefully whether the product appearance is intact, check whether the product manual is consistent with the product, and keep the product manual properly.
B. The power supply wiring must pay attention to confirm the correct line sequence and the power supply used should be within the range specified in the manual.
C. Try to keep the instrument away from sources of interference.
D. The probe head of the instrument and the probe surface vertical.
E. The probe surface is contaminated by the test solution to be cleaned up in a timely manner.
F. Such as not in accordance with the instructions or improper operation of man-made damage, not covered by the warranty.
ORDER CODE
——–A————-8————–R——–——-—10
MATERIAL RANGE IN Output cable length in meter
P=PVDF meter R=RS485
A=ABS R4=RS485+4/20mA
S=SS304
PP
Mounting Suggestion
1. The instrument should be mounted vertical to the water surface.
2. Keep the measurement range clear, no obstacle in front of the sensor
3. The instrument should be mounted at least 20cm distance from the wall
