ISO 73mm Dual Borehole Camera , 20 MPA Water Well Inspection Camera 360 Degree Rotate
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO CE |
| Model Number: | SAM-73 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | 73mm Dual Borehole Camera | Side Camera: | 360 Degree Rotate |
|---|---|---|---|
| Front Camera: | 120 Angle | Material: | 304 Stainless Steel |
| Camera Diameter: | 73mm | Pressure: | 20 MPA, Max Up To 2000 Meters |
| High Light: |
73mm Dual Borehole Camera, 360 Degree Dual Borehole Camera, 20 MPA Water Well Inspection Camera |
||
73mm Dual Camera Water Well Inspection Side Camera 360 Degree Rotate
73mm Dual Borehole Camera Specification:
73mm Dual Borehle Camra is SAMYON mostly Popular Camera. It has side camera rotating 360 degree and Front camaer 120 degree that can satisfy with higher quality water well inspection. SAM 73 can be easliy change video interface from front camra to side camera. It also can bear pressure upto maximum 20Mpa (upto depth 2000meter in water well. ). With main body tube 304 stailess steel material, it can be suitable for any slight corroision inspection working.

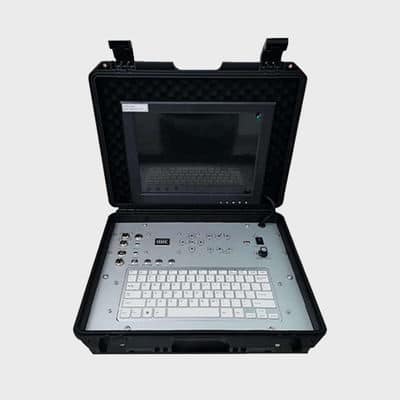

It works with our black color controller with 12 inch display, 32GB U disk and keyboard to easily taking notes during borehole testing. It also can be equiped with all kinds of SAMYON Winch: BlueH (handle) ,BlueE, AE, AEW(self winding function), Plate type GrayE and GrayEW(self – winding function). It is suitable for the borehole diameter more than 80mm well.
Side Camera LED light can be adjustble with 360 degree rotate.
When works with one winch and cable system, it can realize exchange with 73 DUAL, 73DUAL FOCUS, and 40 mm Single Camera.
73mm Dual Borehole Camera Application:
SAM-73 is suitable Dry hole and Wet hole for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc.
it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.
Borehole Camera Parameters:
| Borehole Diameter | 65mm Single | 65mm Dual | 73mm Dual | 73mm DualF | 73mm Single | 40mm Single |
| Rotate Angle | 360⁰ | Side Camera
360 ⁰ |
Side Camera
360 ⁰ |
Side Camera
360 ⁰ |
×××××× | ×××××× |
| Camera Number | One | Two | Two | Two | One | One |
| Material | 316L Stainless Steel | 316L Stainless Steel | 304
Stainless Steel |
304
Stainless Steel |
Steel | Steel |
| Bear Pressure | Max.20Mpa | |||||
| Centralizer | Equip With | |||||
| Depth Meter | Digital Depth Meter | |||||
| Controller | Yellow Color | Yellow Color | Black Color | Black Color | Black Color | Black Color |
| Display | 12inch | |||||
| Focus Function | Yes | NO | NO | Yes | NO | NO |
| Winch Type | AE /AEW/ GrayE/GrayEW | BlueH/BlueE/ AE /AEW/ GrayE/GrayEW | ||||

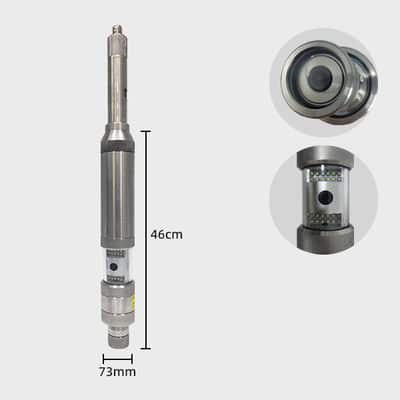

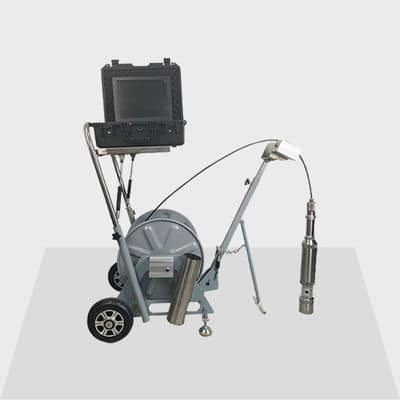

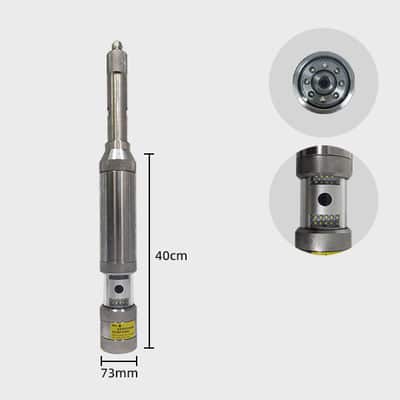

Borehole Camera Pictures:
