L-HPT Combined Dynamic Pile Load Test Equipment High Strain / Low Strain
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | L-HPT |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | High Strain / Low Strain Combined Pile Tester | Standard: | ASTM D5882 / ASTM D4945 |
|---|---|---|---|
| HPT Software: | PDAR And RCAPWAP, Without Key, So It Can Be Installed To Any Computer | HPT Sampling Frequency: | 10 KHz, 20 KHz, 30 KHz And 40 KHz |
| HPT Sampling Points: | 1024, 2048 And 4096 | LPT Sampling Frequency: | 48kHz, 96 KHz,144 KHz |
| High Light: |
combined dynamic pile load test equipment, iso dynamic pile load test equipment, combined low strain dynamic testing |
||

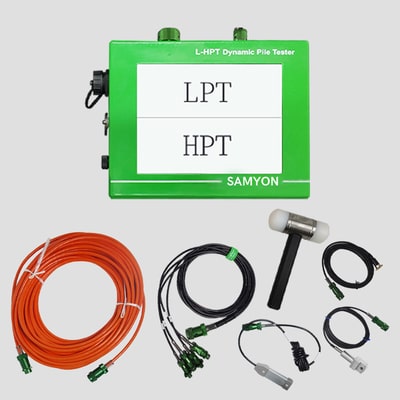

Dynamic L-HPT Pile Load Test Equipment High Strain / Low Strain
LPT section
Sampling Setting:
The sampling frequency can be adjusted, 48KHz,96kHz,144kHz
Sampling length is 4096points
Automatic Detection:
It can do data sampling continuously, auto save or manual save;
With average stacking function for multi blows during on-site data collection.
With automatically counting function for the detected piles on site.
Instrument software:
With Wavelet analysis function.
During the data sampling, it can do the Index Amplify and Wavelet analysis.
Analysis software:
With powerful and advanced analysis software, includes Index amplify, Rotate for the graph tail, Low-pass filtering, High-pass filtering, and also the advanced wavelet analysis, it can show the pile real status directly.
HPT section:
Sampling Setting:
The sampling frequency is 10kHz, 20kHz and 40kHz, adjustable.
The sampling length is 1024, 2048, 4096, selectable.
Max sampling time is up to 400ms.
Data Format:
The original data is .S01, can save as .S06 by PDAR software, and save as .S16 by RCAPWAP software.
It can also save as .X01 compatible with American PDA.
Sensor features:
The sensor has self-checking function, it can judge whether the system is on normal status automatically.
It can auto check the static strain deviation of strain gauge, then do auto calibration before testing.
Analysis software
PDAR analysis software is for opening the original data .S01, and do adjusting as CASE method.
RCAPWAP analysis software is for opening the .S06 data, and do matching as Matching method.
PDAR Analysis Software RCAPWAP Analysis Software
| Item | Name | HPT details | LPT details |
| 1 | Sampling frequency | 10 kHz, 20 kHz, 30 kHz and 40 kHz | 48kHz, 96 kHz,144 kHz |
| 2 | Sampling points | 1024, 2048 and 4096 | 4096 |
| 3 | Software | PDAR and RCAPWAP, without key, so it can be installed to any computer | LPTR, without key, so it can be installed to any computer |
| 4 | Accelerometer | PE, imported from America | 0.5～10000Hz, IP68, imported from America, |
| 5 | Strain gauge | Range 2000 | |
| 6 | Main host size | 225*172*62mm | |
| 7 | Main host weight | 2.0kg | |
| 8 | Screen | 8inch high brightness color touchscreen LCD, can be operated by hand or touch pen | |

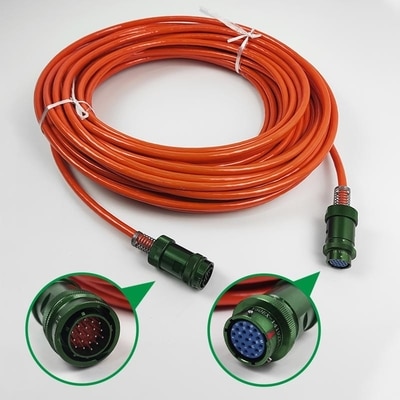

| 9 | Cable | Special customized for field testing | |
| 10 | Connector | aviation plug and connectors are with high quality, compatible with American machine | |
| 11 | Power | Li battery 12.6V 5200mAh | |
