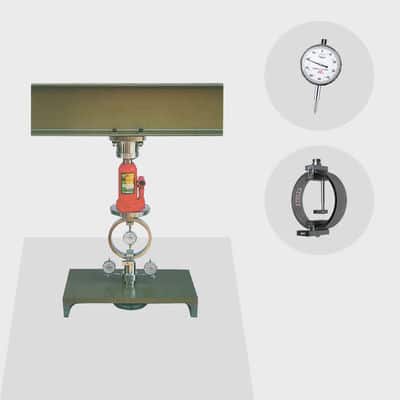

LCB-2 CBR California Bearing Ratio Apparatus 60KN For Soil CBR Value Testing
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | LCB-2 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | CBR Tester | Standard: | GB/T 50123-2019 |
|---|---|---|---|
| Force Ring: | 60KN | Hydraulic Jack: | 100kN |
| Penetration Bar: | Ø50 X 200mm | Bearing Plate: | 4pcs |
| High Light: |
CBR California Bearing Ratio Apparatus, 60KN California Bearing Ratio Apparatus |
||
LCB-2 California Bearing Ratio Value Test Apparatus
Application:
CBR Value Test Apparatus is used in situ to test CBR value of the materials of every soil bases.
Standard:
GB/T 50123-2019 Standard for geotechnical testing method
JTG E40-2007 Test methods of soils for highway engineering
TB10102-2010 Code for soil test of railway engineering
SL237-1999 Specification of soil test
JTJ 059-95 Field test methods of subgrade and pavement for highway engineering
Parameters:
| Item | Names | Details |
| 1 | Force ring | 60KN |
| 2 | Hydraulic jack | 100kN |
| 3 | Penetration bar | Ø50 x 200mm |
| 4 | Bearing plate | 1.25Kg/pc, 4pcs |
| 5 | Testing device | Platform and micrometer |
Features:
1. This instrument is designed and manufactured according to JTJ059-95, and is suitable for the on-site determination of the CBR value of various soil-based materials on the highway.
2. The working principle is to use a truck with a rear bearing weight not less than 60KN, load it with a jack, and calculate the CBR value of the soil foundation site through the penetration measured by the penetration rod and the load weight measured by the force measuring ring.
