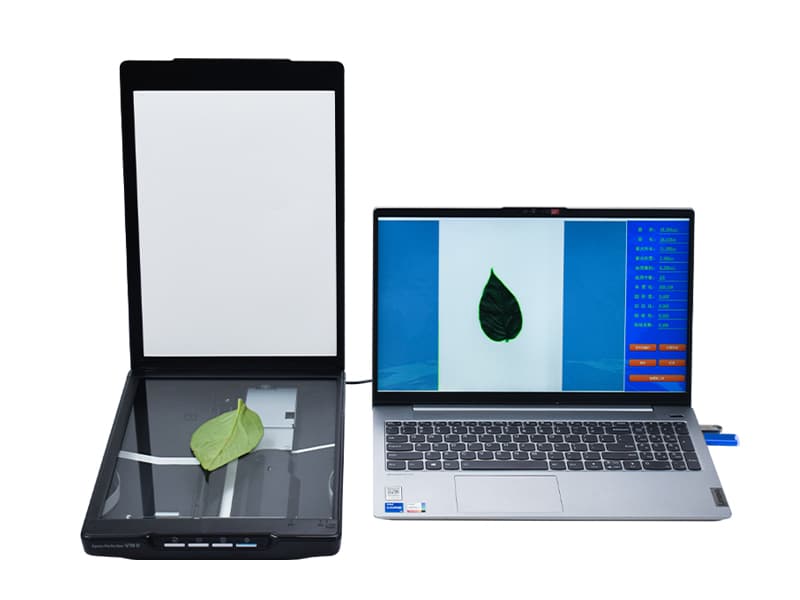

Leaf Image Analyzer

Application:

YMJ-S leaf image analyzer adopts an open architecture system and can be freely combined into a field portable, laboratory type and other scanning individual area measurement instruments. The instrument uses a calibrated image capture device to obtain high-quality leaf images and uses professional software to accurately analyze and calculate leaf area and related parameters. It is widely used in plant physiology, plant ecology, plant pathology, agronomy, horticulture and forestry, and can be used for morphological and plant pathology research.

Measurement parameters:

Leaf measurement parameters: leaf area (single and multiple and total area), leaf length, leaf circumference, maximum leaf width, average leaf width, aspect ratio, leaf and petiole length, shape factor, custom leaf width, custom length and analysis area, etc.

Composition:

1. Image capture system: image capture system debugged by the manufacturer

2. leaf-1000 leaf image analysis software

Image acquisition system parameters:

Scanning area 220×300 mm, resolution 4800 dpi, portable tablet, powered by laptop

Measurement range:

Broadleaf leaves not larger than 220×300 mm

Measurement resolution:

Area: 0.001cm2

Length, width: 0.01cm2
