Low Strain Lpt Lcd Pile Integrity Test Machine 12.6v 5200mah With Imported Accelerometer

Low Strain LPT Pile Integrity Test Machine 12.6V 5200mAh With Imported Accelerometer

Standard: ASTM D5882 Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations

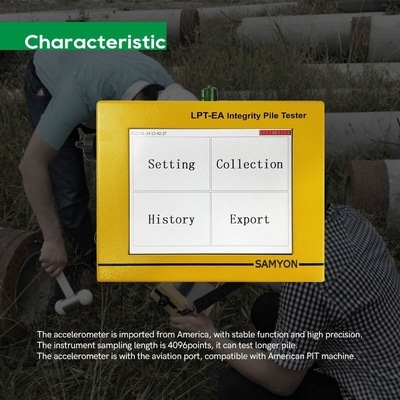

Characteristic:

The accelerometer is imported from America, with stable function and high precision.

The instrument sampling length is 4096points, it can test longer pile.

The accelerometer is with the aviation port, compatible with American PIT machine.

Main controller

8” touchscreen and high brightness colorful LCD, can operate by hand or by touch pen, with steel cover, full sealed, dustproof and waterproof.

Accelerometer:

Original imported accelerometer from America, stable performance, and high precision, compatible with American PIT

Application:

The instrument can be used for the pile integrity testing for the Cast-in-place pile, Pipe pile, square pile, and also some other concrete piles.

Specification:

Main controller: Size: 225*172*62mm, Weight: 2.0kg

Accelerometer: Sensitivity: 100mV/g, Frequency: 0.5~10000Hz, working temperature: -54℃~ +121℃, waterproof: IP68

Display:

With 24bit high precision AD LCD, 8” touchscreen and high brightness colorful LCD, it can operate by hand or by touch pen.

Data collection:

The sampling frequency can be adjusted, 48KHz,96kHz,144kHz

Sampling length is 4096points

Automatic Detection:

It can do data sampling continuously, auto save or manual save;

With average stacking function for multi blows during on-site data collection.

With automatically counting function for the detected piles on site.

Instrument software:

With Wavelet analysis function.

During the data sampling, it can do the Index Amplify and Wavelet analysis.

Data Management

It can save more than 30k measured graph.

The data can be exported through the U disk.

Analysis software:

With powerful and advanced analysis software, includes Index amplify, Rotate for the graph tail, Low-pass filtering, High-pass filtering, and also the advanced wavelet analysis, it can show the pile real status directly.
