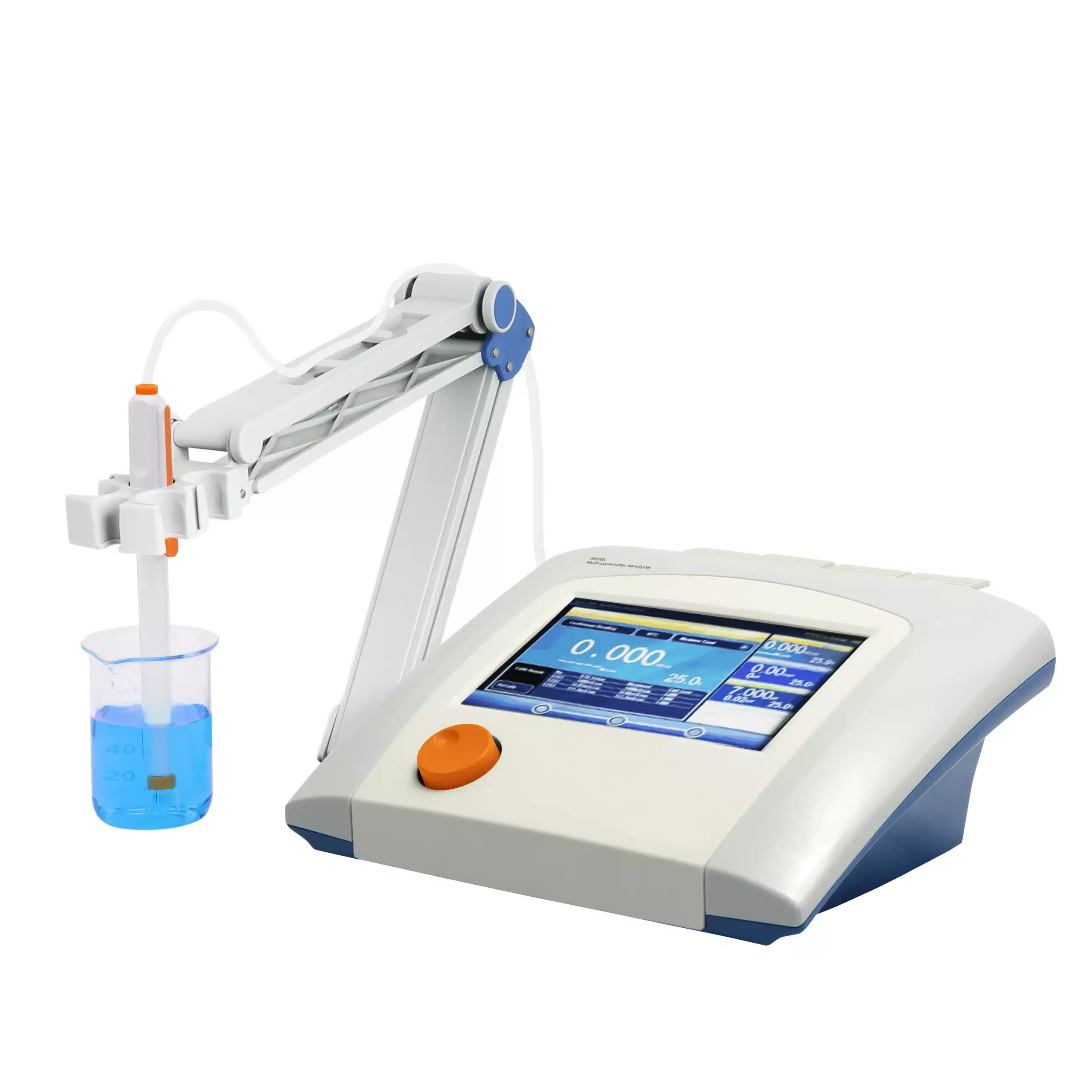

M600L Multi-parameter Analyzer

500.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Description

M600L

GENERAL FEATURES

● Color High contrast LCD touchscreen, 7.0 inches.

● Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Data Storage 1000 sets for each parameter (GLP-compliant).

● Data analysis feature helps user review, compare and recalculate results.

● Support for USB or RS-232 communication.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.

● Support for three modules, namely pH/ISE module, conductivity module and dissolved oxygen module.

● Select from three modules to customize the four channels your way.

● Four channels can be configured in any combination.

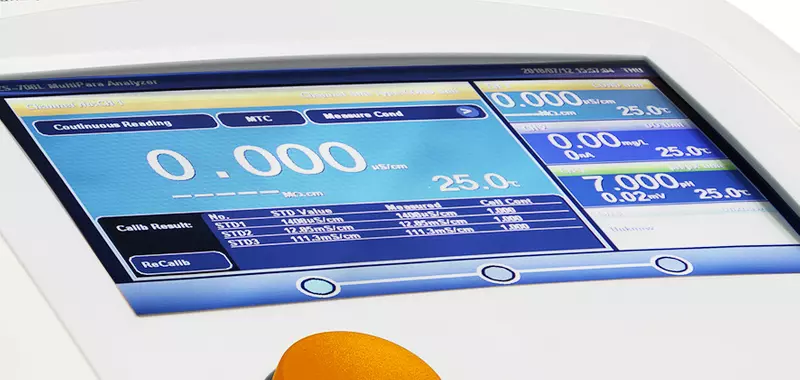

Large color touch screen

Large color touch screen

Easy operation and comfortable experience

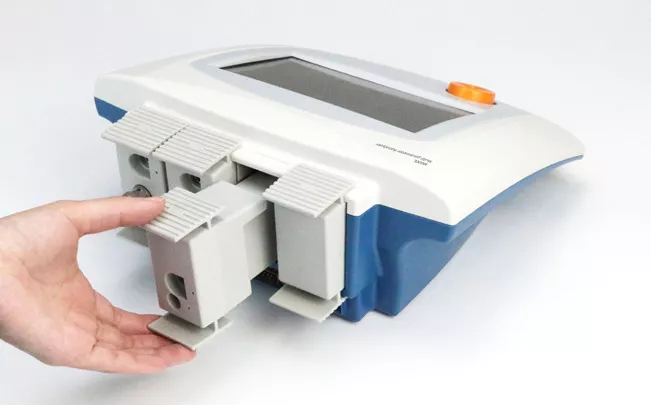

Modular design

Modular design

Four channels, flexible configuration

PH

● 1-6 points calibration with Standard Recognition.

● Selectable pH buffer groups, including NIST, DIN, GB.

● Support for pH standard group customization.

● Automatic electrode diagnosis with pH slope and offset display.



Ion

● 1-6 points calibration

● Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.

● Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

● Over 10 methods are built-in, including F- , Cl- , Br- , I- , NO3 – , BF4 – , NH4 + , K+ , Na+ , Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.



Conductivity

● 1-5 points calibration with Standard Recognition.

● Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.

● Temperature compensation type (none, linear, pure water).



DO

● Support for air-saturated water or zero oxygen calibration.

● Auto barometric pressure compensation.

● Manual Salinity Factor Correction.

● Selectable pressure unit, including kPa, mbar, Torr, Atm.

Specification

Model M600L
Parameters pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
         pH Range -2.000 to 20.000 pH
Resolution 0.1, 0.01, 0.001pH
Accuracy ± 0.002 pH
Calibration Points Up to 6
Standard Customization Yes
Calibration Reminder Yes
Standard Recognition NIST, GB, DIN buffers
Slope Limit Yes
        mV/ORP Range -2000.00 to 2000.00 mV
Resolution 0.1, 0.01 mV
Accuracy ± 0. 1 mV or ± 0.03%
EH ORP Mode Yes
ORP Calibration Points 1~2 custom point (relative mV)
         pX Range -2.000 to 20.000 pX
Resolution 0.1, 0.01, 0.001 pX
Accuracy ± 0.002 pX
Calibration Points Up to 6
         ISE Range 0~19990
Units mol/L, mmol/L, g/L, mg/L, μ g/L
Resolution Up to 4 significant digits
Accuracy ± 0.3%
Calibration Points                                 Up to 6
        Conductivity Range 0.000 μ S/cm to 3000 mS/cm
Resolution 0.001 μ S/cm minimum, various with range selection
Accuracy ± 0.5% FS
Reference Temperature 5, 10, 15, 18, 20, 25 ºC
Calibration Points Up to 5
Standard Recognition 146.5 μ S/cm, 1408 μ S/cm, 12.85mS/cm, 111.3mS/cm
Resistivity Range 5.00 Ω ·cm~100.00 M Ω ·cm
Resolution 0.01 Ω ·cm minimum
Accuracy ± 0.5% FS
TDS Range 0.000 mg/L~1000 g/L
Resolution 0.001ppm minimum, changed with range
Accuracy ± 0.5%FS
          Salinity Type NaCl%
Range (0.00~8.00)%
Resolution 0.01%
Accuracy ± 0. 1%
Dissolved Range 0.00 to 99.99 mg/L
 Oxygen Concentration – Polarographic Resolution 0.01 mg/L
Accuracy ± 0. 1 mg/L
Calibration Reminder Yes
Calibration Points Air-saturated water or zero point
Barometric Compensation Yes
Manual Salinity Factor Correction Yes
% Saturation -Polaro- graphic Range (0.0 to 600)%
Resolution 0.10%
Accuracy ± 2.0%
       Temperature Range -5 to 130 ºC
Unit ºC
Resolution 0.1
Accuracy ± 0. 1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes
Inputs pH Electrode BNC(Q9)
DO with Temp. Probe 6-pin Mini-DIN
Conductivity with Temp. Probe 8-pin Mini-DIN
Outputs USB, RS 232 USB 2.0 flash memory device, printer, PC
Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Power AC Adapter, 100-240V AC input, DC24V output
Dimensions 280 × 280 × 130 mm
Weight 2500g (5.51 lb)
