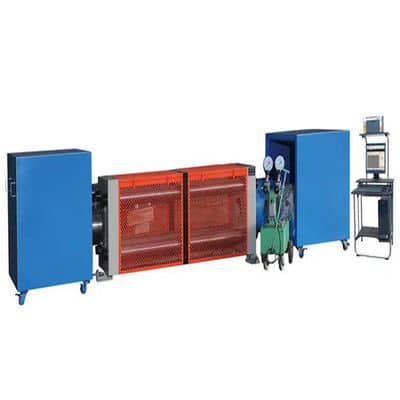

MGW Universal Testing Machines 150kg 1MPA -52MPA For Static Loading Anchoring Testing
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | MGW |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Anchoring Testing Machine | Standard: | GB/T 14370-2007 |
|---|---|---|---|
| Testing Force Range: | 2% ~ 100% FS | Adjustment Range: | 1MPA -52MPA |
| Relative Error: | +/-1% | Reliability: | +/-0.5% |
| High Light: |
MGW Universal Testing Machines, 150kg Universal Testing Machines, 52MPA Anchor Testing Machine |
||
MGW Computer-Control Electro-Hydraulic Servo Anchoring Testing Machine For Static Loading Anchoring Testing
MGW Computer-Control Electro-Hydraulic Servo Anchoring Testing Machine
Application:
It is mainly used in static loading anchoring performance testing of steel strand or anchorage. It is suitable for the mechanical property experiment in the GB/T14370.
Standard:
GB/T 14370-2007 Anchorage, grip and coupler for prestressing tendons
Parameters:
| Model | MGW-5000 | MGW-6500 | MGW-10000 |
| Testing force efficient range | 2% ~ 100% FS of the max testing force | ||
| Force indication relative error | +/-1% | ||
| Displacement measure range(mm) | 0-200 | ||
| Displacement indication relative error(mm) | +/-1% | ||
| Adjustment range of force rate control | 1MPA -52MPA | ||
| Relative error of force rate control | +/-1% | ||
| Relative error of displacement rate control | +/-1% | ||
| Range of force and displacement keeping in control | 0.3% ~ 100%FS | ||
| Relative error of force and displacement keeping in control | +/-1% | ||
| Reliability | +/-0.5% | ||
| Relative resolution | +/-0.5% | ||
| Piston stroke(mm) | 200 | ||
| Tensile volume(mm) | 3200 | ||
| Total weight(kg) | 150 | 150 | 150 |
| Overall dimension(mm) | 3200*780*650 | 3300*750*660 | 3400*750*660 |
Features:
1. Automatic display: The testing force, max force, displacement, speed, deformation value, breaking force will be displayed in real time by the liquid crystal screen.
2. Automatic control: The machine can complete the whole process on testing after inputting the testing parameters.
3. Specimen judgement: The movable cross beam will stop automatically when the specimen broken.
4. Position limitation protection: Possessing two class of position limitations protection including mechanical and programming control.
5. Special optional implement: special optional implement will be provided according to the need of the client in addition to the standard tensile implements
