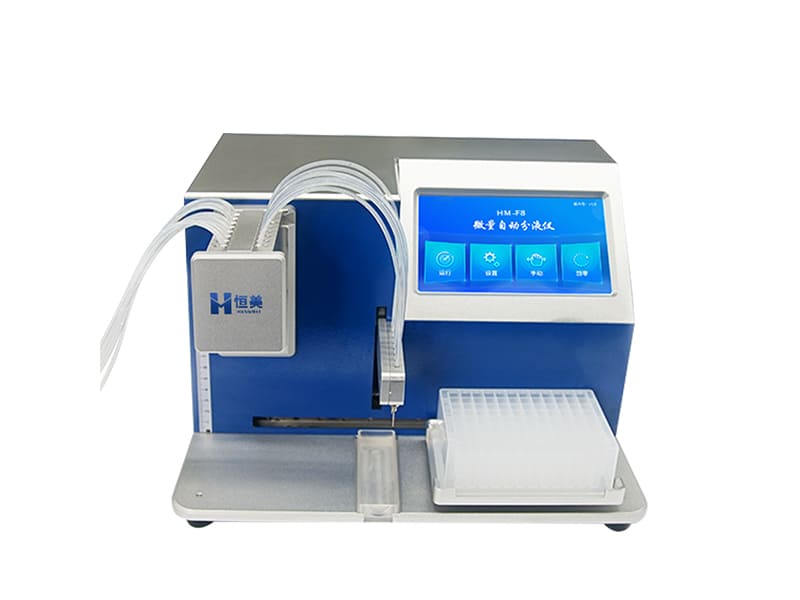

Micro automatic liquid separator

Product Description:

The micro automatic liquid separation instrument is a high-precision, fast liquid separation speed, and flexible and reliable micro liquid separation instrument. The appearance design is compact and simple, and the human-machine interface is easy to operate. It has multiple functions such as cleaning, suction, and oscillation mixing, which can be applied to various experimental operations in various fields.

Product features:

1. Appearance: The instrument design is compact, compact and simple, with desktop operation and small space occupation.

2. Diversified liquid separation: The entire board or any column can be selected, and different columns can be divided into different volumes.

3. Separation pipeline: The 8-channel separation management component facilitates disassembly and replacement, effectively preventing cross contamination.

4. Strong applicability: suitable for various types of 96 well microplates, 8-way pipes, 384-well plates, etc.

5. Operation interface: 7-inch color touch screen, intuitive and easy to operate human-machine interface.

6. Strong functionality: With multiple functions such as cleaning, suction, and oscillation mixing, it can meet different experimental needs.

7. Waste liquid treatment: Equipped with a flexible waste liquid tank for collection and disposal, and can also be connected for direct discharge, easily solving the waste liquid problem.

Product Description:

Separation volume: 1-9999 μ L (1) μ L increment)

Separation height: can automatically adjust the separation height of different plate types

Liquid separation module: a detachable and replaceable 8-channel liquid separation pipeline component

Separation speed: The desired speed can be set by oneself

Liquid separation accuracy: 5 μ L ≤ 10%; ten μ L ≤ 5%; twenty μ L ≤ 3%;> fifty μ L: ≤ 2%

Separation plate position: 1

Auxiliary functions: With one click cleaning and suction function

Oscillation function: With oscillation mixing function, it is convenient for mixing after liquid separation

Counting function: It has the function of remembering the number of liquid separations and displaying the number of liquid separations in real time

Operating voltage: 220V, 50Hz

Appearance dimensions: length 348mm * width 292mm * height 225mm
