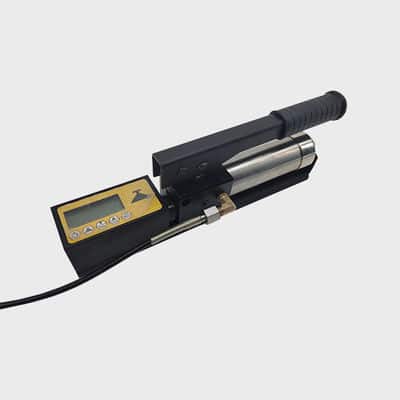

Mini Anchorage Force Test Equipment 50MPa GB 50367-2013 Standard
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-V |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Mini Force Tester | Standard: | GB 50367-2013 |
|---|---|---|---|
| Max Pressure: | 50MPa | Max Force: | 50KN |
| Test Range: | 0-50KN | Power Supply: | 4.2v Li Battery |
| High Light: |
50MPa Force Test Equipment, GB 50367-2013 Force Test Equipment, ISO Mini Force Tester |
||
SY-V Mini Anchorage Force Tester For Testing M6 To M12 Bolt Anchoring Force
SY-V Mini Anchorage Force Tester
Application:
It is suitable for testing the anchorage force of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall.
Standard:
GB 50367-2013 Code for design of strengthening concrete structure
GB 50550-2010 Code for acceptance of construction quality of strengthening building structures
CECS 22:2005 Technical specification for ground anchors
JGJ 145-2013 Technical specification for post-installed fastenings in concrete structures
Parameter:
| Model | SY-V1.5 | SY-V2 | SY-V3 | SY-V4 | SY-V5 | |
| Manual pump | Max Pressure | 50MPa | ||||
| Piston diameter | 10mm | |||||
| Weight | 2kg | |||||
| Oil cylinder | Max force | 15KN | 20KN | 30KN | 40KN | 50KN |
| Piston stroke: | 50mm | |||||
| Weight: | 1.8kg | |||||
| Central hole: | 18mm | |||||
| Digital pressure gauge | Test range | 0-15KN | 0-20KN | 0-30KN | 0-40KN | 0-50KN |
| Power supply | 4.2v Li battery | |||||
| Weight | 0.2kg | |||||
| Anchorage specifications
(Optional) |
φ6, φ8, φ10, φ12, | |||||
| Connector specifications
(Optional) |
M6, M8, M10, M12, | |||||
Features:
1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.
2. The manual pump is of High-Low pressure dual-Radial Piston design more efficient.
3. The stainless steel and aluminum material can increase its life.
4. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors. Digital pressure gauge directly shows the tension value.
5. It is featured by compact designation, portable, smaller size, and light weight.
