MS-H-S10 10Channel Magnetic Stirrer
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
-
Specifications:MS-H-S10/MS-M-S10
-
Work plate Dimension:180x450mm
-
Work plate material:Stainless steel with silicone
-
Motor type:Brushless DC motor
-
Motor rating input:12W
-
Motor rating output:4W
-
Power:490W
-
Heating output:470W
-
Voltage:100-120/200-240V 50/60Hz
-
Stirring positions:10
-
Max. stirring quantity[H2O]:0.4Lx10
-
Max. magnetic bar[length]:40mm
-
Speed range:0-1100rpm
-
Speed display:scale
-
Temperature display:scale
-
Heating temperature range:Room temp.-120°C
-
Over heat Protection:140°C
-
Temperature display accuracy:IP42
-
Dimension [W x D x H]:182×622×65mm
-
Weight:3.2kg
-
Permissible ambient temperatur:5-40℃ 80%RH
lab magnetic hotplate stirrer ika digit factory supplier of sale
The laboratory is a place where new things are discovered and it is also an extremely dangerous place,
so the experimental steps must be carried out in sequence, and the laboratory mixer is an indispensable
one of many experimental instruments. It is mainly used to mix materials and prevent materials from settling.
The stirrer used varies according to the experiment。
The magnetic stirrer uses the rotation of the magnetic field to drive the rotation of the stirring bar. The size
of the stirring bar is about 10mm, 20mm, 30mm long, and there are longer magnets. The shapes of the magnets
are cylindrical, elliptical and circular, etc., which can be selected according to the scale of the experiment.
It is mainly used for stirring and heating, and can also be carried out at the same time. It is suitable for liquids
or solid-liquid mixtures with low viscosity.

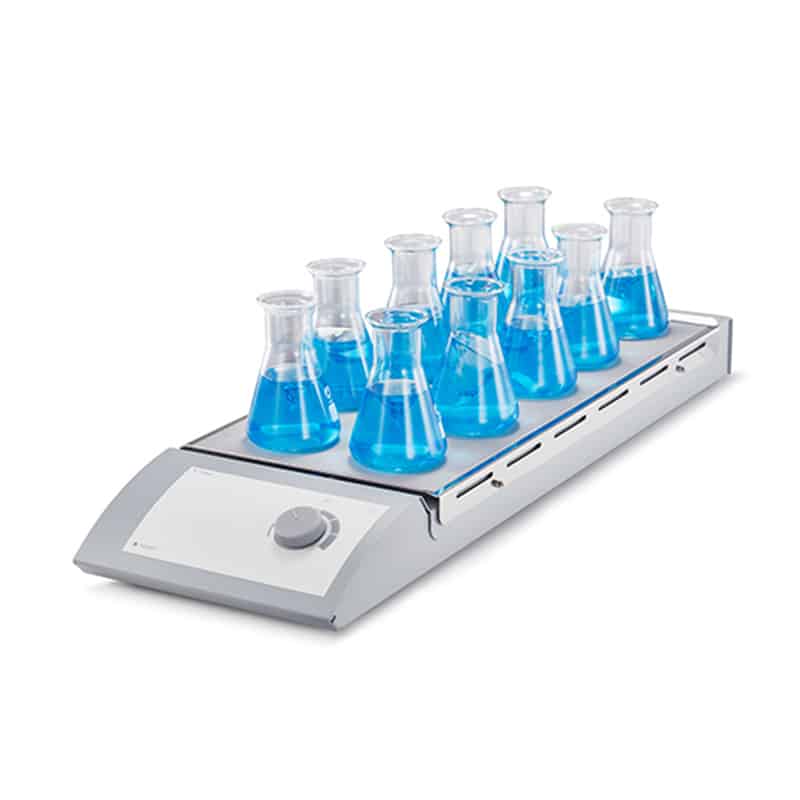

MS-H-S10
Key Features
• Maintenance-free brushless DC motor
• Max speed 1100rpm
• Max.temperature 120°C
• Stainless steel work plate, covered with silicone cushion,
provides the excellent performance of heating uniformity and skid resistance

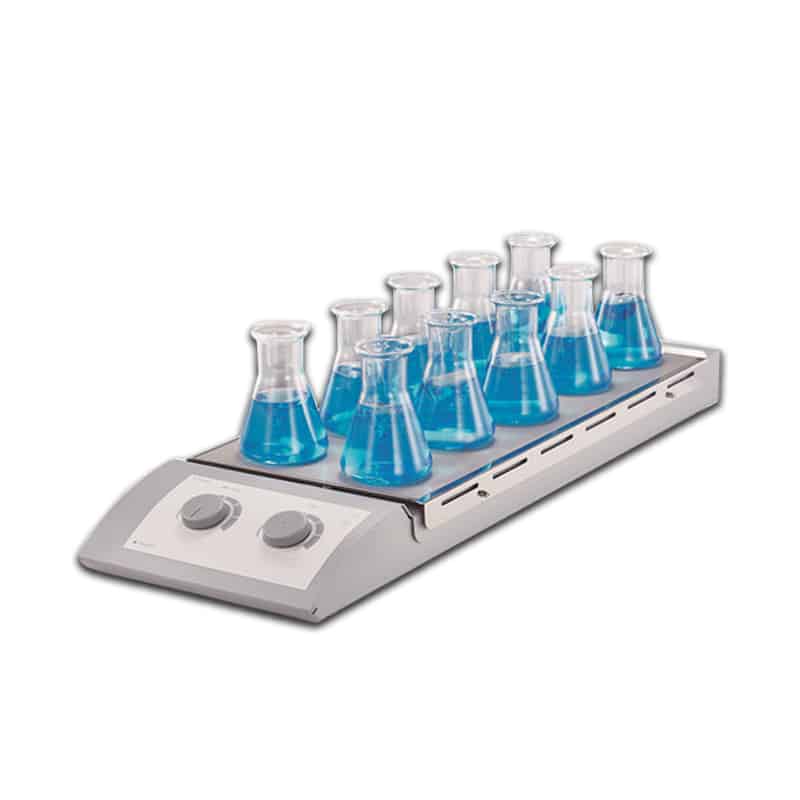

MS-M-S10
Key Features
• Maintenance-free brushless DC motor
• Speed range of 0-1100rpm
• Stainless steel work plate covered with silicone cushion, provides excellent performance of skid resistance
| Specifications | MS-H-S10 | MS-M-S10 |
|---|---|---|
| Work plate Dimension | 180x450mm | 180×450mm |
| Work plate material | Stainless steel with silicone | Stainless steel with silicone coating |
| Motor type | Brushless DC motor | Brushless DC motor |
| Motor rating input | 12W | 12W |
| Motor rating output | 4W | 4W |
| Power | 490W | 20W |
| Heating output | 470W | – |
| Voltage | 100-120/200-240V 50/60Hz | 100-120/200-240V,50/60Hz |
| Stirring positions | 10 | 10 |
| Max. stirring quantity[H2O] | 0.4Lx10 | 0.4LX10 |
| Max. magnetic bar[length] | 40mm | 40mm |
| Speed range | 0-1100rpm | 0-1100rpm |
| Speed display | scale | Scale |
| Temperature display | scale | – |
| Heating temperature range | Room temp.-120°C | – |
| Over heat Protection | 140°C | – |
| Temperature display accuracy | IP42 | IP21 |
| Dimension [W x D x H] | 182×622×65mm | 622×205×65mm |
| Weight | 3.2kg | 3.2kg |
| Permissible ambient temperature and humidity | 5-40℃ 80%RH | 5-40°C, 80%RH |
| Accessories | |||
|---|---|---|---|
| Cat. No. | P/N | Descriptions | |
| 18900006 | MSBAR10 | Stirrer bar(10mm x 6mm),1pc/pk | |
| 18900007 | MSBAR15 | Stirrer bar(15mm x 8mm),1pc/pk | |
| 18900008 | MSBAR20 | Stirrer bar(20mm x 8mm),1pc/pk | |
| 18900009 | MSBAR25 | Stirrer bar(25mm x 8mm),1pc/pk | |
| 12500005 | MSBAR30 | Stirrer bar(30mm x 6mm),1pc/pk | |
| 18900011 | MSBAR40 | Stirrer bar(40mm x 8mm),1pc/pk | |
