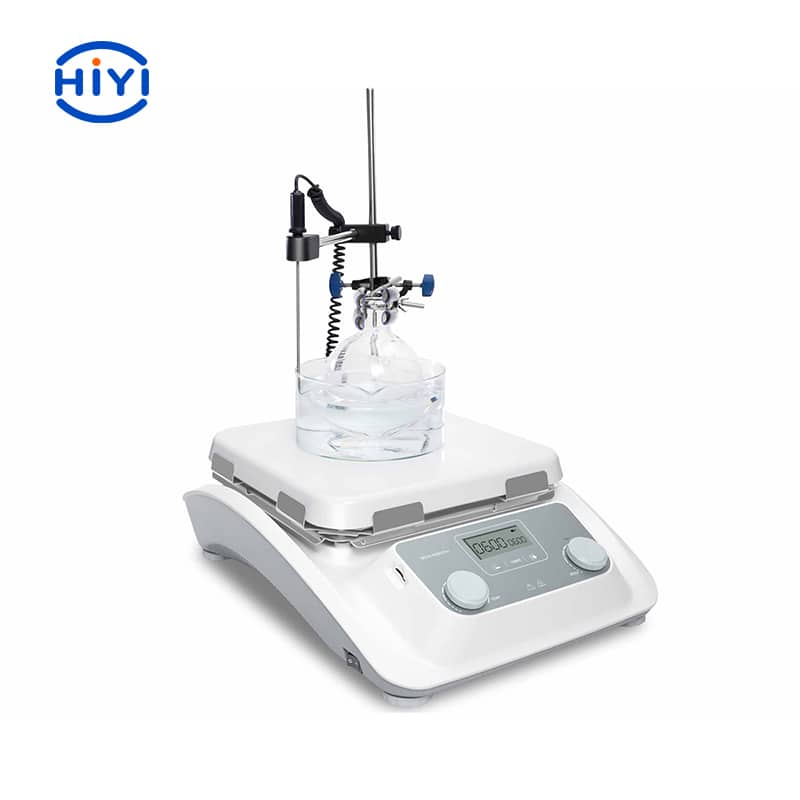

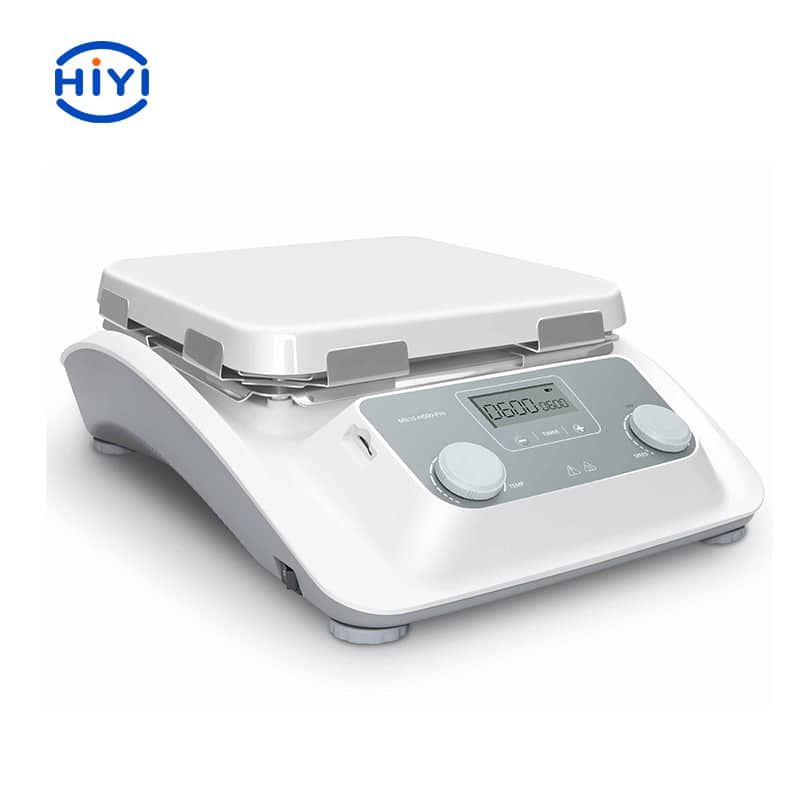

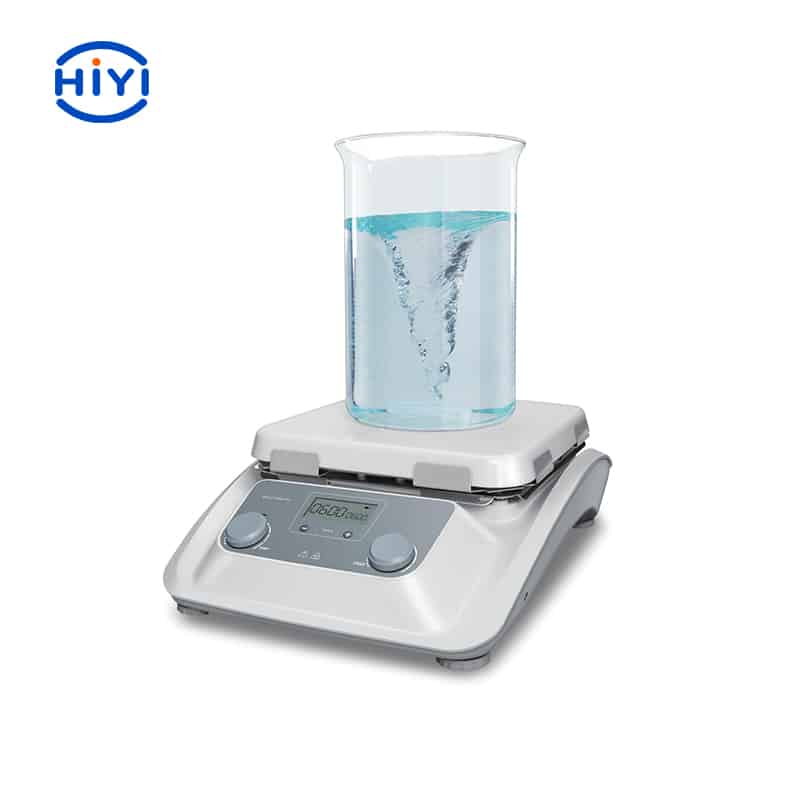

MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer

MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer

Features:

* Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
* Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
* LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C
* Digital speed control of 100 ~ 1500rpm
* Max. heating plate temperature 500℃
* The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
* Data connector : The SD card also records the instrument’s running data in real time.
* Timing function: the running time of the instrument can be set.

Application:

Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.

Work plate Dimension [W x D]	254x254mm（10inch）
Work plate material	Glass ceramic
Motor type	Brushless DC motor
Stirring positions	1
Max. stirring quantity, [H2O]	30L
Max. magnetic bar[length]	80mm
Speed range	100-1500rpm resolution±1rpm
Speed,time, Temperature display	LCD
Timer function	1min-99h59min
Heating temperature range	Room Temp.-500℃, increment1℃
Temperature control accuracy	±1℃ (<100℃)±1%(>100℃)
Overheating protection	540℃
Temperature display accuracy	±0.1℃
External temperature sensor	PT1000(±0.2℃)
“Hot” warning	50℃
Data connector	SD card
Protection class	IP21
Power	1400W
Heating output	1350W
Voltage Frequency	100-120/200-240V 50/60Hz
Dimension [WxDxH]	328x424x138mm
Weight	7.18kg
Permissible ambient temperature and humidity	5-40℃，80%RH
