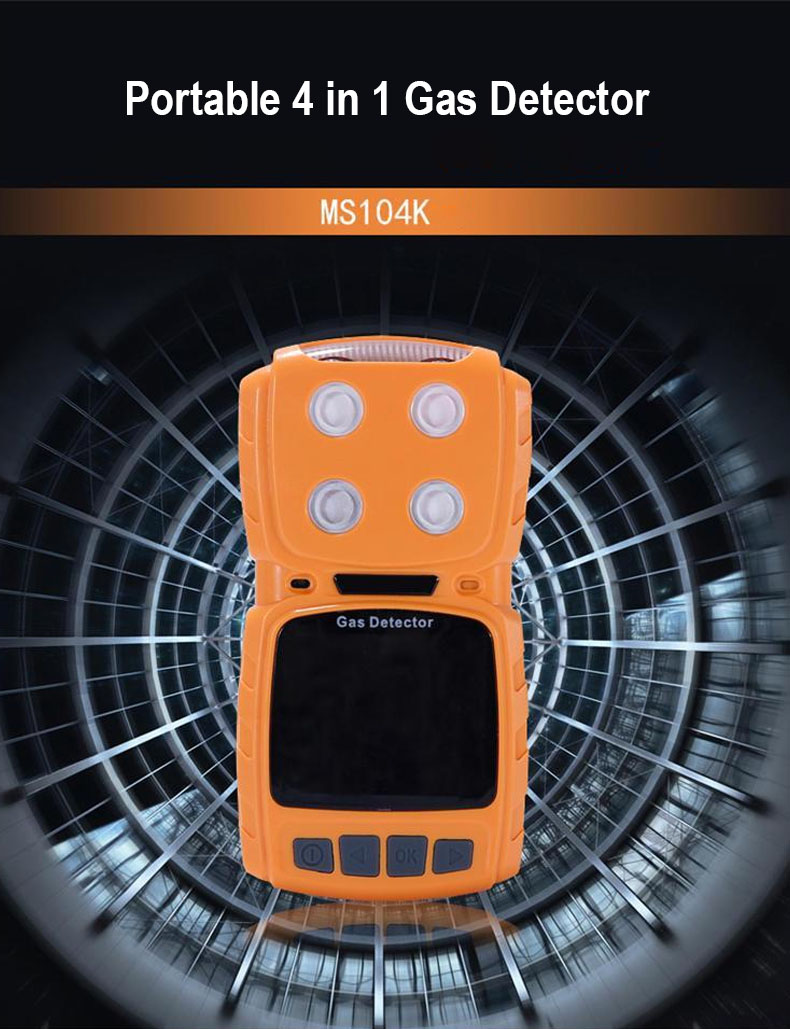

MS104K Portable Diffusion Type 4-in-1 Gas Analyzer
Simultaneous detection of 1-4 gases, record storage, three-stage calibration, three display modes: display multi-channel concentration, single-channel cyclic large font display, real-time curve.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Details
MS104K Portable Diffusion Gas Analyzer
Simultaneous detection of 1-4 gases, record storage, three-stage calibration, three display modes: display multi-channel concentration, single-channel cyclic large font display, real-time curve. 2.31″ HD color screen, simulation menu icons, switchable Chinese and English interface.
Protection class IP65, battery capacity 2200 mA, USB charging and communication , sound and light, vibration, visual alarm, weighted average alarm, secondary alarm can be set.
Storage capacity standard 100,000, more large capacity can be customized. Storage time interval can be set arbitrarily, the maximum value, minimum value display, timing measurement, units can be switched, adjustable alarm music and background color
Options: temperature and humidity measurement, stainless steel sampling handle or 1.2m retractable sampling handle, smoke high temperature sampling cooling filter handle, probe length 0.3m, can detect 400 degree gas, higher temperature gas detection can be customized
Tag: Diffusion type gas monitor, Four in one gas detector , Nitric oxide leak detector, Gas alarm detector, Hydrogen gas analyzer, Carbon monoxide detector, Methane leak monitor, OEM/ODM gas detector
Parameter
| Detection range | 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL,
20%, 50%, 100%Vol, can be selected; and other ranges can be customized. |
||||
| Detection principle | Electrochemical, catalytic combustion, infrared, thermal conductivity,
PID photoionization, and so on, depending on the type of gas, range, field environment and user demand. |
||||
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years
can be selected; infrared principle: 5 ~ 10 years; |
||||
| Allowable error | ≤±3% F.S (higher precision levels can be customized) | ||||
| Response time | T90≤30 seconds | ||||
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH | ||||
| Sample gas temperature | -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature
sampling and cooling filter handle will be possible to detect |
||||
| the smoke gas at the temperature of 400 ℃ or higher. | |||||
| Power supply | 3.7VDC, 3000mA high capacity rechargeable polymer battery | ||||
| Display mode | 2.31-inch high-definition color screen | ||||
| Data storage | Standard configuration is the data storage capacity for 100, 000 entries | ||||
| Protection level | IP65 | ||||
| Explosion-proof type | Intrinsically safe type | ||||
| Explosion-proof mark | Exia II CT4 Ga | ||||
| Exterior dimensions | 130×68×34mm (L×W×H) | ||||
| Weight | 200g | ||||
| Standard accessories | Manual, qualification certificate, warranty card, USB charger (including
the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case) |
||||
