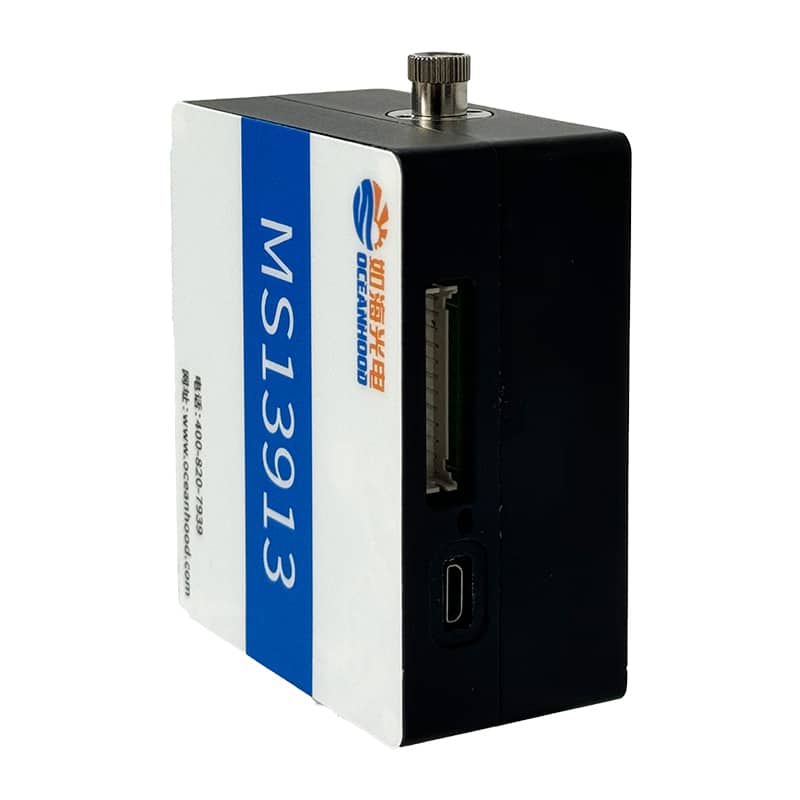

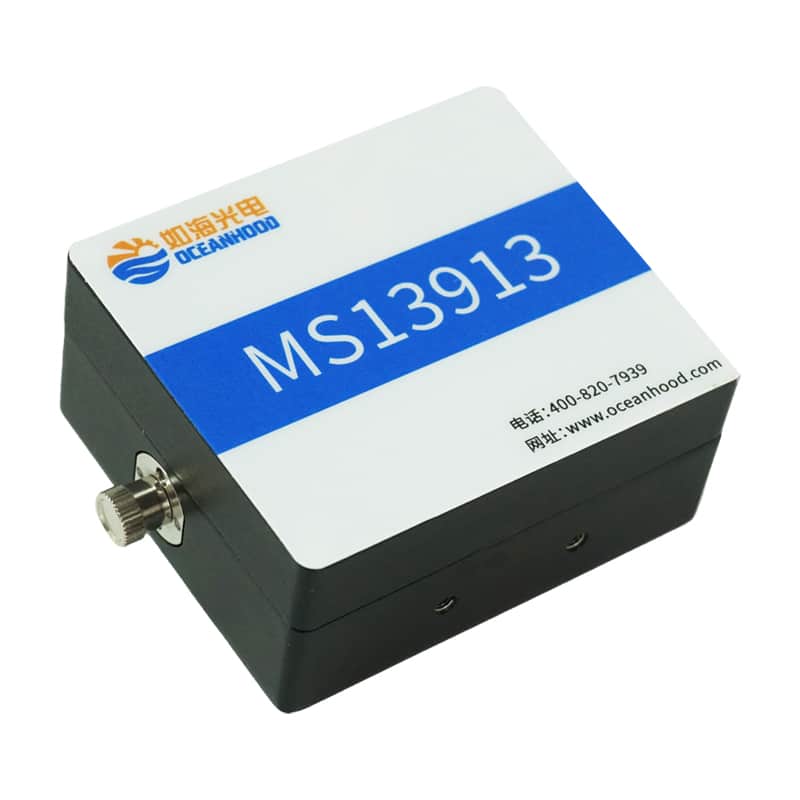

MS13913 Near-infrared optical fiber-optic spectrometer
1,520.00৳
Model :MS13913
Keyword :MS13913
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Introduction
The MS13913 is a miniature near-infrared fiber optic spectrometer with a compact design and configurable spectral range. It features low stray light (~1%) and offers excellent spectral response stability and repeatability. This device is suitable for various industrial on-site measurements, including laser measurement, plasma emission spectroscopy, color measurement, absorbance measurement, and Raman measurement.
Feature
◆ 1. Based on the traditional CT optical path design, the front focal length is 25mm and the rear focal length is 25mm
◆ 2. Small size, good reliability and repeatability
◆ 3. Key-SMA905 design, can be adapted to sea KF series multi-core fiber, fiber plug strength consistency of 7%.
◆ 4. Configure USB and serial communication interfaces, 24 PIN interactive interface, proprietary DAC and ADC, which can realize the enabling, intensity control and power feedback.
◆ 5.InGaSe detector, covering
Description
Optical parameters |
|
| Item | Value |
| Fiber interface | Key-SMA905 |
| Spectral Scope | 900-1700 nm |
| stray light | ~1% |
Functional parameters |
|
| Item | Value |
| AD sampling | 16 bit |
| Data interface | USB2.0、RS232 |
| Extended function interface | 24PIN |
| Detector integration time | 100 µs-5 s |
| CCD dark noise 1 | ≦30 |
| Signal-to-noise ratio | 1000：1 |
| Response linearity 2 | ≥98% |
Other parameters |
|
| Item | Value |
| Weight | ~295 g |
| Size | 72×55×28.5 mm |
| Operating temperature | 0-40℃ |
| Working humidity | 20-85% |
