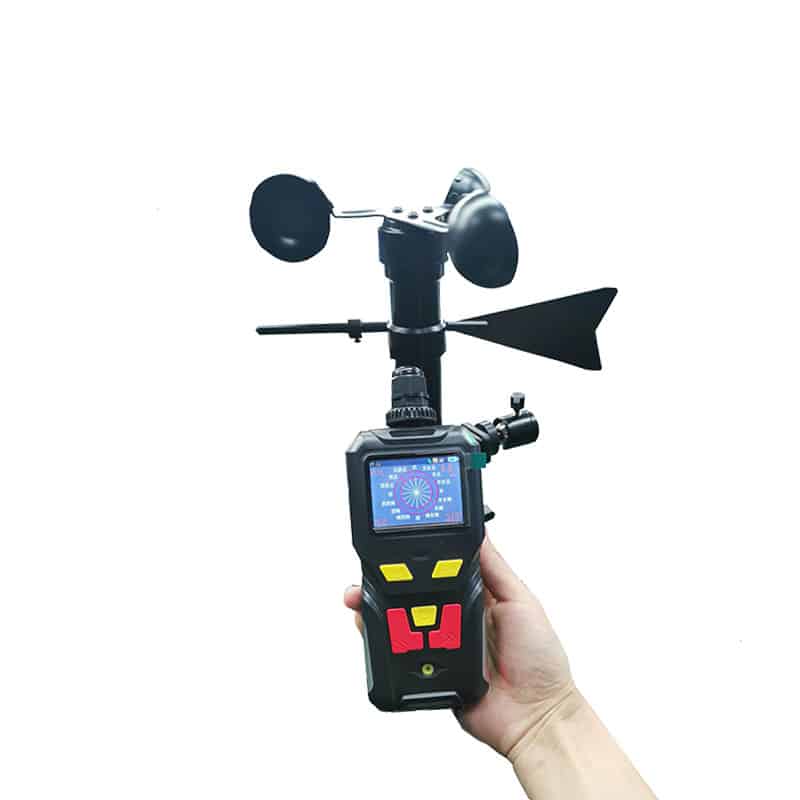

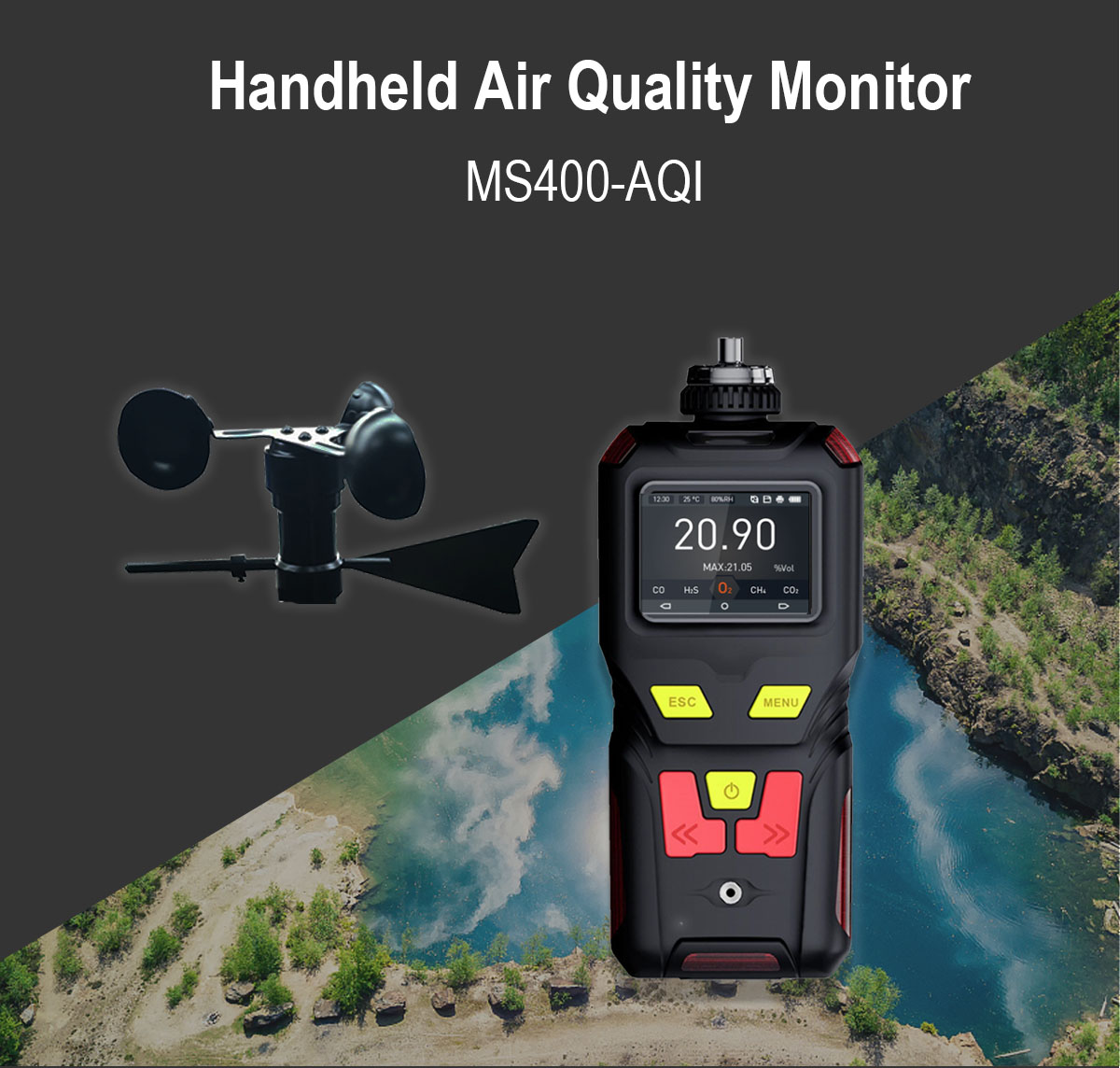

MS400-AQI Handheld Air Quality Monitor

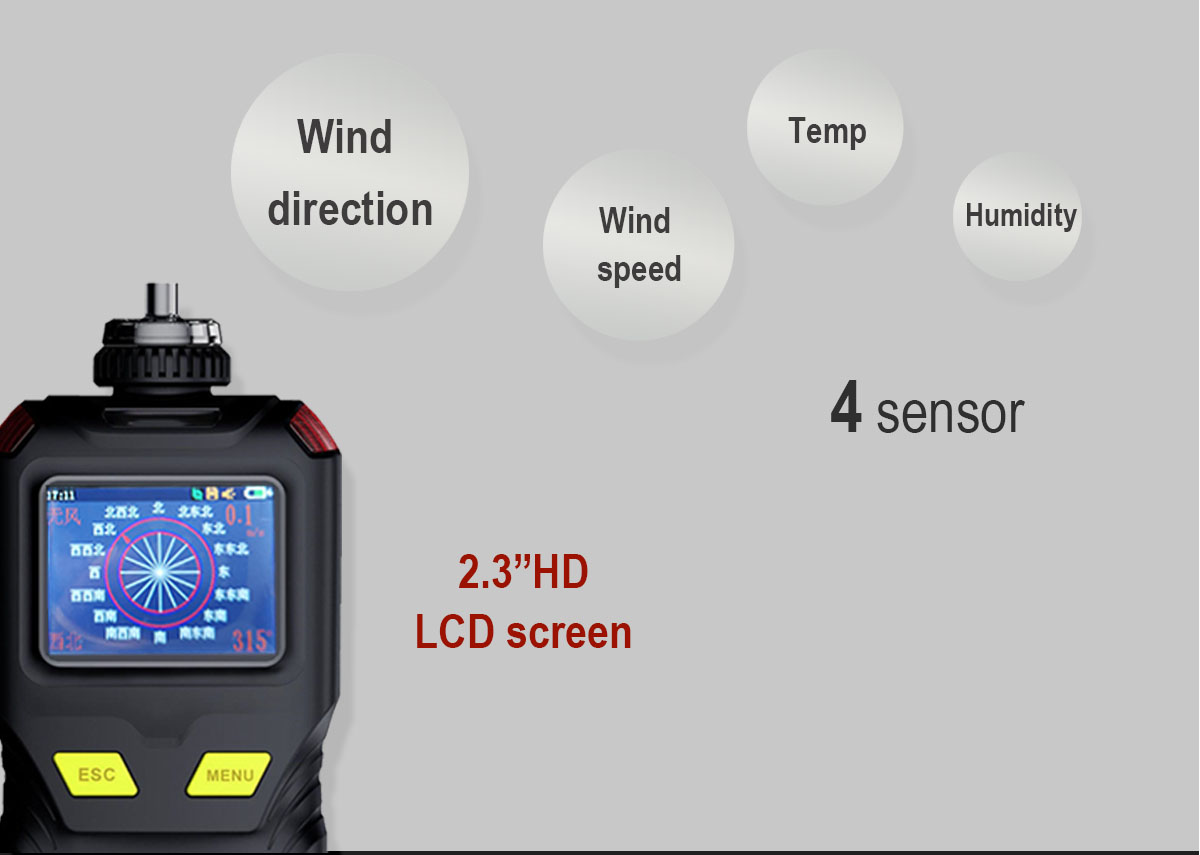

MS400-AQI contains wind direction, wind speed, temperature and humidity sensors.* Adopted advanced electric circuit design.

* Mature kernel algorithm processing.

* Unique external appearance design, simple operation and convenient to carry.

* Had achieved a number of patents about the software works, external appearance, and so on.

* Continuously monitoring and displaying concentrations of up to 4 sensors.

Tag: Air Quality Monitor、Portable wind direction monitor、Handheld type air tester、Wind speed、 Temperature monitoring、Air Monitor with Humidity sensors、OEM/ODM services.

Parameter

Technical Parameter
Wind Speed
Speed	0-60m/s
Monitoring Principle	Hall Principle
Precision	±(0.3±0.03V) m/s
Distinguishing Rate	0.3 m/S
Starting Threshold Of Wind Velocity	≤0.6m/s
Wind Direction
Measuring Range	0-360°
Directions	16 ditections
Monitoring Principle	Hall Principle
Precision	±3°
Resolution	0.1°
Starting Threshold Of Wind Velocity	≤0.8m/s
Response Time	＜1S
Supply Voltage	DC12V-DC24V
Power Consumption	≤200mW
Ambient Temperature	-20-80℃
Working Humidity	0-100 %RH
Others

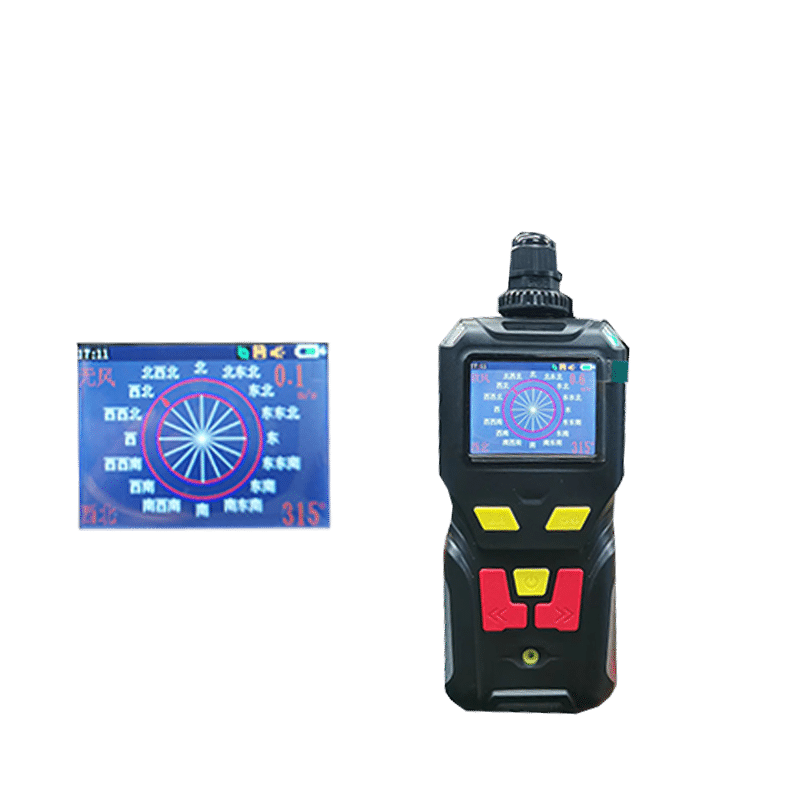

Display	2.31 inch color display
Battery	DC3, 4500mA rechargeable battery
Housing	Rubber Enclosure
Size	160x70x28mm
Weight	300g
EX grade	Ex ia IIC T6 Ga
Protection Level	IP65

Application

Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
