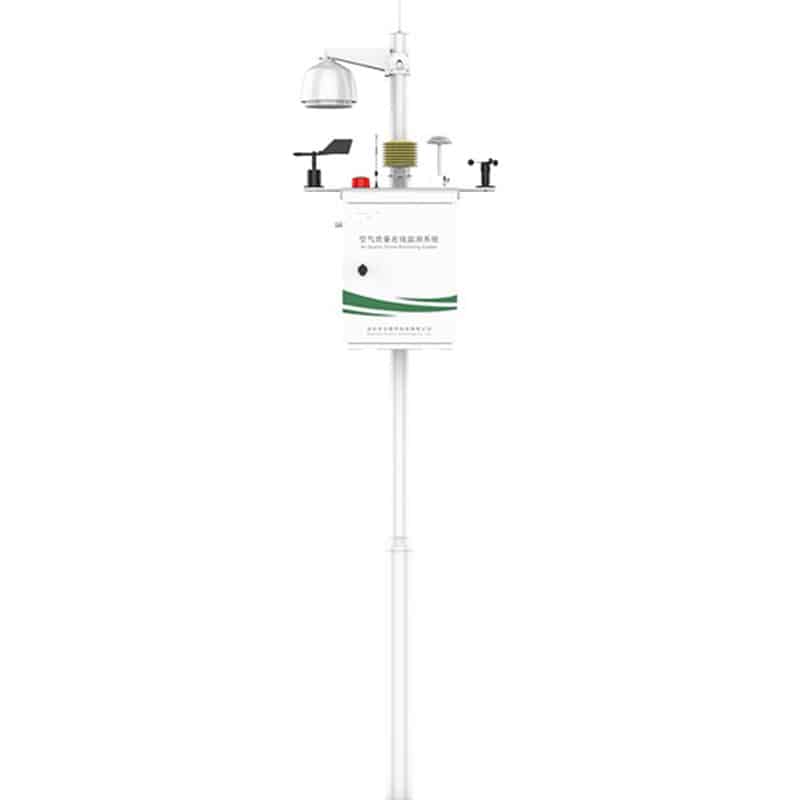

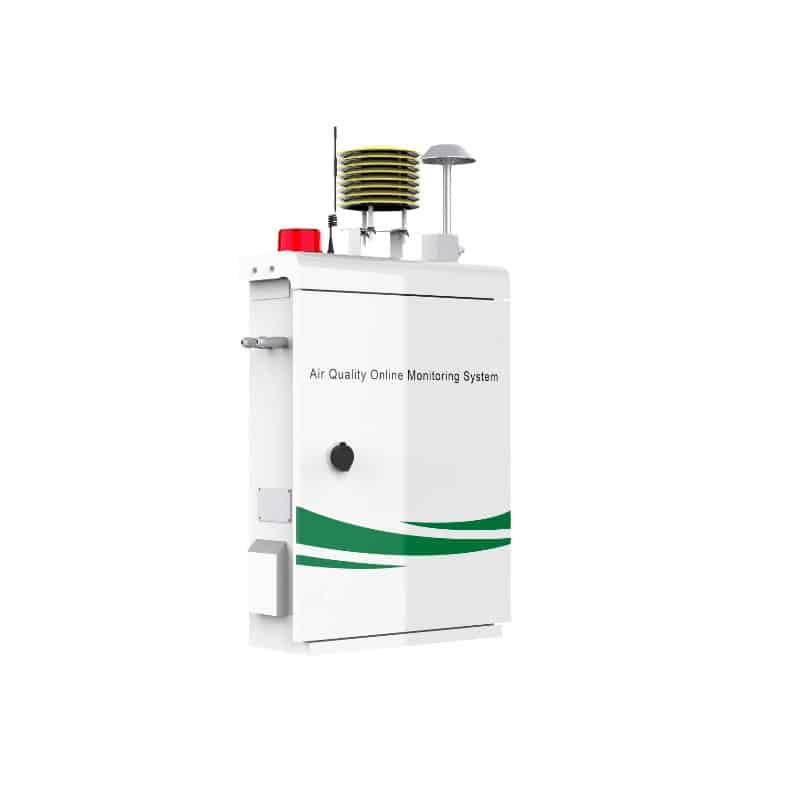

MS800A Air Quality Monitoring Station
1,000.00৳

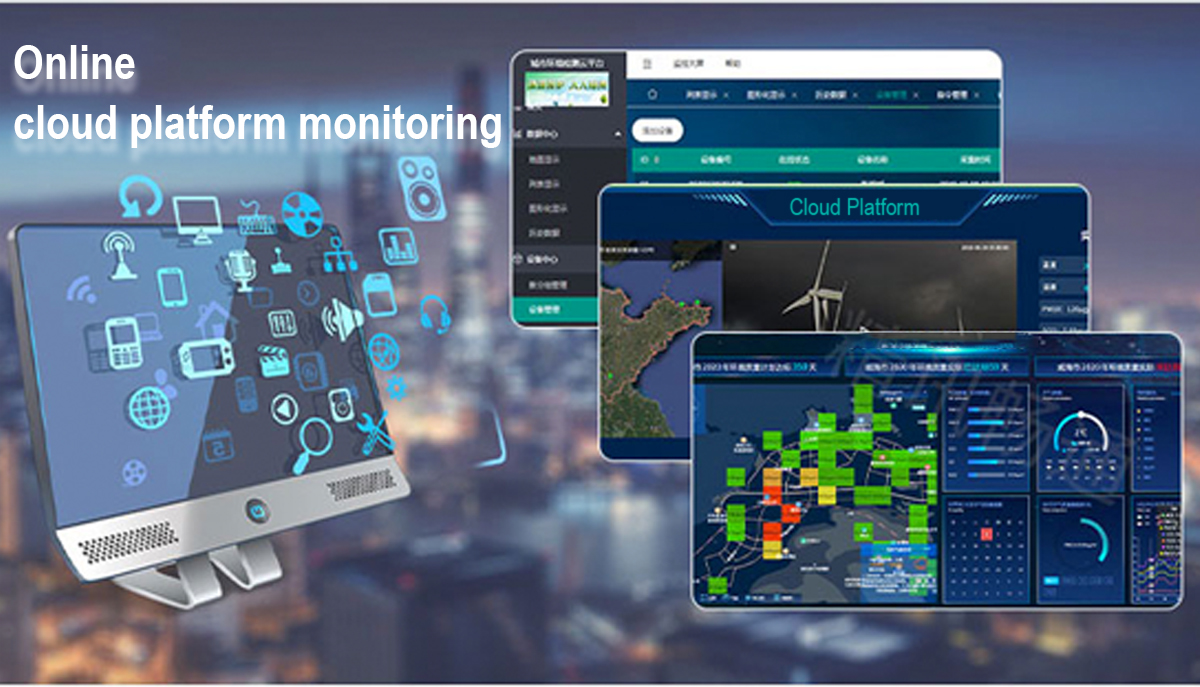

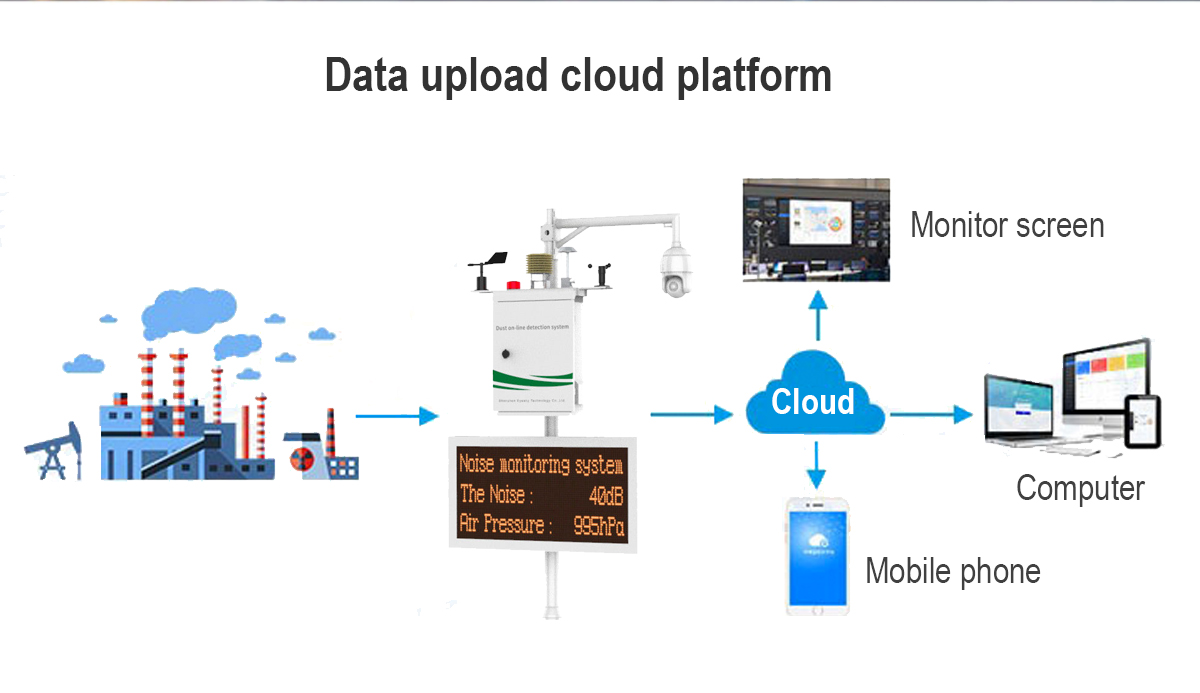

MS800A Air Quality Monitoring Station, data upload cloud platform, real-time early warning, modular design, free parameter selection, online monitoring PM10, pm2.5, Co, SO2, NO2, O3, TVOC, TSP, etc. We provide gas detector OEM/ODM serves.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Details

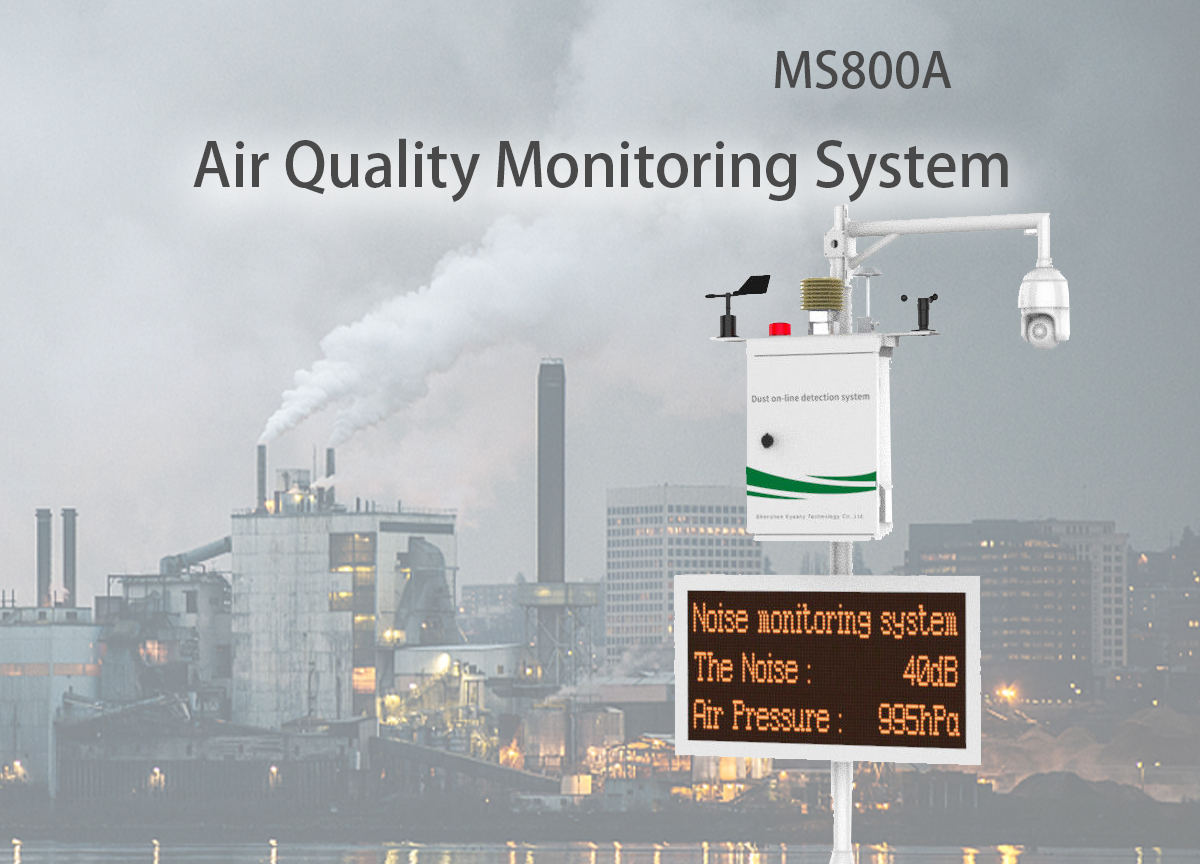

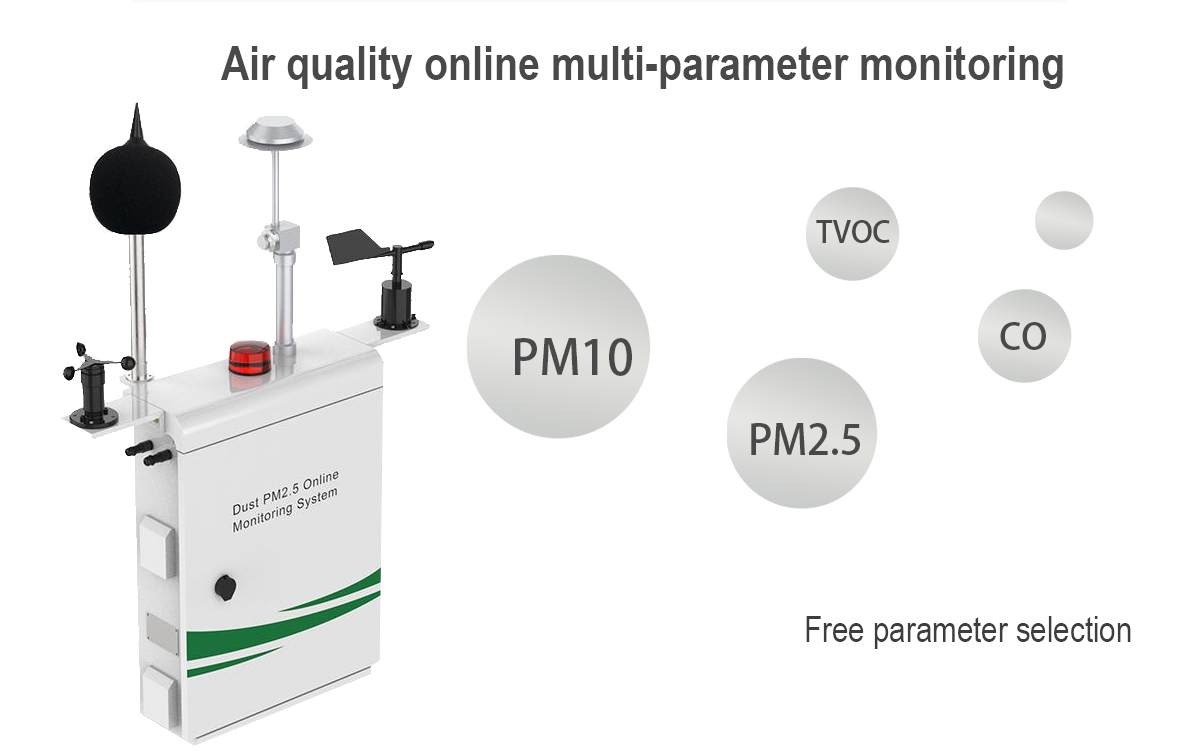

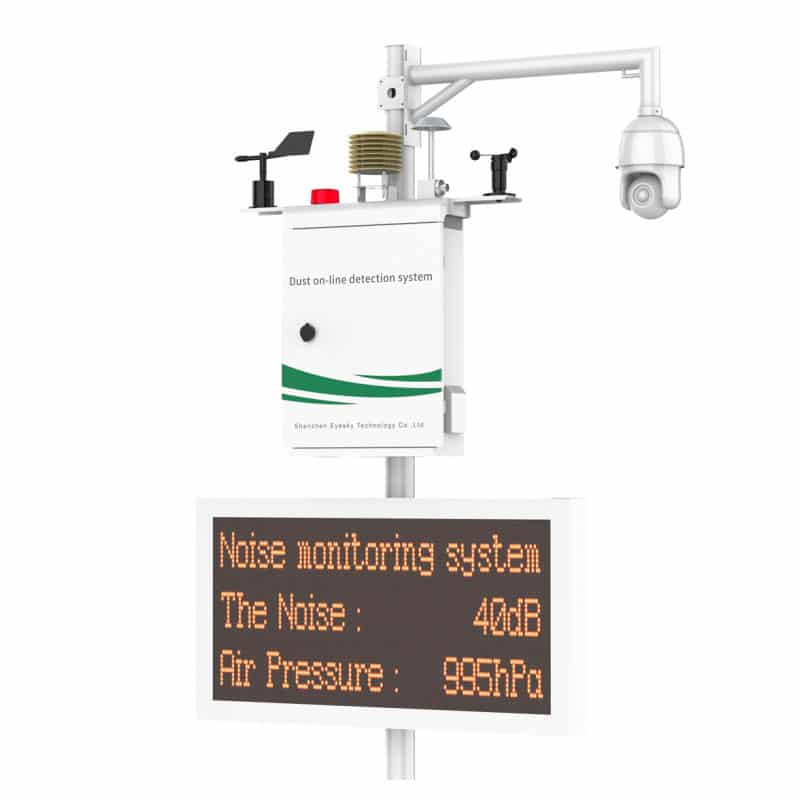

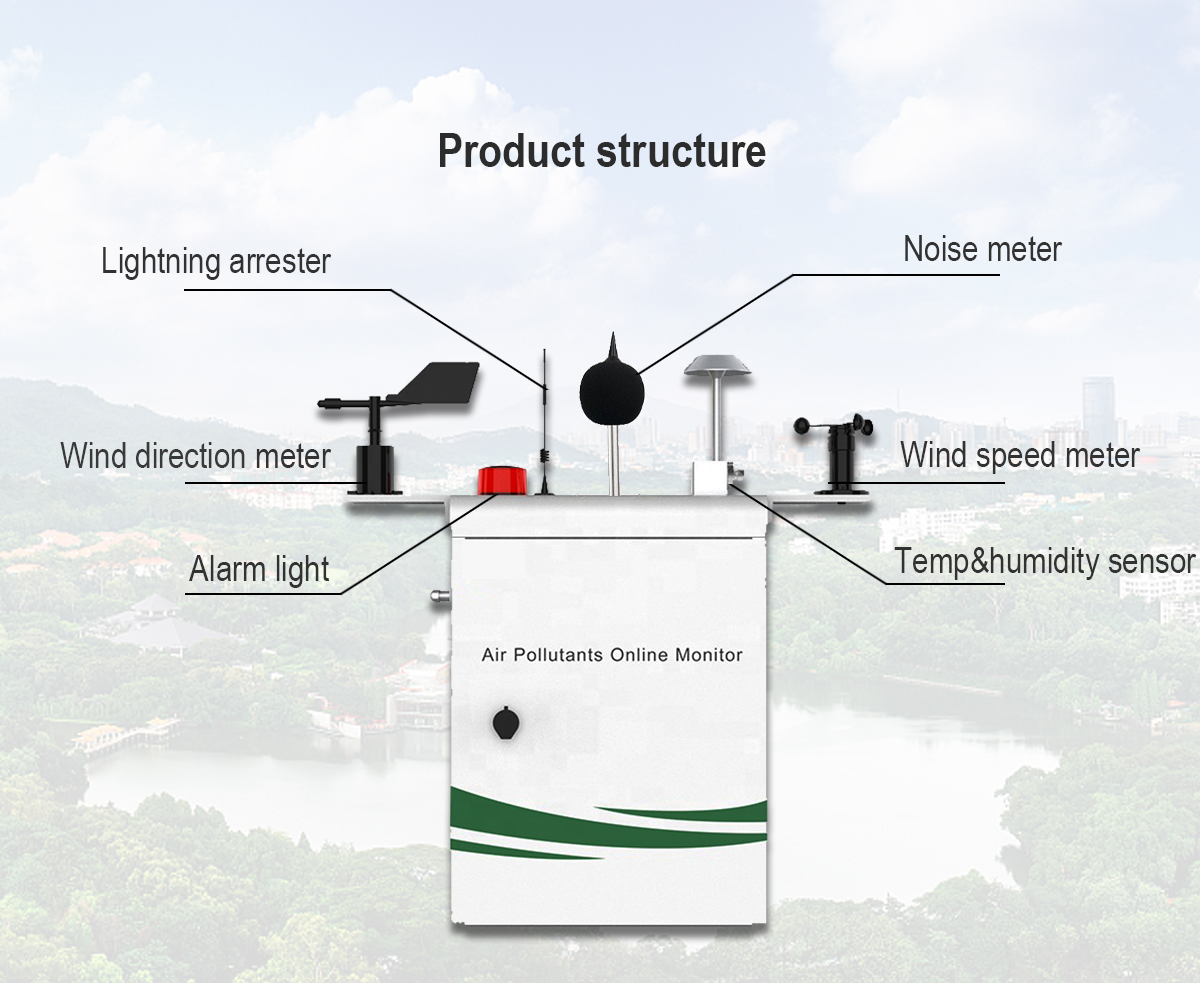

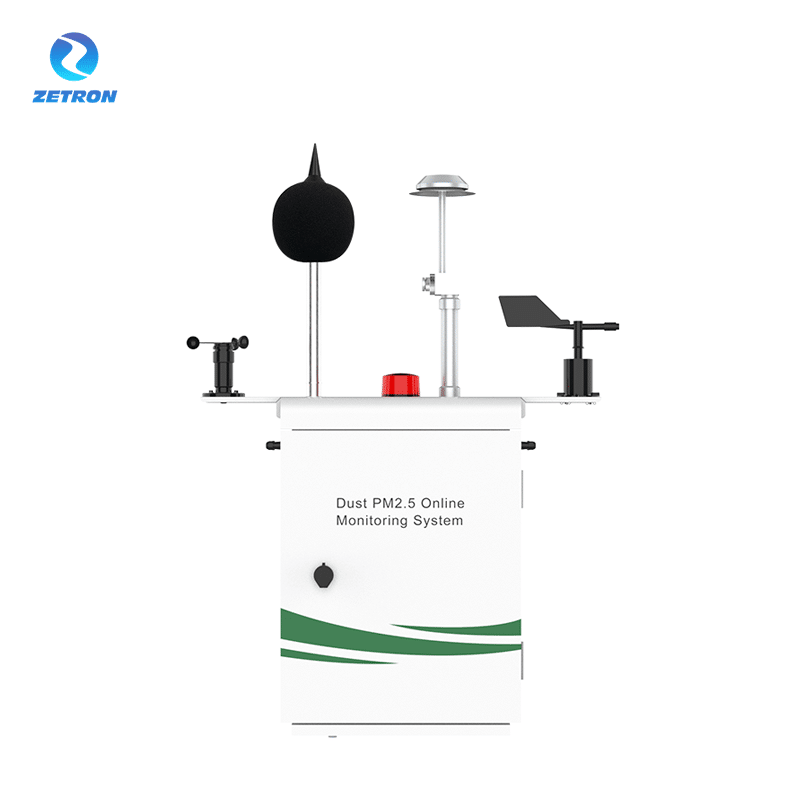

MS800A Air Quality Monitoring Station, data upload cloud platform, real-time early warning, modular design, free parameter selection, online monitoring PM10, pm2.5, Co, SO2, NO2, O3, TVOC, TSP, etc. MS800A is our new air quality online multi-parameter monitoring system, the main monitoring gas type include: PM2.5, PM10, CO, SO2, NO2, O3, TVOC, temperature and humidity, wind speed and direction , noise and atmospheric pressure. Outdoor LED screen, real-time display of monitoring data ,with solar power to provide real-time uninterrupted monitoring data. It could be used in a variety of environments, industrial production environment monitoring, tunnel traffic environment monitoring, and urban environmental monitoring. The atmospheric environmental data monitoring and analysis system can improve the processing and management of air pollution monitoring data, and provide decision-making basis for environmental planning and environmental assessment.
| Parameter | Range | Unit | Precision | Resolution | Configuration | Life-time |
| PM2.5 | 0-1000 | ug/m3 | 5% | 1 ug/m3 | Standard | 2 |
| PM10 | 0-2000 | ug/m3 | 5% | 1 ug/m3 | Standard | 2 |
| CO | 0-50 | ppm | 1% | 0.02ppm | Standard | 2 |
| SO2 | 0-500 | ppb | 1% | 3ppb | Standard | 2 |
| NO2 | 0-500 | ppb | 1% | 3ppb | Standard | 2 |
| O3 | 0-500 | ppb | 1% | 3ppb | Standard | 2 |
| Temperature | -80 | ℃ | 2% | 0.1℃ | Standard | 2 |
| Humidity | 0-100 | %RH | 0.30% | 1% | Standard | 2 |
| VOC | 0-20 | ppm | 1% | 20ppb | Optional | 2 |
Tag: Air quality monitoring station 、Online monitoring system、Weather station、Outdoor air quality station system、Emission monitoring、Air pollutants online system、OEM/ODM air quality monitoring station
Parameter
|
Data Efficient Transmission Rate
|
≥95%
|
|
Remote Control
|
Support for remote setting
|
|
Interface
|
RS485/RS232 port, Network port
|
|
Transmission Network
|
Automatically and real-time upload data, optional 4G/ GPRS/WIFI
|
|
Box Material
|
Q235 spray, Stainless box optional
|
|
Scaffold Material
|
Q235
|
|
Scaffold Height
|
Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m)
|
|
Lightning Arrester
|
Length 1m, Q235 Galvanized material
|
|
Working Environment
|
Temperature: -30~70℃ Humidity: 10%RH~90%RH Pressure: 65~108Kpa
|
|
Protection Grade
|
IP65
|
|
Power Supply
|
AC220V/50Hz/Solar power (optional)
|
Application
- Traffic environmental pollution control;
- Emission monitoring of particulate matter and pollution sources;
- Environmental monitoring of residential areas, schools, and hospitals;
- Chemical plant, port, sewage treatment plant, power plant, landfill, incineration station, storage facilities, underground facilities, etc.
