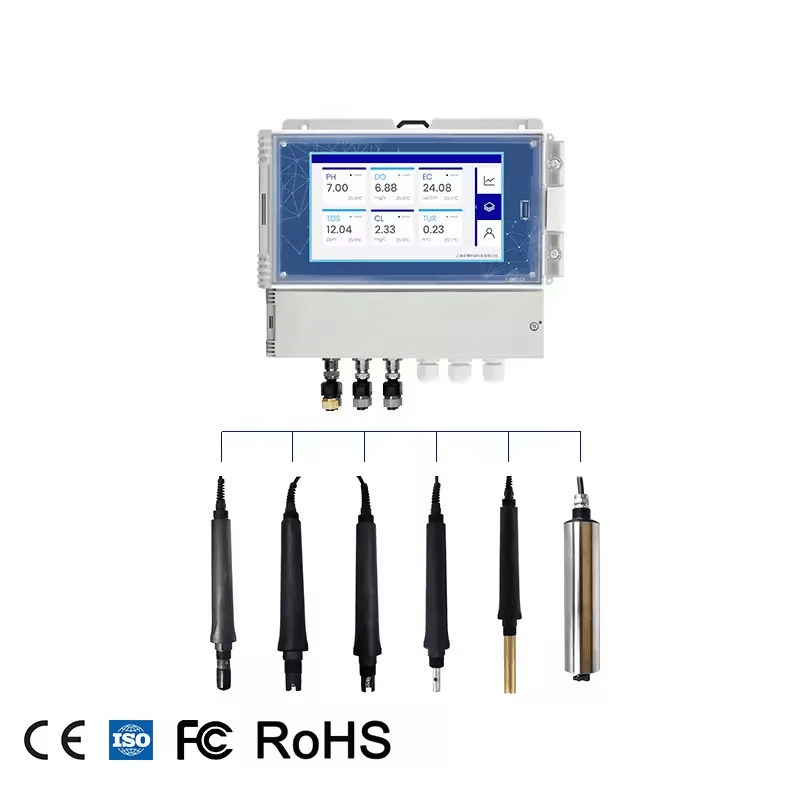

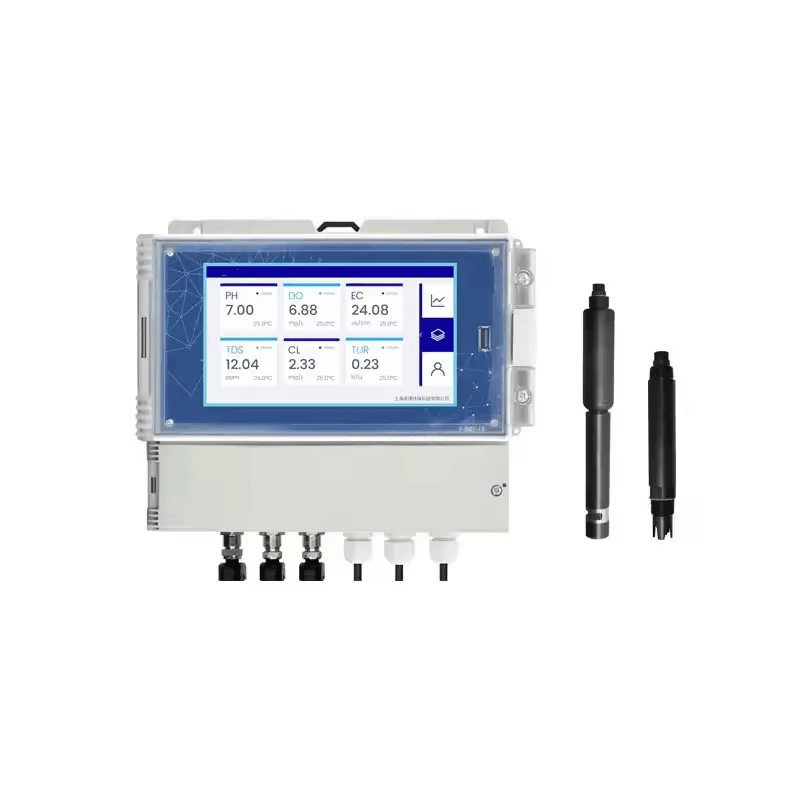

Multi-parameter IoT smart water purifier purity monitoring Cod sensor probe water quality monitoring

Atech color LCD display multi-parameter is widely used in environmental protection, wastewater treatment, cultivation, food processing, printing, metallurgy, pharmaceutical, fermentation, chemical industry and tap water. It is designed for continuous detection of multiple parameters in liquids.

*Parameters can be customized freely

Measurement parameters
Temperature, PH, ORP, conductivity, TDS, salinity, dissolved oxygen, residual
Chlorine, dissolved ozone, turbidity, TSS, sludge concentration, hardness, ions

Concentration, resistivity

Combination method
Max 6 parameters can be freely combined, or 1 parameter for multiple channels.
Each parameter can be measured separately for temperature
[Only sensors with temperature]

Example
1. PH, ORP, conductivity, dissolved oxygen, residual chlorine, turbidity
2. pH, dissolved oxygen, residual chlorine, turbidity
3. Conductivity, dissolved oxygen, residual chlorine
4. Residual chlorine, ozone

• Power supply: AC220V
• Size: 223mm*200mm
• Weight: 1.51 kg
• Installation method: wall-mounted
• Working conditions: 0-60 ° C
• Protection level: IP65
• Input interface: 6-channel RS485 aviation interface with 12v power supply.
• Total power capacity: 1A
• Analog output: 2 channels 4 20mA output Single channel load capacity: 750Q
• Relay control: 6-channel relay, each relay has no, NC and COM ports, load single channel capacity: 3A
• Digital output: 2 channels RS485 supporting Modbus -RTU protocol
• Display: 7.0-inch LCD, resolution 800*480, 24-bit color depth, capacitive touch
• Sensor tests such as testing, cllbration, temperature regulation, etc. can be completed.
• Free combination of sensors to meet different water monitoring requirements , B GUI interface, multiple parameters are displayed simultaneously, and the interface layout can be automatically adjusted according to the number of channels
• It has data storage, reading, and export functions, supports TF cards (up to 32G), and can set the storage period
• Support Chinese and English, password protection, statistical curve
