Multi parameter water quality tester

Equipment Introduction:

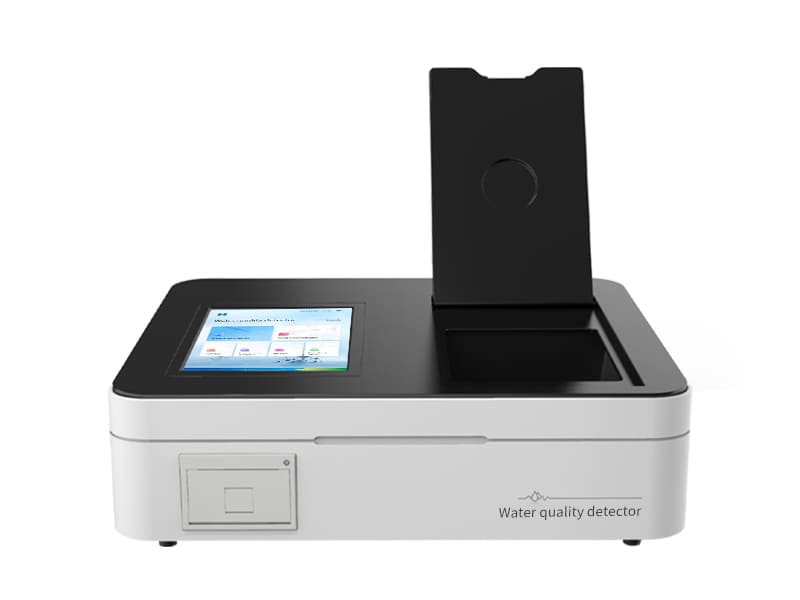

The HM-T100 series intelligent multi parameter water quality analyzer is an independently developed product by Shandong Hengmei Electronic Technology Co., Ltd. It is designed and manufactured in full accordance with the new national regulations “Rapid Digestion Spectroscopy (HJ/T399-2007)” and is suitable for many detection standards at home and abroad.

Mainly detecting COD, ammonia nitrogen, total phosphorus, total nitrogen, phosphate, nitrate nitrogen, total copper, copper, chromium, total chromium, zinc, total zinc, ferrous, nickel, total nickel, manganese, total manganese, silicon dioxide, total chlorine, residual chlorine, cadmium, lead, titanium, vanadium, silver, aluminum, boron, arsenic, tin, beryllium, barium, antimony, mercury, cobalt, permanganate, sulfate, fluoride, sulfide, cyanide, total cyanide, volatile phenols, aniline, formaldehyde, methanol, suspended solids, hydrogen peroxide, turbidity, chromaticity, suspended solids, dissolved oxygen, urea, cyanuric acid, nitrite. Ozone, pH, chlorine dioxide and other indicators, equipped with intelligent data analysis functions, display data in charts and lists, and the analysis is clear at a glance; High definition color LCD touch screen, Android intelligent operating system, Chinese display interface, Chinese and English keyboard, user-friendly operation, and easier to use.

Widely applicable:

It can be widely applied to the detection of wastewater in various industries (industrial wastewater, urban sewage, domestic sewage, and surface water in rivers and lakes), and can meet the various needs of different users. It can be used for monitoring industrial wastewater and various domestic sewage in chemical, petroleum, coking, papermaking, metallurgy, brewing, medicine, and other industries.

Functional features:

1. Adopting a brand new Android 7.1.1 intelligent system, with a user-friendly Chinese operating interface, it runs faster and has stronger stability.

2. 8-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. By adopting a precise colorimetric cell design and using consistent light sources, the problem of detection result errors caused by light source errors can be solved, resulting in more accurate detection results.

4. The light source adopts imported ultra-high brightness light-emitting diodes, and the brightness of the light source can be automatically adjusted and calibrated.

5. Supports color comparison for 10mm, 30mm, and 50mm dishes φ 16mm tube colorimetric method with multiple options to ensure measurement accuracy;

6. Equipped with wireless communication function, supporting WIFI, RJ45, and mobile hotspot network transmission, and detection data can also be exported through a USB flash drive;

7. Multi functional sample management, capable of naming samples in both Chinese and English, facilitating sample recording and data storage;

8. The instrument can store 8 million sets of data, and for the convenience of searching for large amounts of data, it can be retrieved through time and analyzed at will;

9. Supports HDMI output, facilitating user training, explanation, and large screen display.

10. The instrument is equipped with a supervision cloud platform, and the data can be uploaded through the LAN and the Internet, and can also be docked and uploaded to the platform of the environmental supervision department.

11. Equipped with a built-in thermal line printer, the content on the printed paper can be freely selected (including QR code printing);

12. AC 220V, optional with 6Ah large capacity rechargeable lithium battery, convenient for outdoor flow testing;

13. The firmware of the later product can be upgraded.

Technical parameters:

Wavelength configuration: 420nm, 470nm, 520nm, 560nm, 620nm, 700nm;

Indication error: ≤ ± 5%;

Instrument stability: ＜ 0.5%;

Instrument repeatability: ＜ 0.5%;

Photochemical stability: numerical drift within 20 minutes ≤ 0.002A (100000 hour lifespan);

Physical parameters

Color comparison method: Color comparison tube (16mm digestion color comparison integrated tube), color comparison dish (10mm, 30mm, 50mm);

Operating System: Android 7.1.1 Intelligent Operating System

Operation interface: Chinese or English operation interface;

Display screen: 8-inch (1024 * 768 resolution) high-definition color LCD touch screen;

Number of curves: 820 standard curves, 420 fitted curves

Network interfaces: USB2.0, HDMI, WiFi, Bluetooth, hotspot, RJ45;

Cloud platform: The instrument is equipped with a supervision platform, connected to wired/wireless networks, and the detection results are directly transmitted to the environmental security supervision platform.

Printer: Thermal line printer;

Data storage: 8 million sets, can be freely accessed and viewed;

Data export format: Excel spreadsheet;

Instrument size: (367 * 243 * 125) mm;

Instrument weight: 2.1kg;

Environment and working parameters

Environmental temperature: (5-40) ℃;

Environmental humidity: Relative humidity<85% (non condensing);

Rated power: 10W

Working power supply: AC220V ± 10%/50Hz;

Configurable: large capacity lithium battery
