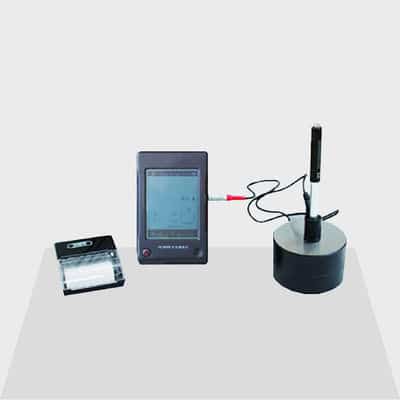

Multifunctional Leeb Hardness Test Equipment HLN200 170-960 HLD
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | HLN200 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Leeb Hardness Tester | Standard: | GB/T 17394.1 -2014 |
|---|---|---|---|
| Measuring Range: | 170～960 HLD | Measuring Accuracy: | +/- 4 HLD |
| Hardness Repeatability: | +/- 4 HLD | Testing Direction: | Arbitrary |
| High Light: |
Leeb Hardness Test Equipment, Multifunctional Hardness Test Equipment, HLN200 Leeb Hardness Tester |
||
Model HLN200 Multifunctional Leeb Hardness Tester With Testing Range 170～960 HLD
Model Hln200 Multifunctional Leeb Hardness Tester
Application:
It is used to determine the Leeb hardness of ferrous and non-ferrous metal precisely.
Standard:
GB/T 17394.1 -2014 Metallic materials – Leeb hardness test – Part 1: test method
JB/T 9387-2001 Leeb hardness testers
Parameters:
| Item | Name | Details |
| 1 | Measuring range | 170～960 HLD |
| 2 | Testing direction | arbitrary |
| 3 | Hardness conversion | HRC, HRB, HB, HV, HSD & tensile strength |
| 4 | Measuring accuracy | +/- 4 HLD |
| 5 | Hardness repeatability | +/- 4 HLD |
| 6 | LCD display | 3.9″ LCD, 240 x 320 pixels resolution (touch screen) |
| 7 | Data storage | 800 groups |
| 8 | Working voltage | 3.7V (lithium rechargeable battery) |
| 9 | Working time | 4-8 hours |
| 10 | Working temperature | 0 °C～+50°C |
| 11 | Charging power | DC 5.5V/1A |
| 12 | Dimension | 180 x 90 x 30mm |
| 13 | Weight | 350g (including impact device) |
Features:
1. For testing on large and heavy workpieces or installed permanent parts
2. For testing in narrow and small spaces where it is not easy to test for bench type hardness testers
3. Menu operation, easy and convenient, large LCD display
4. Automatic hardness conversion
5. Automatic recognition for the type of impact device
6. Attached printer can be used to print out testing result
7. Automatic detecting the impacting direction
Standard accessories
Heatsensitive mini-printer: 1 pc.
D type impact device: 1 pc.
Small support ring: 1 pc.
Leeb standardized block: 1 pc.
Charger: 1 pc.(For both main machine and printer)
Nylon brush: 1 pc.
