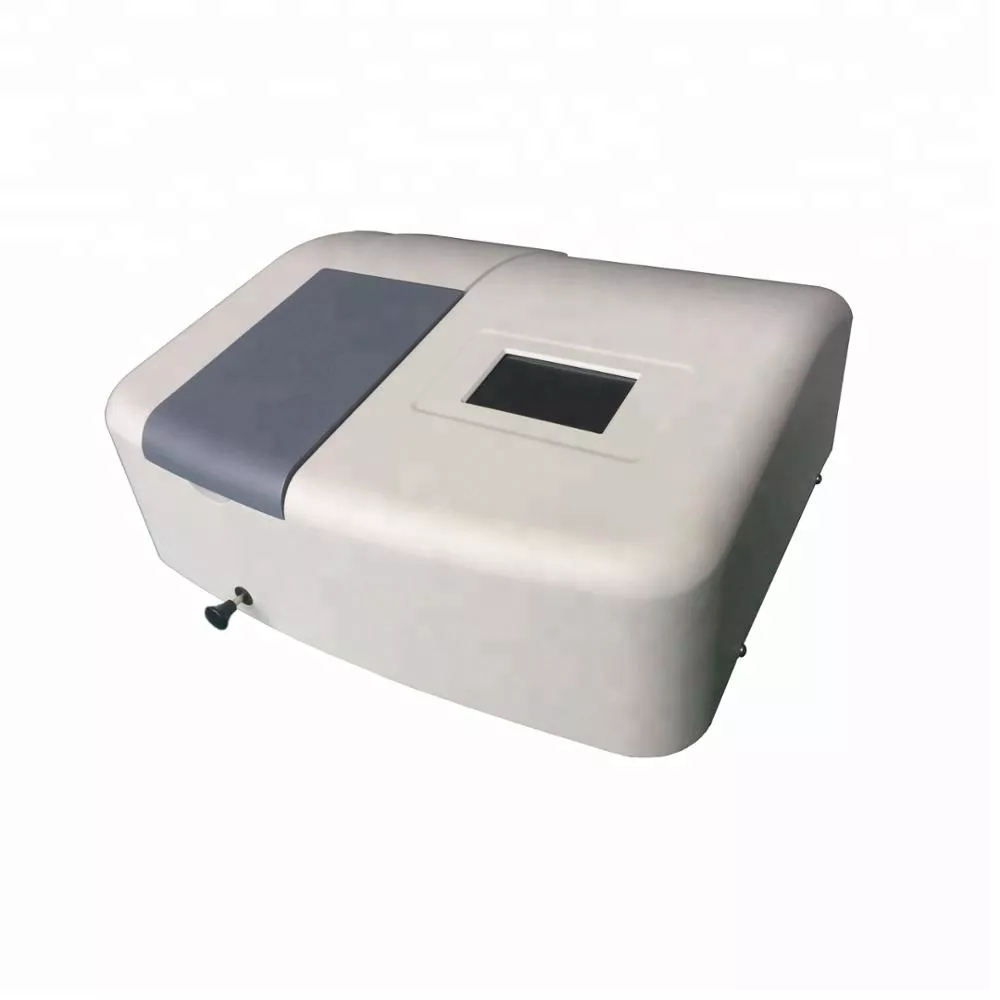

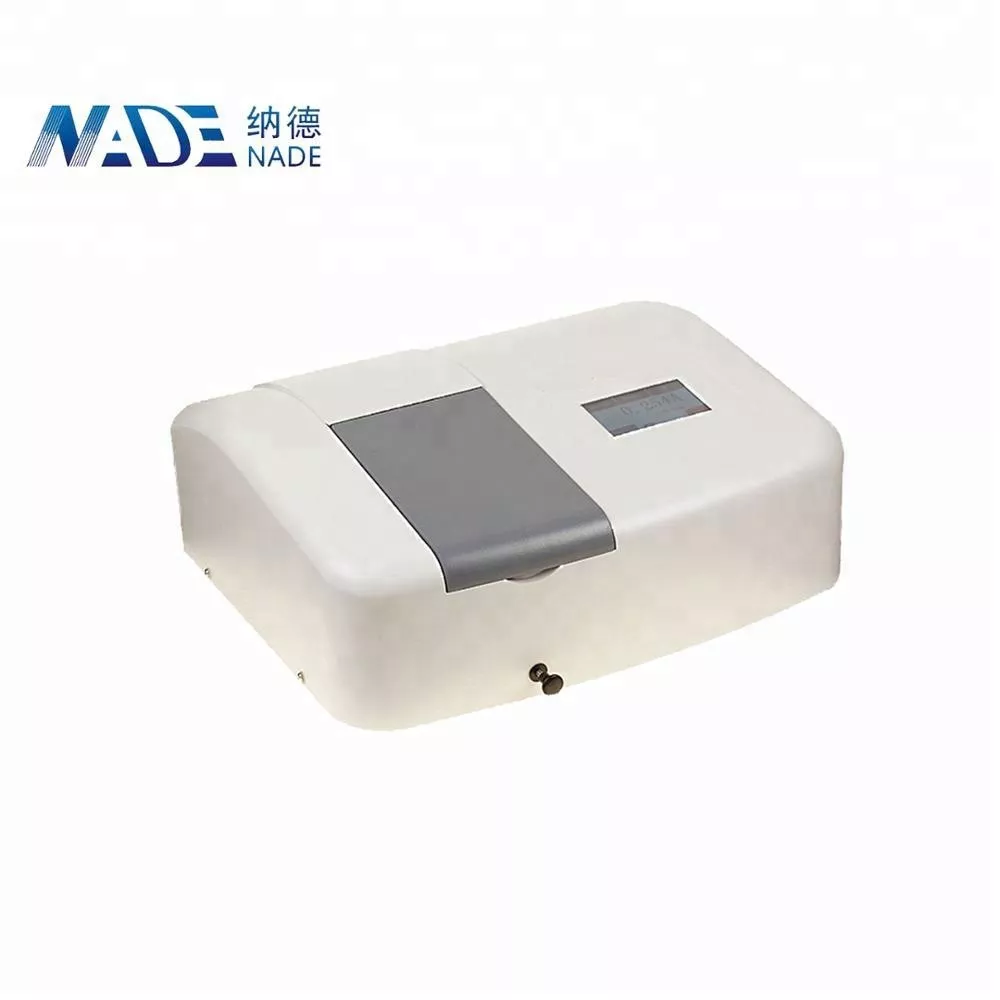

NADE 190~1100nm UV VIS Spectrophotometer 754
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Product Description
Measurement of quantities of some certain material in both visible and ultraviolet region. It could be applied vary among different field, such as factories, schools, metallurgy, agricultural, food industry, biochemistry, environmental protection, petrochemical industry, medical and health and scientific research institutes or labs.
1.Automatic wavelength, wavelength setting and conversion more quickly and precisely.
2.4.3 inches touch screen, display more sharply and operated more conveniently.
3.Parameters of 50 curves are able to be saved and 200 testing results could be saved at one time. Concentration factors can be setup and read directly.
4.System clock management, dark current correction, wavelength correction, USB interface port.
5.Dark current calibration / wavelength calibration/system clock management
6.Humanized user interface: Application of Metro color scheme, using the green color, the eye won’t tired long for long time work.
Model
|
754
|
Optical System
|
Single beam, C-T type, 1200 lines/mm grating
|
Detector
|
Silicon photo diode
|
Display
|
4.3 inches touch screen, LCD
|
Light source
|
Tungsten lamp (20W / 12V), Deuterium lamp, Set switch wavelength of light
|
Spectral Bandwidth
|
4nm
|
Wavelength Range
|
190~1100nm (step interval 0.1nm)
|
Wavelength Accuracy
|
±1.0nm ( Auto-calibration when turn-on)
|
Wavelength Repeatability
|
0.5nm
|
Photometric Range
|
T:-1.0~200.0% ,A:-0.5~3.000Abs,C:-9999~9999
|
Photometric Accuracy
|
±0.5%T
|
Photometric Repeatability
|
0.2%T
|
Stray Light
|
≤0.3%T
|
UV-Solution software
|
NO
|
Data out put
|
USB, LPT parallel printer interface
|
Power Requirement
|
220V±10% 50Hz 70W / 110V±10% 60Hz 70W
|
Net Weight
|
10.5Kg
|
Gross Weight
|
14.5Kg
|
Dimensions
|
470×380×225 mm
|
Packing
|
650×539×370 mm
|

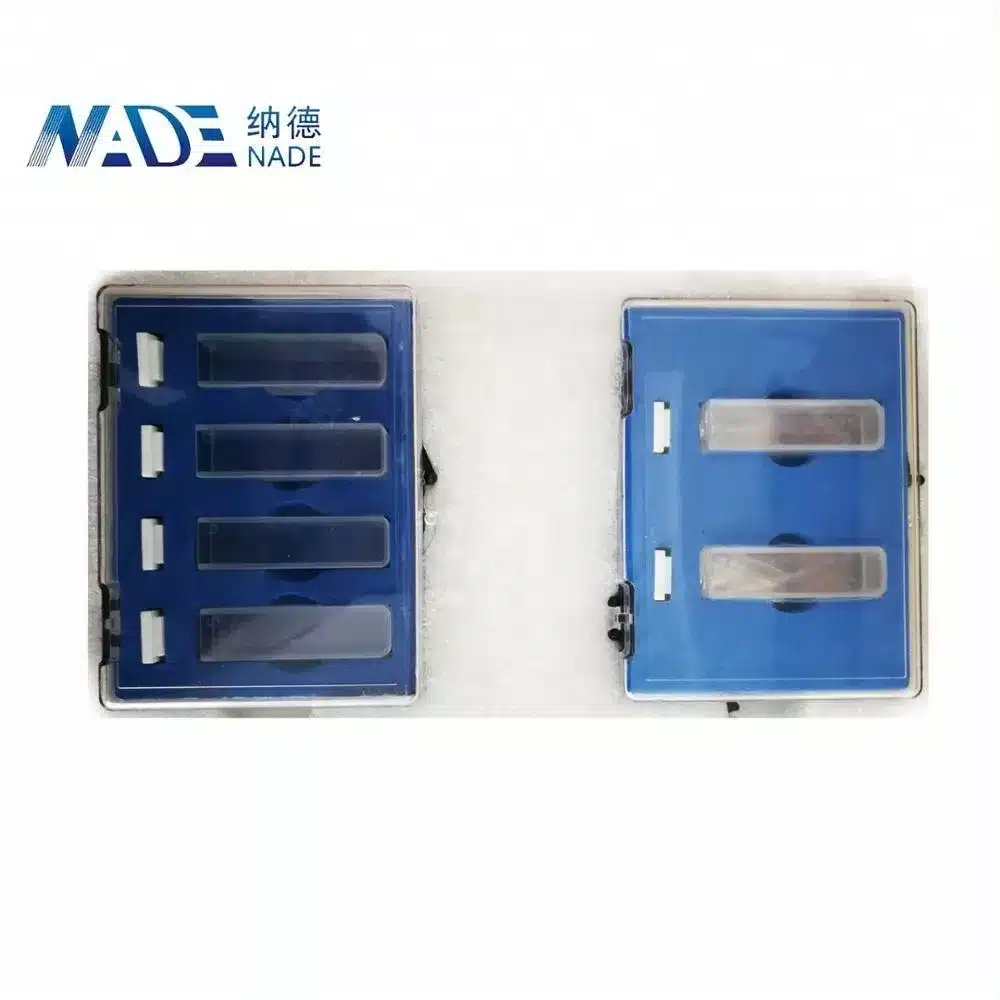

We also provide cuvette for spectrophotometer, glass/quartz/plastic(disposible) at different size.
