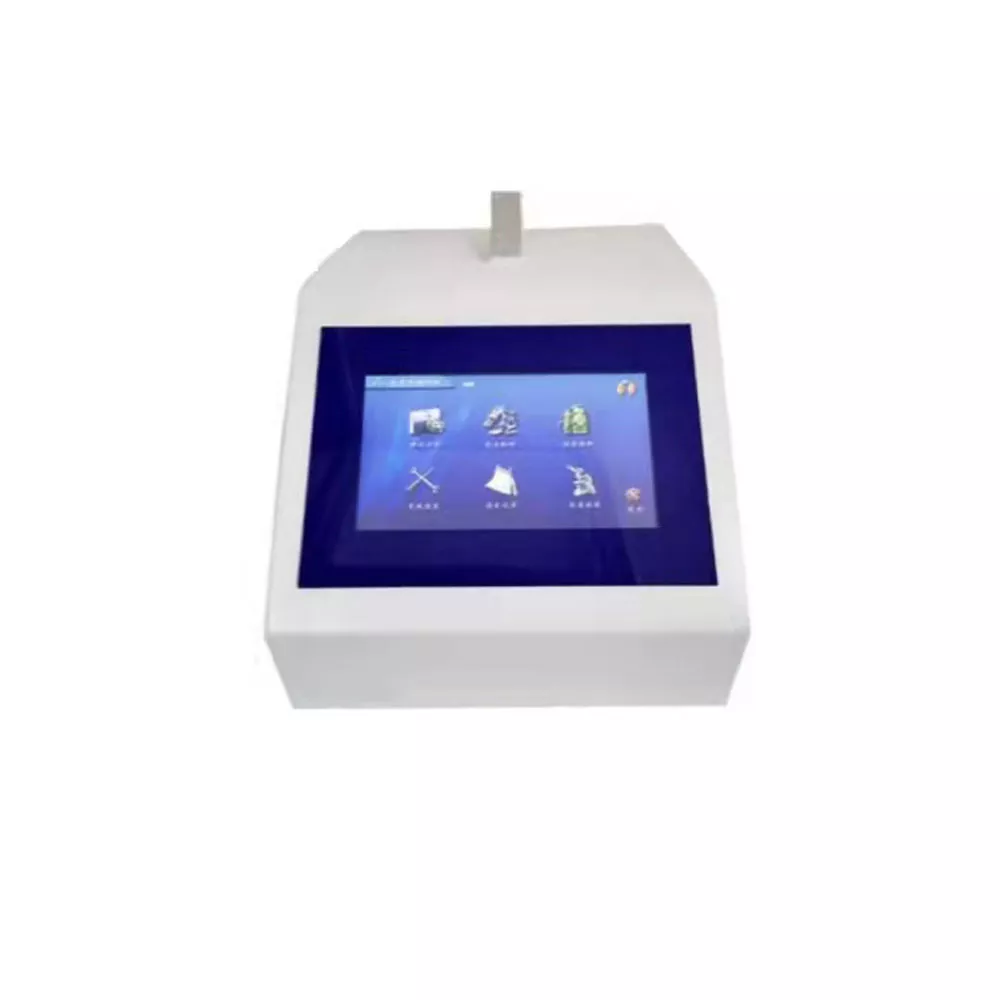

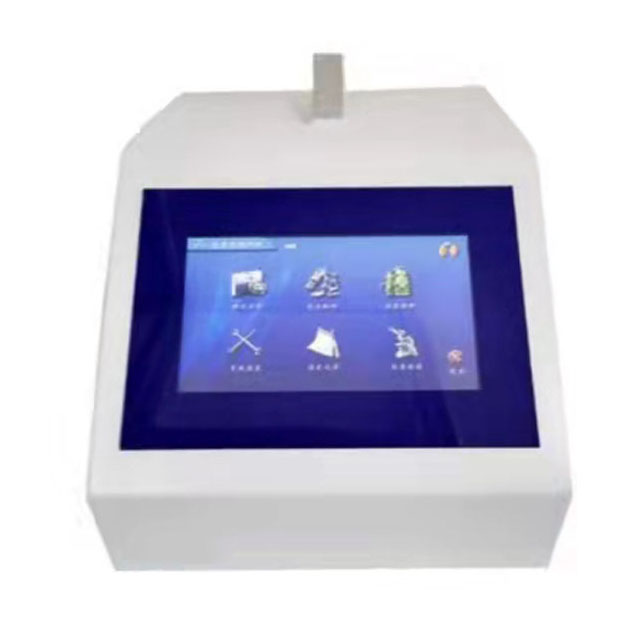

NADE Bubble Point Filter V6.5 Filter Integrity Tester with Audit Trail Function for Water Intrusion Test

1,520.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Category:
Description
  • 1 year
  • /
  • China
  • Nade
  • V6.5
  • 100-10000 mbar (1.5-145psi)
  • mbar
  • Ambient Temperature:+5℃ ~ +40℃;Relative Humidity:10-80%
  • More subject logs
  • Built-in printer
  • More than 15000 sets unlimited sets records
  • RS232/USB
  • Chinese/English
  • Online/Offline
  • 8KG

Product Description

Product Description



NADE Bubble Point Filter V6.5 Filter Integrity Tester with Audit Trail Function for Water Intrusion Test



Features:

1.Powerful functions, covering all the existing test methods for the filter integrity testing;

2.The first domestic implementation of integrity testing for the ultrafiltration system;

3.Scientific authority management design, password, permissions, authority grading, electronic signature, etc.;

4.It can create120 groups of reservation solution, so the instrument is more simplistic and intelligent;

5.With rich data interface, the instrument not only includes the standard configuration of digital and analog interface (RS232/USB), but also can customize a variety of industrial bus and simulation control port according to customer’s need, in preparation for the intelligent system upgrade, such as the complete set of online automatic sterilization control system;

6.Independent research and development team can carry out the design of specific solutions according to the needs of customers; Many years of field experience and strong professional services can not only ensure that the customers use the instrument at ease, but also can provide the technical support for the design and configuration of the filter system of the customers;

Specification:



Power Supply 100 – 260 VAC, 50HZ, 120W
Operation Pressure 100-10000 mbar (1.5-145psi) ;
Unit mbar
Operation Condition Ambient Temperature:+5℃ ~ +40℃;Relative Humidity:10-80%
Dimension(mm) 400(Depth)*240(Width)*270(Height1)*220(Height2)
Function Manual Bubble point Test;Basic Bubble Point Test;Extensive Bubble Point Test; Pressure Holding Test;Diffusion FLow Test;Water Intrusion Test;Ultrafitration Membrane Test
Test Accuracy Upstream Volume Test:≤± 4%;Bubble Point Test:≤± 50mbar ;Diffusion Flow Test:≤± 4% ;Water Immersion:≤± 0.01ml
Test Scope BP:100-8000mbar DF:1-600ml/min WI:0.01-100ml/min
Applied Range Symmetric and asymmetric membrane test, needle filter, filter bag, flat filter, filter cartridge (big filter volume ), ultrafiltration membrane, ultrafiltration column, a variety of irregular filters
Authority Management User Name and Password to Login
Reservation Solution 120 sets
Audit trail (customization) More subject logs
Print Function Built-in printer;
Historical Records More than1 5000 sets unlimited sets records
Records Copy Support USB disk to export (Include test curve)
Display Screen 7 inch, color touch screen
Serial Connection RS232/USB
Language Chinese/English
Work Mode Online/Offline
Other functions One/two-dimension cods ,Scanning gun;Lithium battery(customization)
Applicable Environment Above Dlevel
Weight 8KG
Anti-liquid level Front IP65
Signal output (4-20)MA,RS485,12V Alarm output
