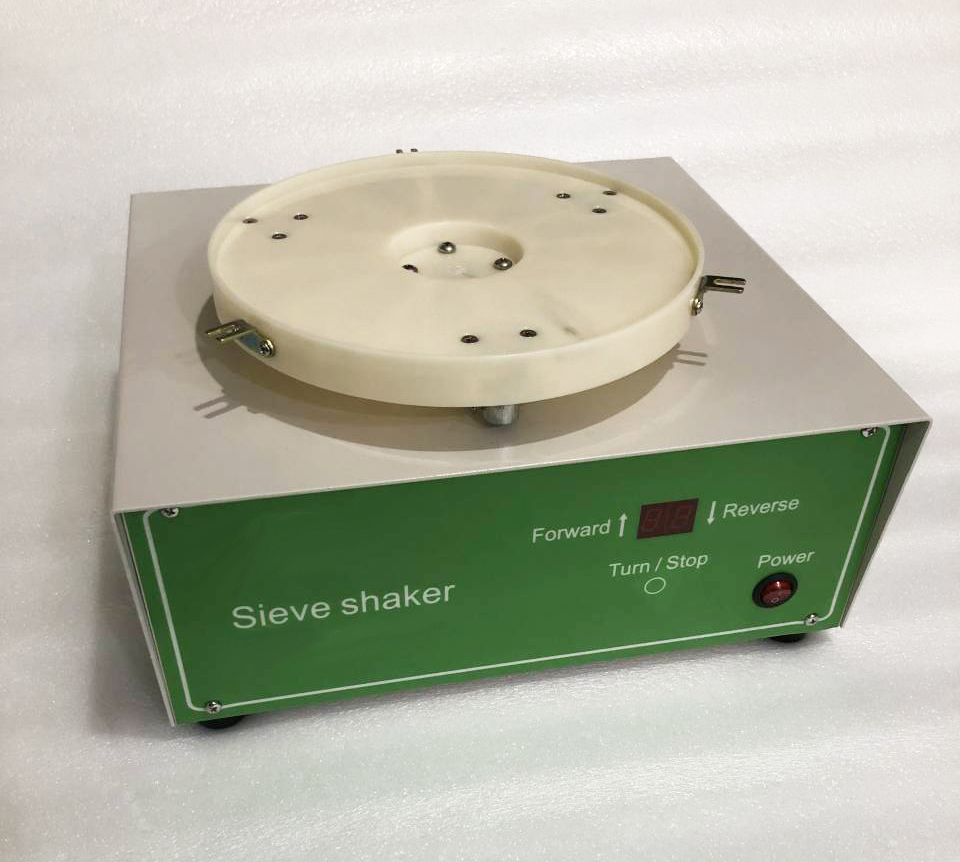

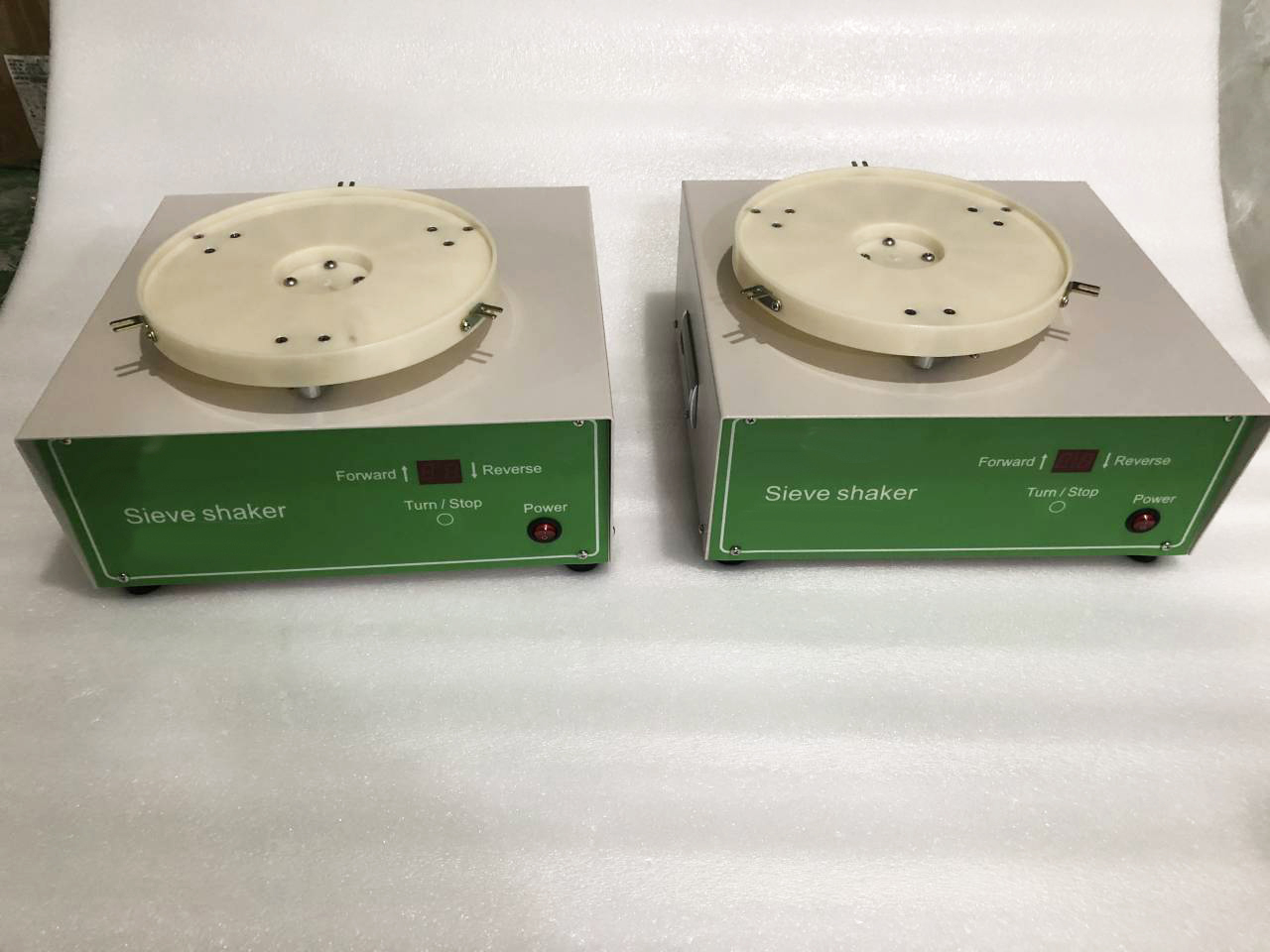

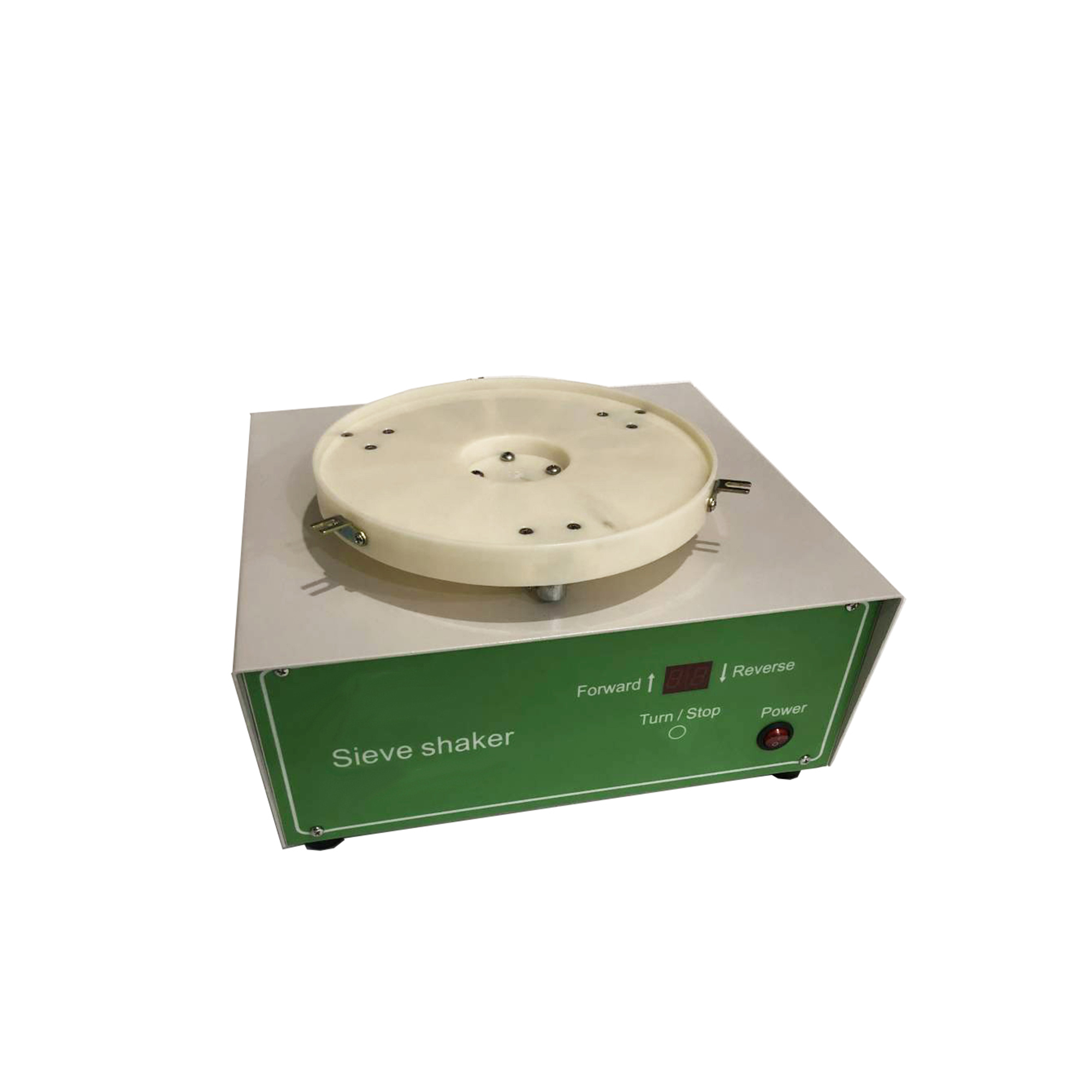

NADE DSX Electric Sieve Shaker

The Sieve shaker is a professional equipment developed and produced by our company according to the national standard of GB5494-2008 “Inspection of Impurities and Imperfect Grains of Grain and Oil”. This equipment is used in conjunction with grain selection and sieving. It is suitable for the sieveing and determination of grain and oilseeds. It is a necessary sieving and grading equipment for agricultural breeding.

The equipment uses a desktop structure, the worm gear is used for variable speed transmission, the Sieve body is supported by three points plane, and the plane rotates through the eccentric link mechanism. The control part adopts single-chip microcomputer, forward 60 (0 ~ 60) seconds and then reverse 60 (60 ~ 0) seconds, digital display, the control of forward and reverse time has high precision, reliable performance, and can work repeatedly without turning off the power.

1. Speed: (115±5) r/min

2. Sieving time: smooth sieve(60±2%) s;Inverse sieve (60±2%) s

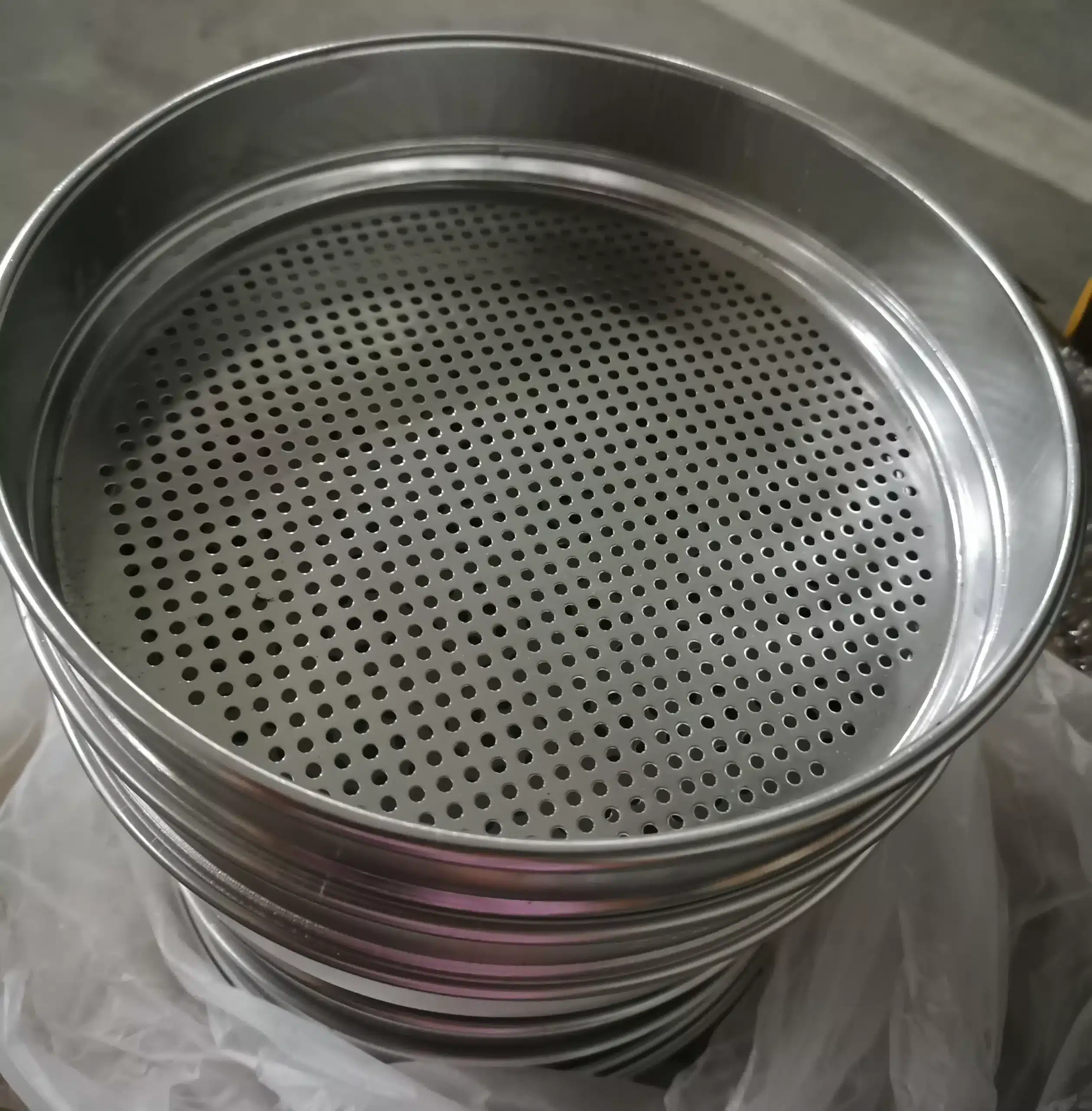

3. Grain sieve diameter: Approx. 200 – 220mm

4. Sieving range: 100 mm

5. Maximum sieving capacity: 500g

6. Power source: AC (220±22) V, 50Hz, 0.2A

7. Dimensions: 350×330×200

8. Weight: 10 kg

9. Sieving frame level: 3 layers
