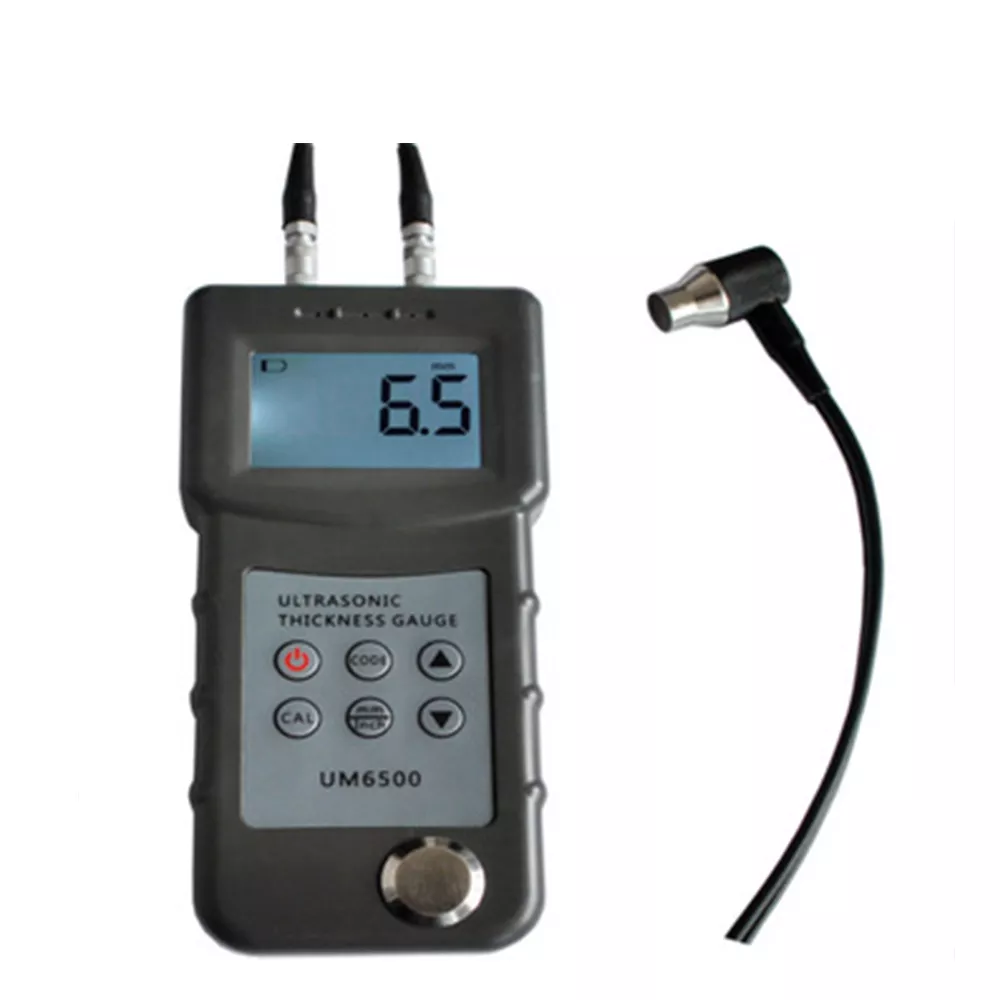

NADE Handhold Ultrasonic Thickness Gauge UM6500 1.0-245mm

Application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron

High resolution measurement

Probe automatic zero calibration for system error correction

Status indicator of the coupling and low battery.

Auto sleep and auto power off function to conserve battery life.

Humanized shape design, compact and portable, Can be used in harsh environment.

Display:Digits LCD with backlight.

Operating principle:ULTROSONIC

Measuring range (metric/imperial): 1.0-245mm,0.05-8inch (in Steel).

Resolution: 0.1mm;

Accuracy:±(0.5%H+0.1)mm, depends on materials and conditions

Units: Metric/Imperial unit selectable.

code: 11 groups

Power supply:4×1.5 AAA size (UM-4) battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉) ;≤90%RH

Dimensions:140mm×60mm×22mm Gloss Weight :1KG

Standard Delivery:Main Unit,8mm Probe,User Manual ,Carrying Case.
