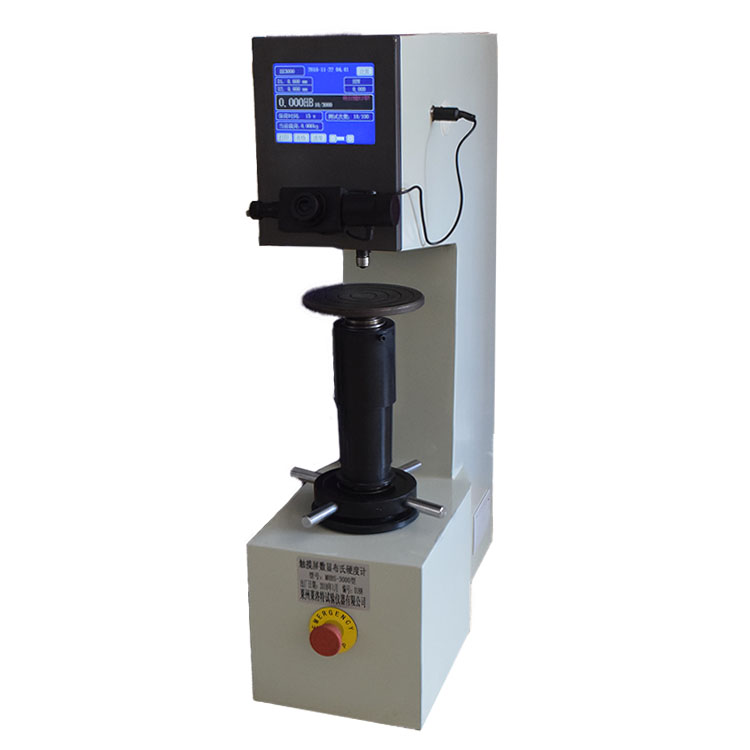

NADE MHBS-3000 touch screen digital display Brinell hardness tester Price for metals
Innovative design, strong construction ,high test efficiency ;
Automatic loading, closed-loop control system, test process LCD screen display;
On-board measurement, can be converted Rockwell, Vickers hardness and tensile strength, then print hardness test results;
Large LCD liquid crystal display, menu intellisense, easy to operate;
Video system and CCD image processing system optional;
Precision conforms to the Standards of GB/T 231.2, ISO 6506-2 and ASTM E10.
It’s suitable to determine the Brinell hardness of ferrous metals, nonferrous metals and bearing alloy materials;
Wide range of applications, especially for parallel plane precision measurement.
Measuring range |
8-650HBW |
Brinell scale |
HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/162.5, HBW5/250,HBW5/750,HBW10/100,HBW10/1500, HBW10/3000,HBW10/1250,HBW10/500,HBW10/1000 |
Test force |
62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N), 187.5kgf(1839N),250kgf(2452N),500kgf(4903N), 750kgf(7355N),1000kgf(8907N),1500kgf(14710N), 3000kgf(29420N) |
Max. height of test piece |
225mm |
Depth of throat |
135mm |
Optical magnification |
20X |
Min test unit |
1μm |
Power |
AC220V 50/60HZ |
Dimension |
565*245*786mm |
Weight |
130kg |
