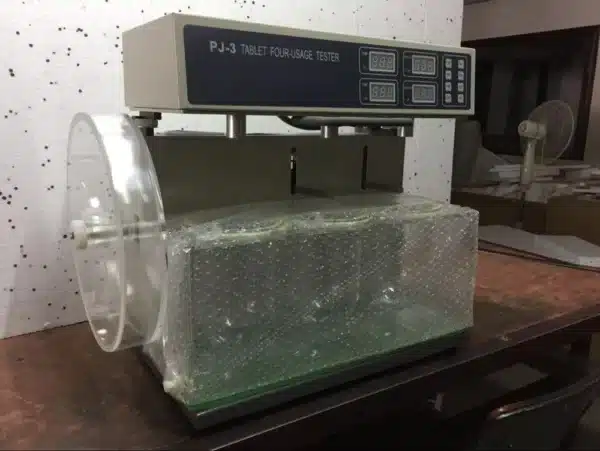

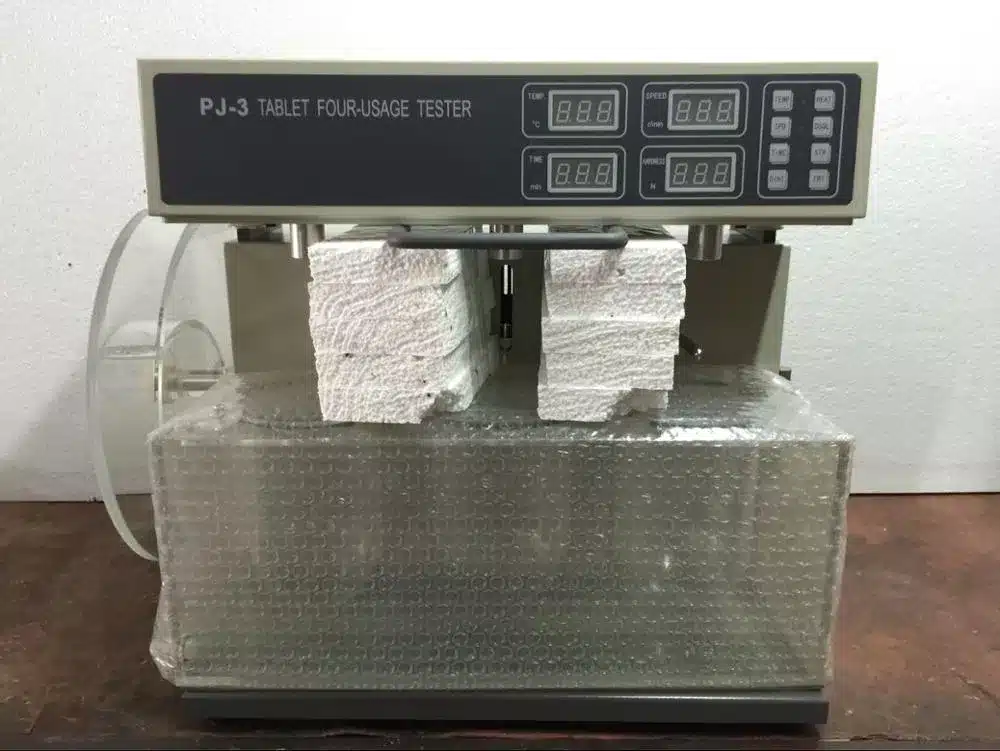

Nade PJ-3 TABLET FOUR USAGE TESTER (20~200)rpm

It has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.

• National standard( Chinese codex ) /2010
• Corporate standard (Dissolution tester) Q/12XQ0187-2010

• Corporate standard (Disintegration tester) Q/12XQ0188-2010

• Corporate standard(Tablet friability tester) Q/12XQ0189-2010
• Corporate standard (Tablet hardness tester )Q/12XQ0186-2010

• Intellectualized, auto-control, auto-test, auto-diagnose, auto-alarm.
• The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even temperature.
• Temperature is high accurately auto-controlled.
• Auto stop at timing point.
• Parameters can be preset at any time, the preset and real data are displayed alternately in time.
• It has three vessels and three poles arranged on one line. The head part of the instrument can be artificially turned over smoothly and flexibly.
• Two disintegrations run synchronously. Auto stop at timing point.
• High accuracy is achieved in testing rotary speed and counting friability.
• The hardness has high accuracy press sensor and hardness data is displayed in Newton.
• It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
• Auto-display, auto-memorize, auto-reset, auto-retest.

• Temperature range (ambient to +39.9℃)±0.3℃
• Speed range (20~200)rpm±2rpm
• Automatic time range (1~900)min±0.5min
• Stations of dissolution 3
• Paddle radial run-out ±0.5mm
• Basket radial run-out ±1.0mm
• basket assemblies 2
• Nacelle back and forth frequency (30~32 )/ min
• Nacelle back and forth range (55±2)mm
• Drum 1
• Drum’s size radius:Φ286mm depth: 39mm
• Hardness range (2~200)N
• Probe procession range (3~20)mm
• Power 220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W
• Dimension (590×300×480)mm3
