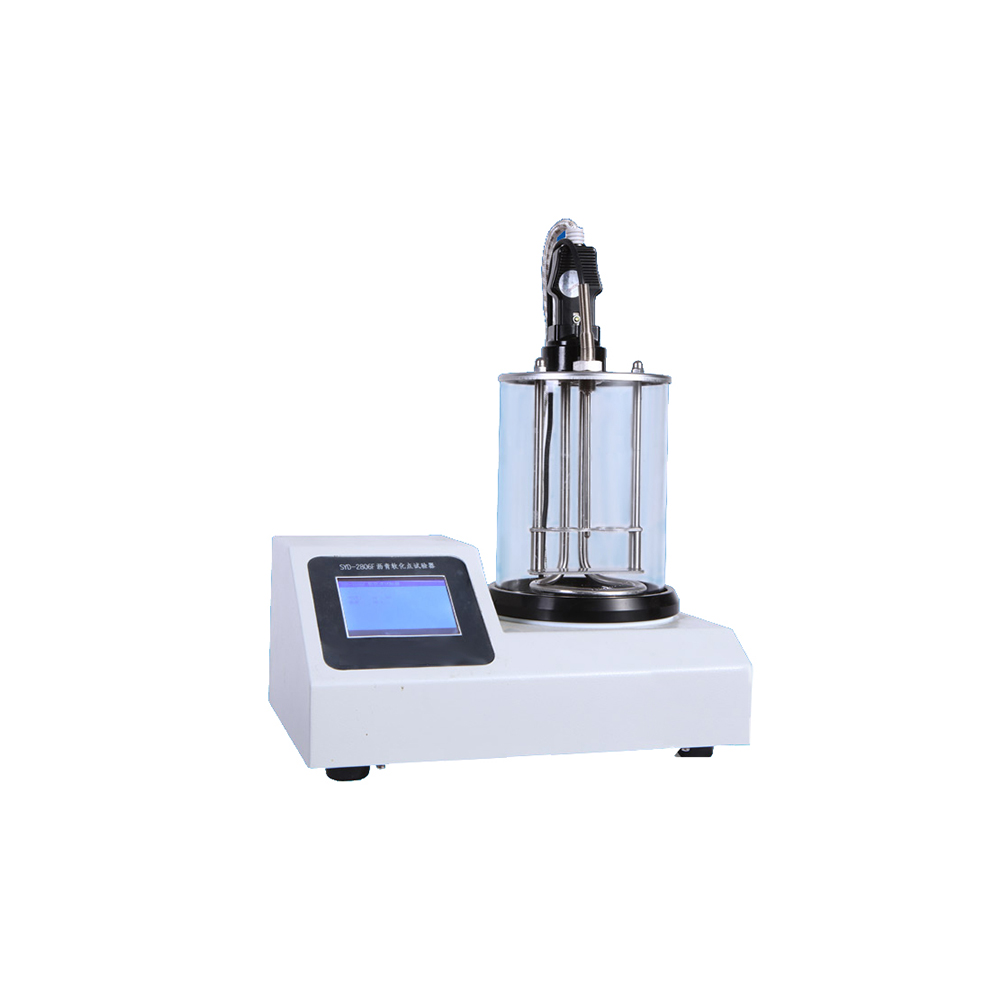

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

500.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Category:
Description

The instrument is designed and made as per GB/T4507 and ASTM D36 Test Methods for Softening Point of Petroleum Asphalt of national standard of People’s Republic of China , T0608 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in the Industrial Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

Feature



1. Small desktop structure. Controlled by micro-computer. Linear heating and automatic stir. It shows the reliable test result.

2. The beaker is made of high-temperature resistant glass. The rings and balls all meet requirements of standard test methods..

3. An automatic stirrer is equipped in the bath. LED shows time and temperature. It can test two samples at a time. Easy to use.

Specification



Model

SYD-2806F

Power supply AC 220V (-5%~+10%), 50 Hz
Measurement range 32 ℃~160 ℃
(1) Heating medium 5℃ to 80℃ distilled water(softening point under 80 ℃)
(2) Heating medium 32 ℃ to 160℃ glycerin (softening point over 80 ℃)
Temperature resolution 0.1 ℃
Heating rate It will be adjusted to 5.0±0.5 ℃/ min automatically after three minutes
Stirrer The stirring speed can be continuously adjusted
Heating power 800 W
Heating medium glycerin
Beaker cubage 1000 ml
Relative humidity ≤ 85%
Total power consumption ≤ 850 W
Outline dimension 210mm*350mm*400mm(L*W*H)
