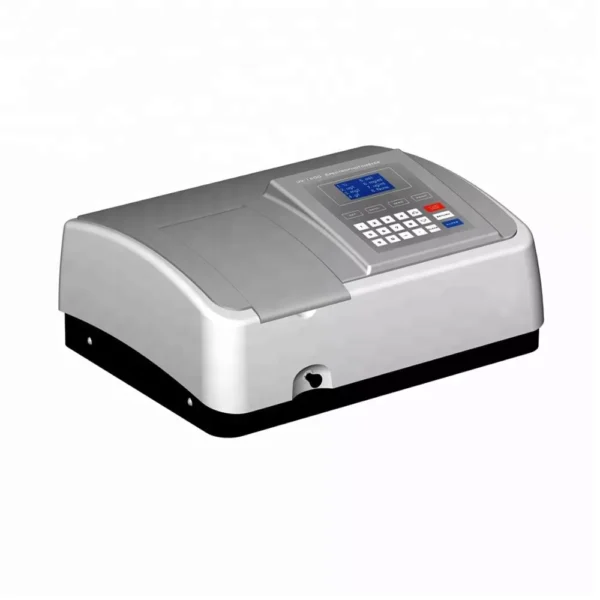

NADE UV-1600PC 190~1100nm 4nm QC Lab Analysis Equipment UV VIS Spectrophotometer with PC software

500.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Category:
Description
  • China
  • NADE
  • 190-1100nm
  • 4 nm
  • Single Beam , Grating 1200 lines/mm
  • ±0.5nm
  • Tungsten & Deuterium Lamp

Product Description



Introductions

Simple-to-use instruments with advanced performance.

Its’ stray light is only 0.05%. The local stand-alone software provides functions of Photometry, Quantitative Test, Kinetics and System Utilities functions.

Features:
  1. Large LCD screen(128*64 Dots).
  2. System can also save the test results, total 200 groups of data 100 standard curves can be saved in the RAM. Convenient for check and reload.
  3. Data can be stored after a sudden power cut.
  4. Auto setting wavelength
  5. Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime.
  6. The optional application software M. Wave Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port. It can expand to the following functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test.
  7. Pre-aligned design makes it convenient to change lamps.
  8. Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are available.
Specification:



Model V-1600

V-1600PC

V-1800 V-1800PC UV-1600

UV-1600PC

UV-1800 UV-1800PC
Wavelength Range 320-1100nm 190-1100nm
Spectral Bandwidth 4nm 2nm 4nm 2nm
Optical System Single Beam , Grating 1200 lines/mm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability 0.3nm
Photometric Accuracy ≤±0.5%T or ±0.003A@1A
Photometric Range 0-200%T , -0.3 – 3A ,0-9999Conc
Stray Light ≤0.05%T@360nm ≤0.05%T@220 ,360nm
Stability ±0.002A/h @500nm
Display Graphic LCD(128*64 dots)
Keyboard 22 Membrane keypad
Standard Cell Holder Standard 10mm pathlength cuvette
Sample Compartment 4-position 10mm cell changer
Light Source Tungsten lamp Tungsten& Deuterium lamp
Output USB Port & Parallel Port(printer)
Power Requirement AC 110/220V 50/60Hz
Dimensions(W*D*H) 470*370*180mm
Weight 12kg 14kg

“PC” means with PC software

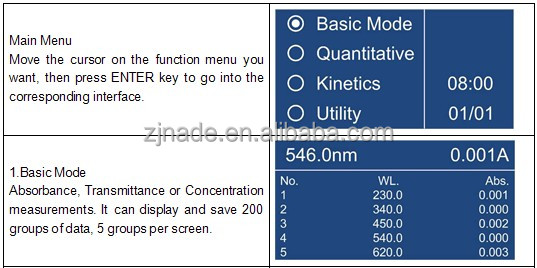

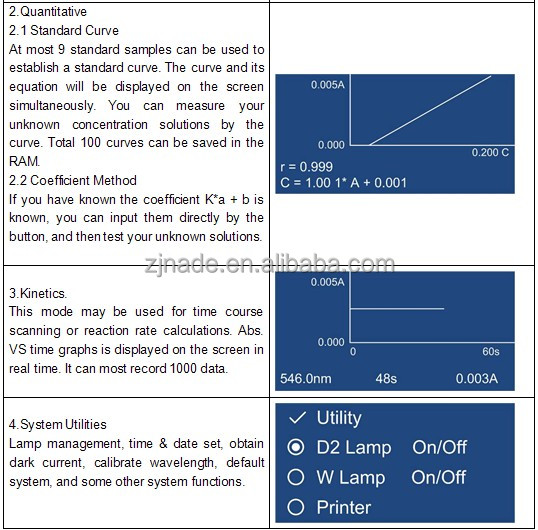

1600/1800 Series Local Control Software:

NADE UV-1600PC 190~1100nm 4nm QC Lab Analysis Equipment UV VIS Spectrophotometer with PC software

NADE UV-1600PC 190~1100nm 4nm QC Lab Analysis Equipment UV VIS Spectrophotometer with PC software
