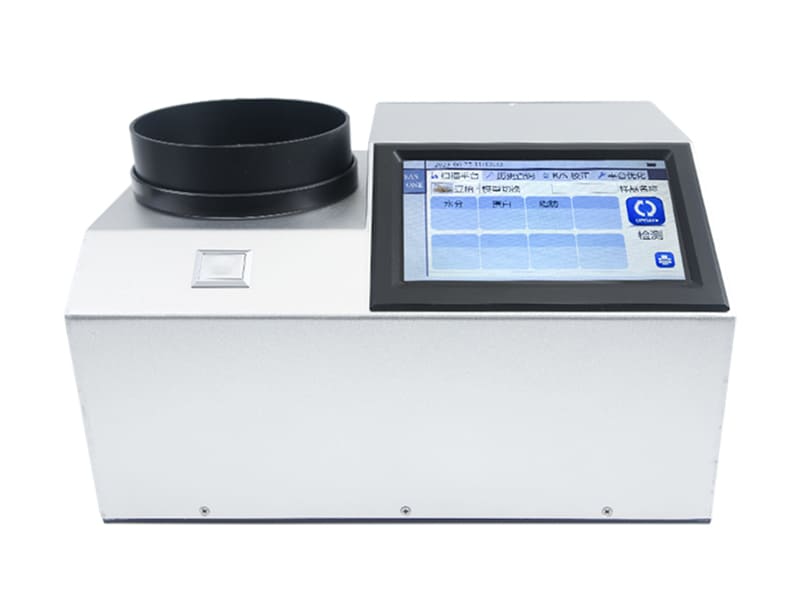

Near infrared grain analyzer

Product Introduction

The near-infrared grain analyzer can quickly analyze the types and contents of components in different substances (such as protein, water, oil, fiber, ash, etc.) based on the spectra generated by near-infrared light irradiation on the sample, and can add models according to customer needs.

Standard testing items:

Soybeans: protein, water-soluble protein, oil, water, fiber

Rapeseed: oil, erucic acid, water

Soybean flour: moisture, protein, oil

Flour: moisture, protein, ash content, whiteness

Soybean meal powder: moisture, protein, oil

Optional extensions:

Wheat: moisture, protein, wet gluten

Rice: moisture, protein, starch

Corn: moisture, oil, protein

Peanuts: oil, moisture, oleic acid

Product features

1. Fast: detection time only takes 1 minute and 30 seconds

2. Non destructive: The sample does not require grinding and can be injected as a whole particle

3. Diversity: The instrument adopts a combination of multiple different algorithms and can switch different models to detect multiple samples based on their characteristics.

4. Diversified power supply: detachable battery with adapter

5. Voice operation: The machine can be operated through voice

6. Convenient to carry: 6KG weight, easy to carry

7. Easy to operate: one click operation

8. Instrument self check: Built in self check algorithm, can self test machine status and correct it at any time

9. Remote customer service: Built in remote customer service, manufacturers can remotely operate machines to help customers solve problems and problems

Product parameters

Main technical indicators of the instrument

Spectral range: 900-1700nm;

Resolution: 7nm;

Measurement method: Transmission, single measurement can detect up to 15 sub samples.

Instrument size: 366mm X 255mm X 210mm

Instrument weight: 6kg;

Screen size: 7 inches;

Light source usage time: 20000H

1. Environmental temperature: 5 ℃~35 ℃

2. Indoor relative humidity not exceeding 85%

3. The instrument should be placed on a stable workbench, free from direct sunlight and strong electromagnetic interference

4. Indoor non corrosive gases

5. Working power supply: Input 220V
