New Portable Tension Meter Gauge Screen Tension Tester AS-120N Range 7~40 N/cm
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
New Portable Tension Meter Gauge Screen Tension Tester AS-120N Range 7~40 N/cm
Product Description
Screen Tension Tester applicable to general wire mesh tension and steel mesh tension measurement. Suitable for
screen printing and screen stencil measurement, high accuracy. The ideal and necessary tool for production of precise
screen and steel mesh.
Product Features

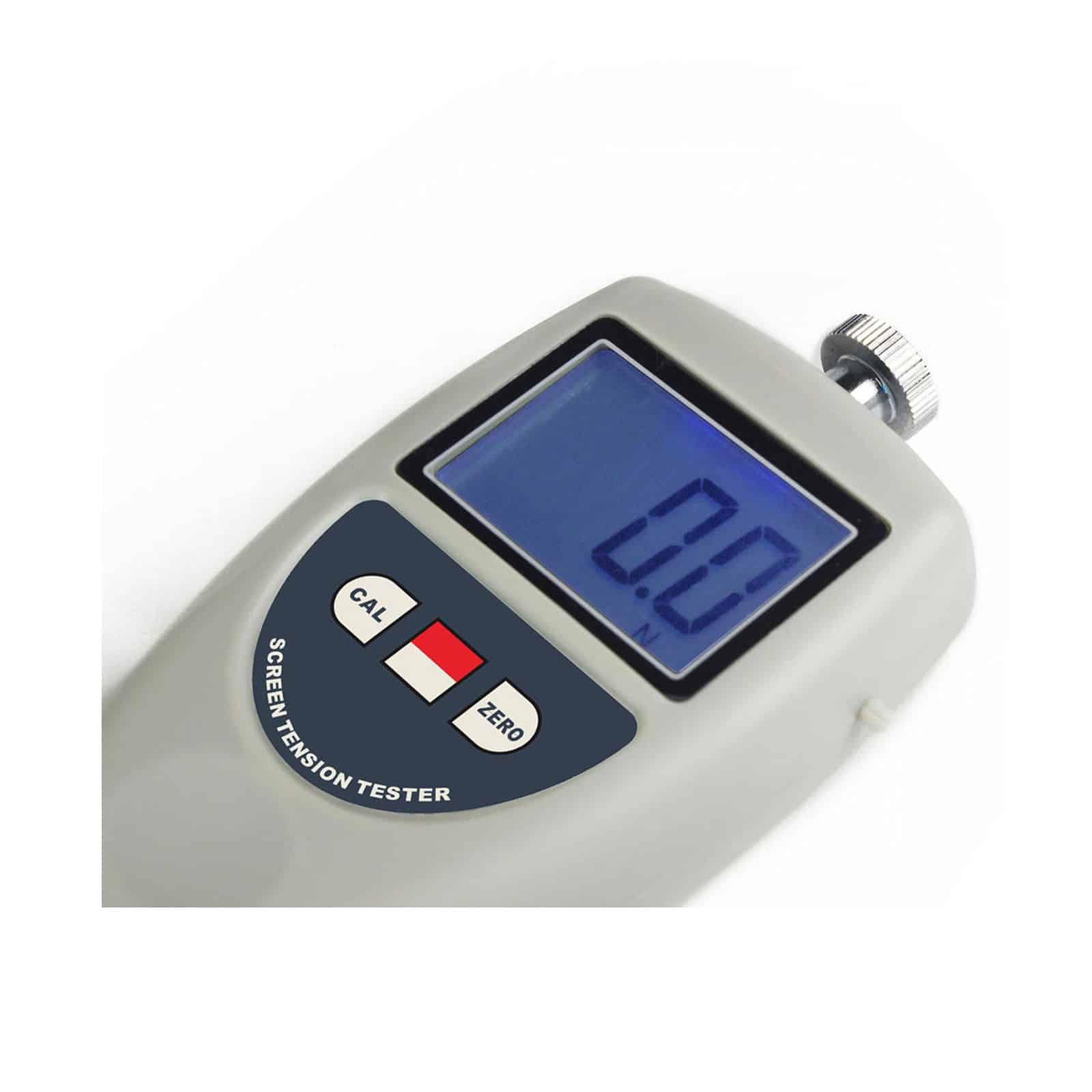

*LCD digital display, eliminating reading error.
* Unit conversions between N/cm and kg/cm.
* Use USB data output with connection PC.
* Provide Bluetooth data outputchoice.
Product Parameters
| Measurement Range | 7~40 N/cm |
| Display Range | 0~50 N/cm |
| Resolution | 0.1 |
| Fiducial Error | 5% |
| Operating Environment | Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH |
| Power Supply | 4×1.5v AAA(UM-4) battery |
| Size | 175x95x40mm |
| Weight | 490 g (Not included Batteries) |
|

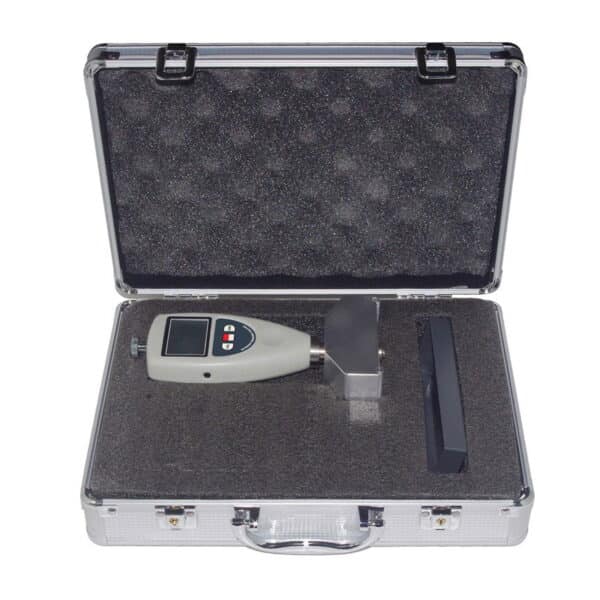

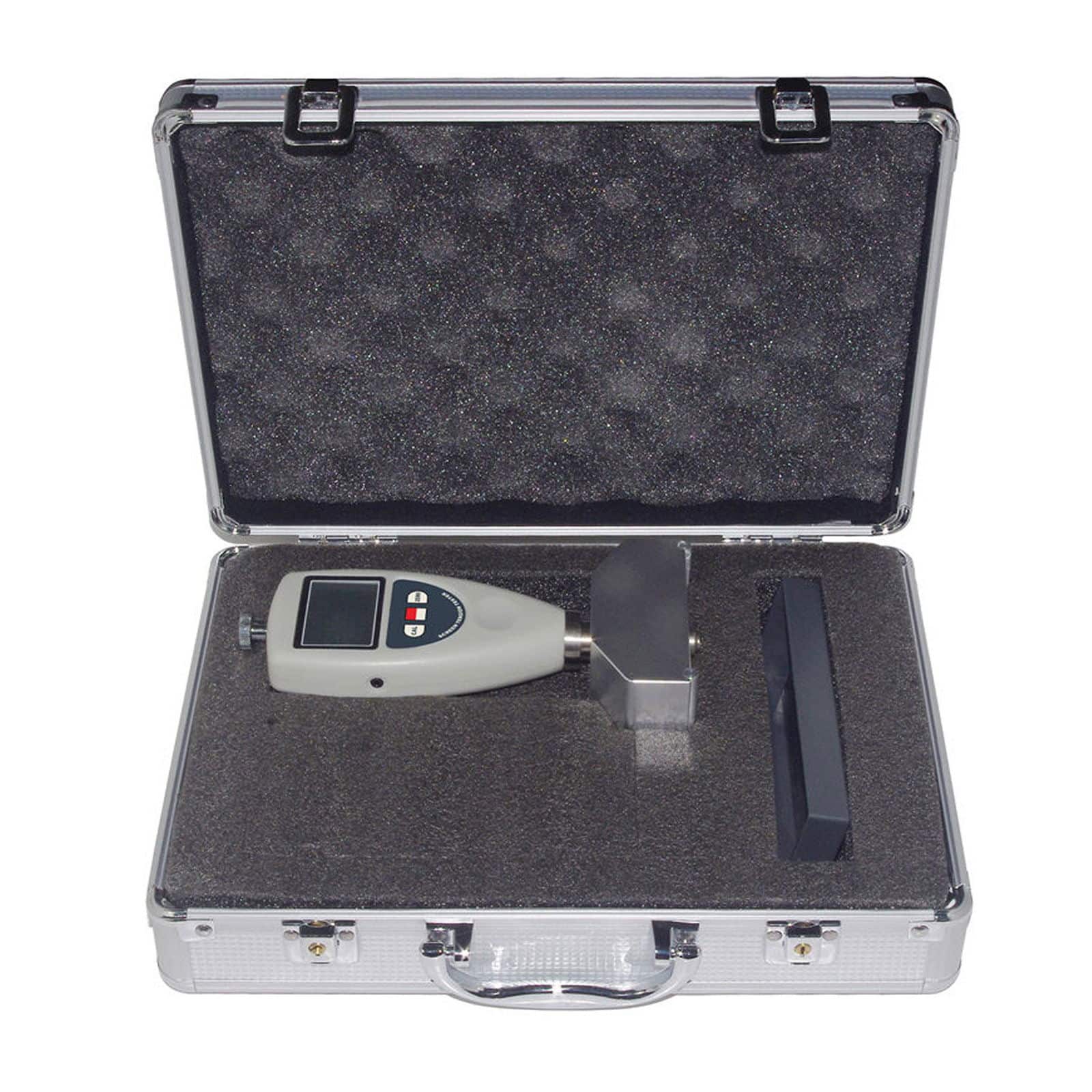

Standard Accessories |
Main Unit |
|
Calibration Block |
|
| Carrying Case | |
| Operation Manual | |
| Optional Accessories | USB/RS232C data output |
| Bluetooth data output |
| Wire Mesh | Printing Task | Tension (N/cm） |
| Ultra High Tension Wire Mesh | Circuit Board and Measuring Scale | 16~20 |
| High Strength Wire Mesh | Multicolor and Four-Color Printing (Mechanical Printing) |
16~20 |
| High Precision Ultra Fine Wire Mesh | High Precision Multi Layer Circuit Printing | 25~30 |
| High Precision Polyester Net (Standard Monofilament) |
Multicolor and Four-Color Printing (Manual Printing) |
8~12 |
| Ordinary Polyester Net (Standard Monofilament) |
Flat Object | 8~12 |
| Nylon Mesh | Curve Surface or Rough Object | 8~12 |
| Maximum Tension | Regulating Pressure | ||
| 77T | 200 mesh | 30N/cm | 7kg/cm |
| 90T | 230 mesh | 25N/cm | 6.5kg/cm |
| 100T | 250 mesh | 23N/cm | 6kg/cm |
| 120T | 300 mesh | 21N/cm | 5.7kg/cm |
| 140T | 350 mesh | 20N/cm | 5.3kg/cm |
| 165T | 420 mesh | 18N/cm | 5kg/cm |
| Note: The above data is the reference data in the use of a factory pneumatic net machine, the specific operation according to actual circumstances. | |||

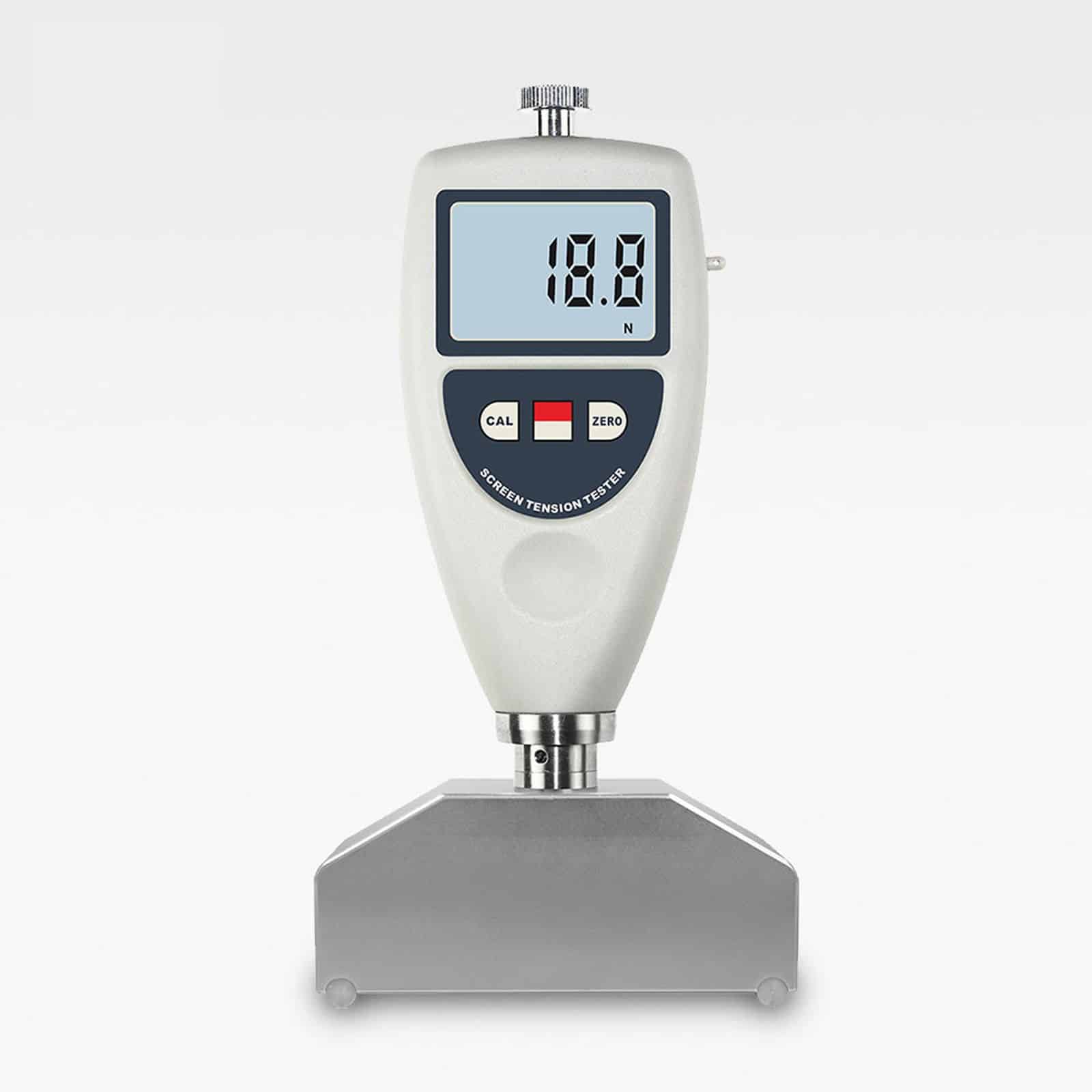

Product Image
