NIB-100F Laboratory Fluorescent Microscope

1,520.00৳

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

Model:NIB-100F
MOQ:1
Warranty:1 year
Place of Origin:China

Product Description
Specification

Product Description

Laboratory Fluorescent Microscope

– Excellent fluorescent image with high resolution fluorescent objectives
– Protect the light leak with advanced lamp housing
– Widely used in venereal disease examination and immuneless diagnosis

NIB-100F Inverted Fluorescent Microscope

– Equipped inverted fluorescent attachment with inverted biological microscope NIB-100
– Excellent optical function with infinitive optical system
– Innovative stand structure, a special design for viewing incubating cell tissue
– More stable power supply,digital display and timer

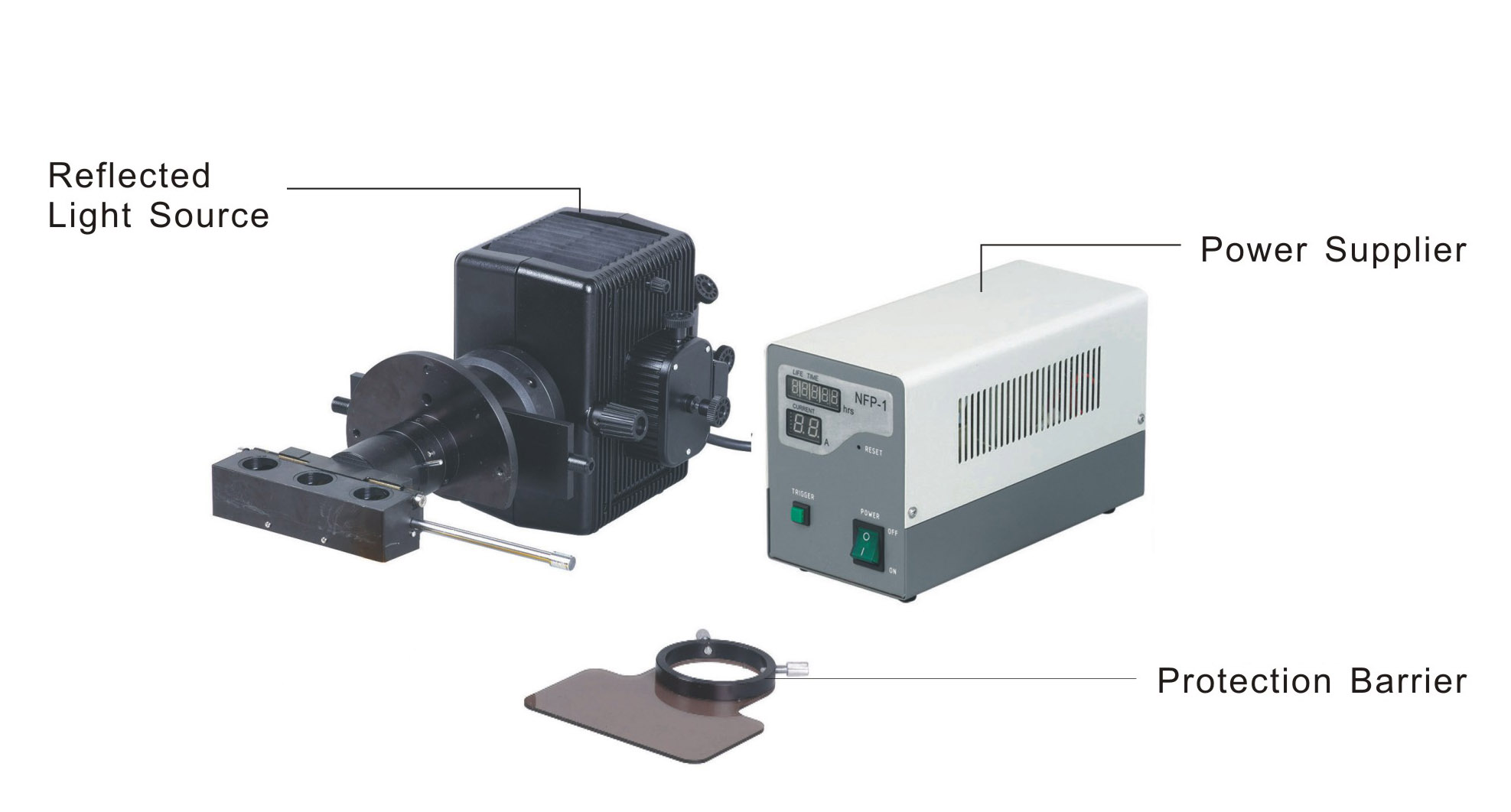

lnverted Fluorescent Attachment

NIB-100F Attachment

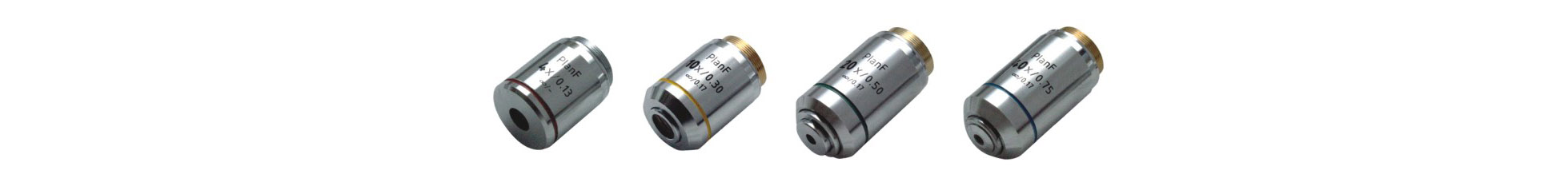

Fluorescent Objective

Objective

Objective	Magnification	Numerical Aperture	Working Distance	Coverslip thickness
lnfinite Plan Fluorescent Objective	4x	0.13	16.3	1.2
	10x	0.3	12.4	1.2
	20x	0.4	1.5	1.2
	40x	0.6	2.2	1.2

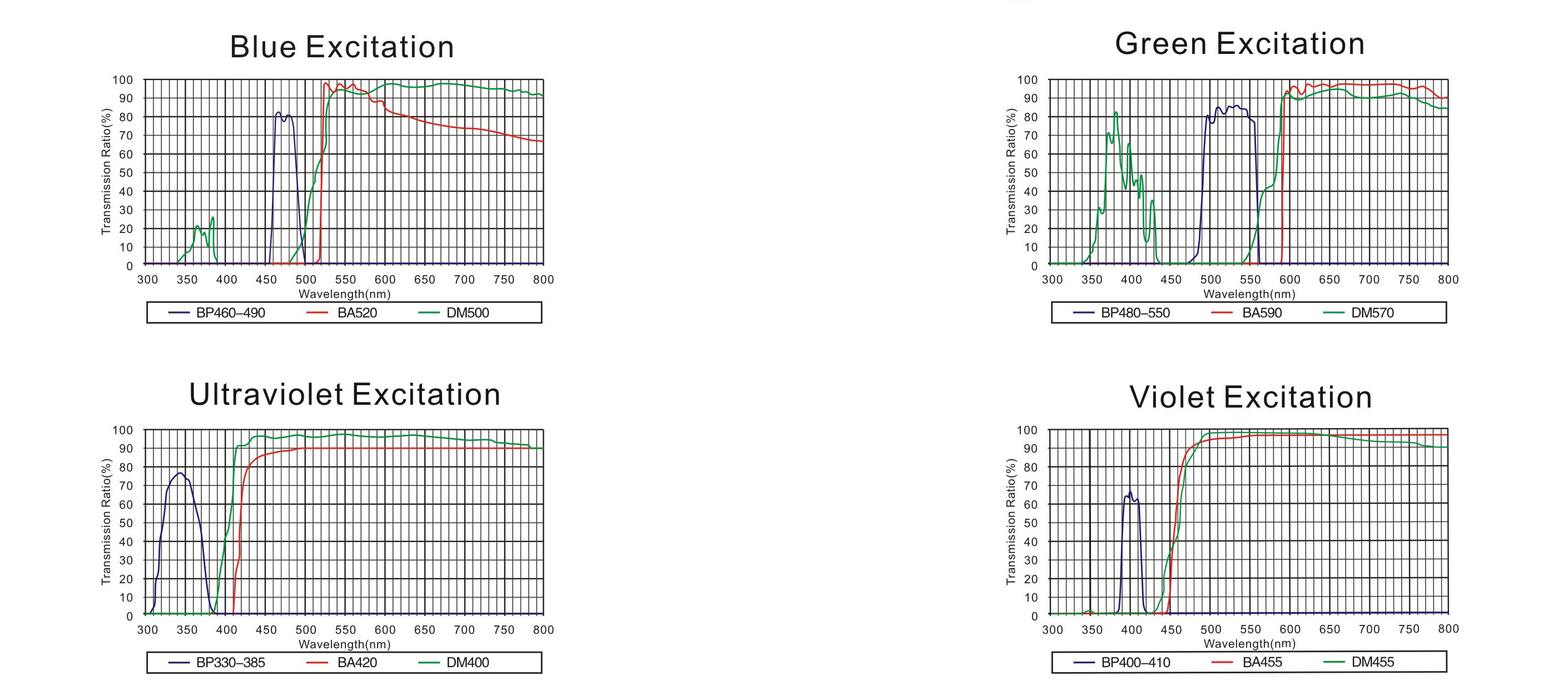

Characteristics of Mirror Unit’s Wavelength

NIB-100F Characteristics

Specification

					NIB-100F
Optical System	Infinite Optical System				s
Viewing Head	Trinocular Head Inclined at 30°, Interpupillary 48-75mm				s
Eyepiece	High-point, Extra Wide Field Eyepiece EW10×/ 22				s
Nosepiece	Quintuple Nosepiece				s
Objective	LWD Infinite Plan Objective	4×/0.1, WD 18mm			s
		10×/0.25, WD 10mm			o
		20×/0.4, WD 5.1mm			o
		40×/0.6, WD 2.6mm			s
	Infinite Plan Phase Objective	PH 10×/0.25, WD 10mm			s
		PH 20×/0.4, WD 5.1mm			s
		PH 40×/0.6, WD 0.35mm			o
	Infinite Plan Fluorescent Objective	4×/0.13, WD 16.3mm			o
		10×/0.3, WD 12.4mm			o
		20×/0.4, WD 1.5mm			o
		40×/0.6, WD 2.2mm			o
Condenser	ELWD Condenser NA 0.3, LWD 72mm				s
Focusing	Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation				s
Stage	Plain stage 160×250 mm				s
	Glass Insert				s
	Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×80 mm				o
	Auxiliary Stages70×180mm				s
	Terasaki Holder				o
	38mm Petri Dish Holder				o
	54mm Slide Glass Holder				o
Illumination	Halogen Lamp6V/ 30W				s
Filter	Blue/ Green and Ground Glass (45mm)				s
Phase Annulus					s
Centering telescope(30)					o
Photo Attachment					o
Video Adapter	Video Adapter with C Mount				o
Reflected Light Source		Excitation	Dichroic Mirror	Barrier Filter
	Blue excitation	BP460~490	DM500	BA520	s
	Blue excitation (B1)	BP460~495	DM505	BA510-550	o
	Green excitation	BP480~550	DM570	BA590	s
	Ultraviolet excitation	BP330~385	DM400	BA420	o
	Violet excitation	BP400~410	DM455	BA455	o
Lamp	100W HBO Ultra Hi-voltage Spherical Mercury Lamp				s
Protection barrier	Barrier to Resist the Ultraviolet Light				s
Power Supplier	Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display				s
Immersion Oil	Fluorescent Free Oil				s
Neutral ND25/ ND6 Filter					o
Centering Target					o

“S ” for standard outfit ” O” for optional

Click to enlarge

Compare

Add to wishlist

Category: Lab Testing Equipment

Description
Shipping & Returns Policy

Description

Objective	Magnification	Numerical Aperture	Working Distance	Coverslip thickness
lnfinite Plan Fluorescent Objective	4x	0.13	16.3	1.2
	10x	0.3	12.4	1.2
	20x	0.4	1.5	1.2
	40x	0.6	2.2	1.2

					NIB-100F
Optical System	Infinite Optical System				s
Viewing Head	Trinocular Head Inclined at 30°, Interpupillary 48-75mm				s
Eyepiece	High-point, Extra Wide Field Eyepiece EW10×/ 22				s
Nosepiece	Quintuple Nosepiece				s
Objective	LWD Infinite Plan Objective	4×/0.1, WD 18mm			s
		10×/0.25, WD 10mm			o
		20×/0.4, WD 5.1mm			o
		40×/0.6, WD 2.6mm			s
	Infinite Plan Phase Objective	PH 10×/0.25, WD 10mm			s
		PH 20×/0.4, WD 5.1mm			s
		PH 40×/0.6, WD 0.35mm			o
	Infinite Plan Fluorescent Objective	4×/0.13, WD 16.3mm			o
		10×/0.3, WD 12.4mm			o
		20×/0.4, WD 1.5mm			o
		40×/0.6, WD 2.2mm			o
Condenser	ELWD Condenser NA 0.3, LWD 72mm				s
Focusing	Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation				s
Stage	Plain stage 160×250 mm				s
	Glass Insert				s
	Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×80 mm				o
	Auxiliary Stages70×180mm				s
	Terasaki Holder				o
	38mm Petri Dish Holder				o
	54mm Slide Glass Holder				o
Illumination	Halogen Lamp6V/ 30W				s
Filter	Blue/ Green and Ground Glass (45mm)				s
Phase Annulus					s
Centering telescope(30)					o
Photo Attachment					o
Video Adapter	Video Adapter with C Mount				o
Reflected Light Source		Excitation	Dichroic Mirror	Barrier Filter
	Blue excitation	BP460~490	DM500	BA520	s
	Blue excitation (B1)	BP460~495	DM505	BA510-550	o
	Green excitation	BP480~550	DM570	BA590	s
	Ultraviolet excitation	BP330~385	DM400	BA420	o
	Violet excitation	BP400~410	DM455	BA455	o
Lamp	100W HBO Ultra Hi-voltage Spherical Mercury Lamp				s
Protection barrier	Barrier to Resist the Ultraviolet Light				s
Power Supplier	Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display				s
Immersion Oil	Fluorescent Free Oil				s
Neutral ND25/ ND6 Filter					o
Centering Target					o
