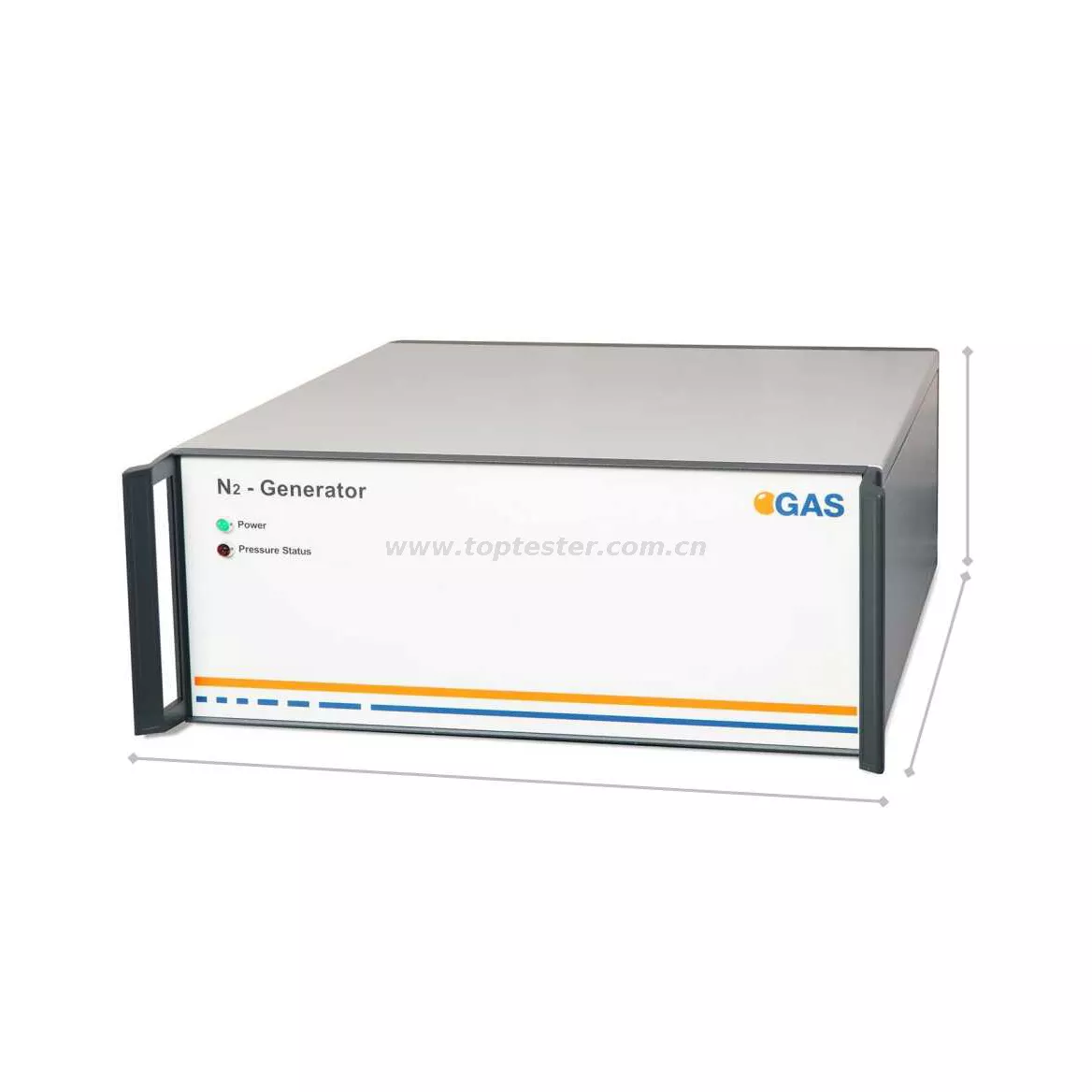

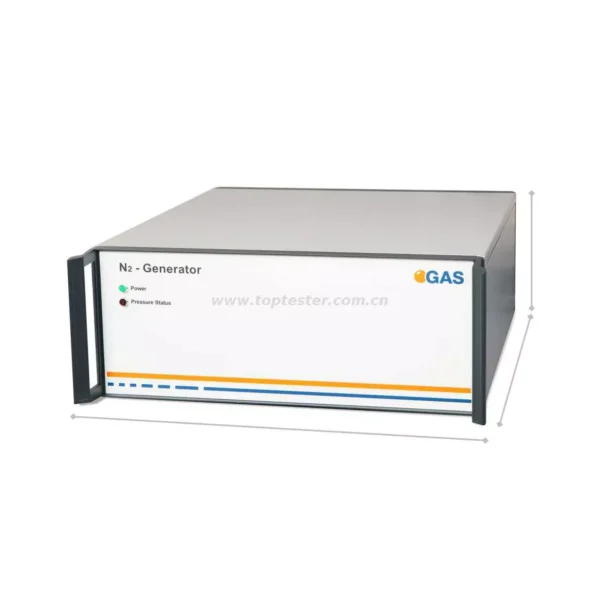

NITROGEN 5.0 GAS GENERATOR

The N2-Generator of G.A.S. was particularly developed for the autonomous, mobile and by that flexible use of analytical devices where zero

air is no option e.g. testing of flammable gases. Using the N2-Generator makes cylinders of operating gas redundant allowing analyzers to

be operated continuously with nitrogen of highest grade (5.0) supplied from enriched ambient air.

A very compact design and by that user friendliness could be achieved by integrating the compressor into the 19” housing. Standard Swagelok connectors enable a convenient/’plug- and-play’ coupling of the machine to any device.

The applied pressure-swing technology enables auto-regeneration of the O2-retarding filters while the integrated molecular sieves assure that

ambient air of even elevated humidity can be handled. Thus exchange of filters (depending on concentrations of impurities, chemical compounds and humidity) are typically in the

range of beyond 6 month.

TECHNICAL SPECIFICATION

Technology: Pressure-Swing-Adsorption (PSA)

“N2-Quality: 99.999 % (5.0 purity)

O2: <10 ppm*1”

“Pneumatics: Flow max. 400 mL/min*2

Pressure: >3 bar (rel.)”

Fittings: 3 and 6 mm stainless steel

Housing: 19” compatible, IP20, CE marking

“Voltage: 110-130V AC, 50-60 Hz

220-250V AC, 50-60 Hz

(to be specified by customer)”

Dimensions: 47 x 54 x 18 mm (WxDxH)

Weight: 25 kg

Temperature: 5 – 40 °C

Humidity (RH): ≤ 80 %*3
