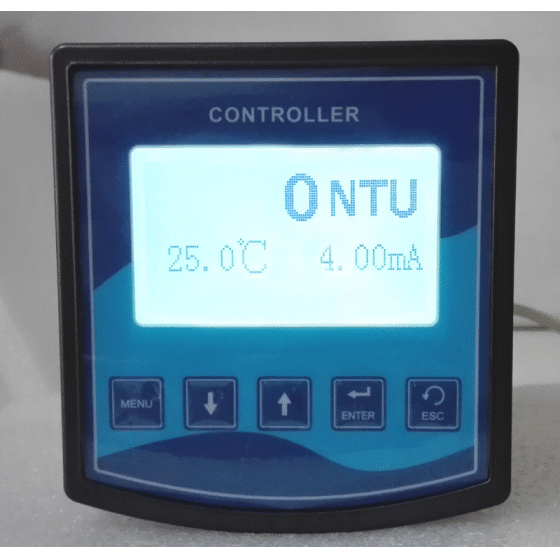

Online Turbidity Controller with Sensor
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | meter2u |
| Model Number: | ZS-6850 |
| Certification: | ISO9000 |
Product description:
Built-in bubble elimination system (circulation), improve the measurement accuracy and stability.
Good repeatability, and is not affected by flow velocity and pressure in the sample (input).
Communication function (optional) : with RS – 485 communication interface (MODBUS protocol compatible), 4 ~ 20 mA current output corresponding value can be set freely.
4-20 mA output current photoelectric isolation.
Hysteresis set arbitrary function, avoid frequent switch relay action,
Adopting the two-point calibration method,
The watchdog function: make sure the instrument does not crash.
The core components are from famous international brand.
Power-fail protection > 10 years.
| Model | ZS-6850 |
| Measure range | Circulation Type: 0-10, 0-20, 0-100, 0-400 NTU Submerged Type: 0-500, 0-2000, 0-4000 NTU, |
| Accuracy | Resolution：0.1%, Accuracy：±1.0%FS，Repetitive：±1.0% |
| Medium temperature | temperature of 0 ~ 60 OC, relative humidity 90% or less |
| Mating electrode | Circulation type Sensor installation OR Submerged type Sensor installation |
| Display mode | Backlit LCD display, adjustable brightness, 128*64 bit LCD |
| Current output | photoelectric isolation can migrate 4 ~ 20mA |
| Control output | Programmable, normally open ,high limit, low limit relay |
| Communication output | RS485 communication, baud rate: 2400, 4800, 9600, 19200 |
| Power | AC-220V or AC-110V |
| Working temperature | Environment range: 0～50℃ relative humidity: ≤85% |
| Overall size | 96×96×168mm（H×W×D） |
| Hole size | 92×92mm |
| Installation method | panel-mounted (embedded) |
