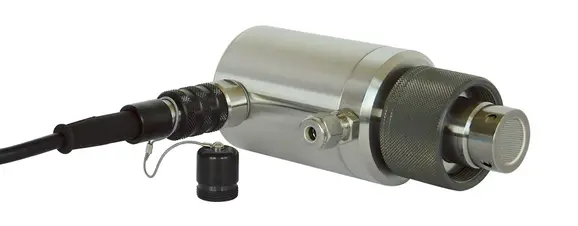

Orbisphere Carbon Dioxide (CO₂) TC Sensor, with nitrogen purge, protection cap, ext. temp. sensor (20 bar)
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Description
Selective gas measurement
Carbon Dioxide TC sensor with nitrogen purge and protection cap. With with external temperature sensor adapter.
Sensor cable to be ordered: 32505.03.
Maximum pressure: 20 bar
This sensor is the successor model for 31460 and 31450.
Benefits
Patented thermal conductivity (TC) sensor design
No sample preparation required, the gas concentration is measured directly in the sample
Rugged construction can handle harsh plant conditions and high sample pressures
High temperature resistance to withstand cleaning in place (CIP)
Fast response time to improve plant productivity
Specifications
Technical Attributes
| Accuracy | (Sample temp. 20 – 50°C within ± 5°C of calibration temperature) The greater of ±1% of reading or ±8 mbar or ±0.012 g/kg or ±0.006 V/V |
| Accuracy 2 | (Sample temperature 0 – 50 °C independent of calibration temperature) The greater of ±2% of reading or ±14 mbar or ±0.048 g/kg or ±0.02 V/V |
| Application | Inline beverage |
| Certifications | 2004/108/EC – EN 61326-1 |
| Cycle Time | 22 s |
| Flow Rate | Typical Flow Rate 100 mL/min |
| Protection Class | IP65 |
| Range | Range at 25 °C, 0 – 10 bar, 0 – 15 g/kg, 0 – 7 V/V |
| Sample Pressure | 0 – 20 bar |
| Temperature Range | -5 – 50 °C |
| Warranty | 12 months |
| Weight | 0.95 kg |
| What’s included? | Sensor only. Controller, sensor cable, flow-chamber or process connection must be ordered separately. |
