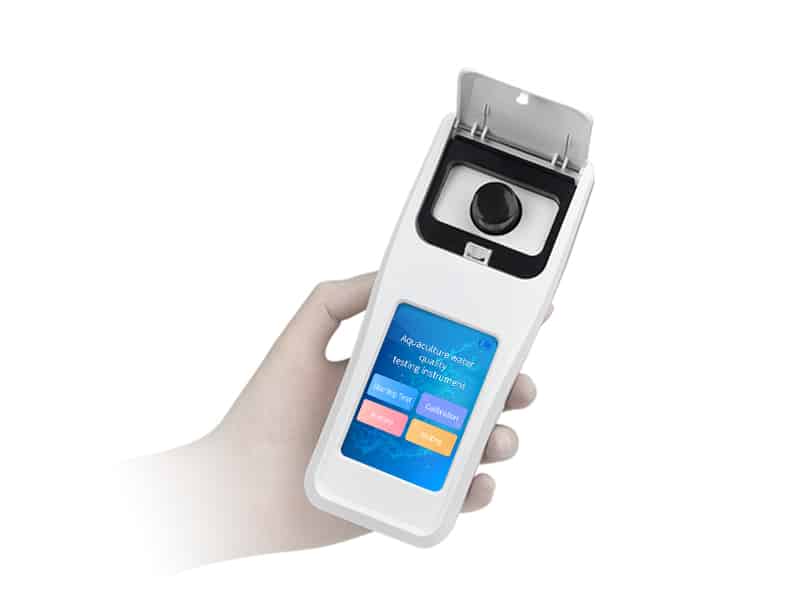

Ozone detector

Product Overview:

The portable water quality ozone detection instrument can be used with rapid color development detection reagents to measure “fast, simple, accurate and stable”. It has a beautiful appearance, simple operation interface, and accurate detection system to help users obtain detailed data, and can analyze water conditions more accurately and effectively, take precautions in advance, and avoid losses in time.

Application Industry:

Applicable to swimming venues, drinking water, tap water, medical waste water, industrial sewage, river monitoring, water source protection, production monitoring, scientific research experiments, etc.

Instrument Features:

① Android smart system, easier and faster operation;

② Configured cloud monitoring platform, the test results can be directly transmitted to the platform wirelessly for long-term and short-term water quality analysis and auxiliary management.

③ Built-in operation process, simple operation, no training required, direct start;

④ Faster detection speed, on-site data reading;

⑥ Portable, small size, light weight, convenient for outdoor detection;

⑦ Small and beautiful appearance, stable operation and maintenance-free, with good cost performance;

⑧ Adopting imported cold light source, stable optical performance, life of up to 100,000 hours;

⑨ AC and DC dual-use, built-in rechargeable lithium battery, environmentally friendly and durable, can support continuous indoor and outdoor work.

Parameter indicators:

Ozone: 0.02~1mg/L, 0.2~10mg/L;

Based on standard: HJ 504-2009

Measurement method: photoelectric colorimetry

Repeatability: <0.5%

Stability: <0.5%

Wavelength selection: automatic

Operating system: Android smart operating system

Display screen: 3.5-inch color LCD touch screen

Sensitivity (absorbance): 0.001

Usage environment: temperature 0~50℃, humidity 0~90%

Data storage: more than 80,000 records

Communication: Type-C, WIFI, hotspot, Bluetooth

Battery: 5600mAh lithium battery

Continuous working time: 8 hours

Power supply voltage: 5V/DC DC

Dimensions: 190*77*72mm

Host weight: 325g

Supported language: Simplified Chinese or English
