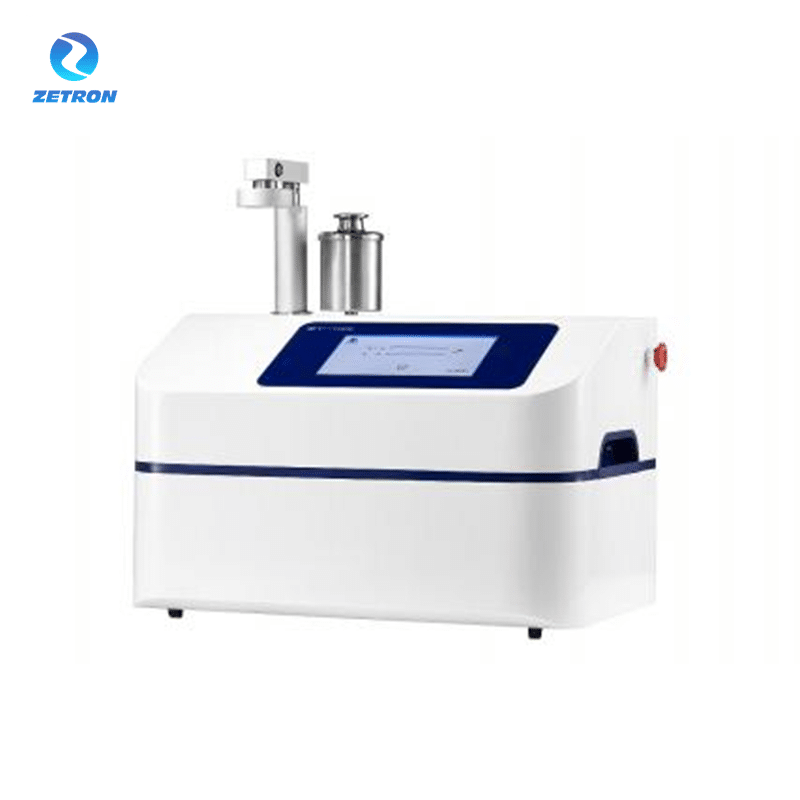

Packaging Leak Tester MFT-1000
1,000.00৳
It is suitable for sealing integrity testing ofpharmaceutical packaging to prevent moisture, oxygen, and microorganisms from contaminating products. Medicines: bottled, bagged, boxed, ampoules, vials, cartridges, prefilled needles (PFS), (BFS), (FFS), etc.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Details
◎Semi-automatic detection, suitable for small batch and multi-variety testing.
◎Non-destructive non-destructive testing, high accuracy, repeatability, sensitivity.
◎The instrument is used for vacuum pressure, pressure decay difference detection.
◎The leak rate can be automatically converted into defect aperture μm. ◎Database storage oftest results for easy quality management.
◎Touch-type man-machine interface, simple and quick operation: after
setting/selecting the test program, only need to manually put in/take out the test sample.
Parameter
|
Differential pressure sensor |
±2kpa, error≤0.5%F.S. |
|
Differential pressure resolution |
0. 1pa |
|
Test pressure sensor |
Error≤±1%F.S. |
|
Test pressure range |
-0. 1～0.2MPa/-0. 1～0.7MPa/-0. 1～1.0MPa |
|
Minimum detectable aperture |
1.5μm ( for IV bag minimum 5μm) |
|
Display method |
10-inch touch color touch screen |
|
Voltage |
AC100V-240V, 50/60Hz, power ≤200W |
|
Weight |
Host: 30kg |
|
Audit trail |
≥5 years of storage Multiple event logs, which can be queried according to time |
|
Authority management |
Login with username and password, level 4 authority, meet FDA 21CFR PART 11 requirements |
|
Print function |
Built-in printer |
|
History record |
≥5 years storage |
|
Data backup |
Support U disk to export data |
|
Signal output |
(4-20) mA, RS485, 12V alarm output |
|
Dimension |
430*655*420（height1）*330（height2)mm |
Application
Spray cans: plunger spray cans; bag-lined spray cans; “energy jacket” spray cans; flexible tube spray cans.
