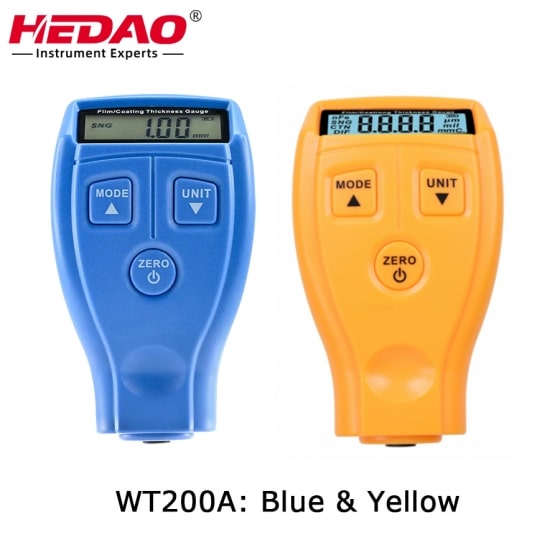

Paint Thickness Gauge Car Coating Thickness Meter for Used Car Buyers

This product is a portable coating thickness gauge, which can quickly, nondestructively, and accurately measure non-metallic coating thickness (such as paint,fim, etc.) of metal substrate. It Is widely used in detection areas like manufacturing industry Car washing industry, metal processing industry, chemical industry,and commodity inspection.

Function
			WT200A	WT210	WT211
Thickness  measurement  of  non-metallic  coating  on  the surface  of  magnetic  metal  substrate			√	×	×
Thickness measurement of non-magnetic surface coatings on magnetic metal substrates			√	×	√
Measuring the non-magnetic film on the magnetic metal substrate			×	√	√
Automatically  identifying  the  non-magnetic  metal substrate  or  magnetic  metal  substrate			×	x	√
Single measurement, continuous measurement and differential measurement available			√	√	√
Zero-point  calibration,2-point  calibration  and  basic calibration  available			√	√	√
Metric  and  imperial  units  of  measurement  optional			√	√	√
LCD backlight			×	√	√
Automatic shutdown			√	√	√
Two  modes(Car/User)			√	x	×
Specification
	WT200A	WT210		WT211
Measurement ranges	0~1.80mm/0~71.0 mil	0~1800μm/0~70.9 mil		0~1500μm/0~59 mil/0~1.5mm
Resolution	0.05mm/2mil(Car)  0.01mm/1mil(User)	0.1pm/1μm/0.1mil		(0.1μm,1μm)/0.1 mil/0.001mm
Measurement error	±0.1mm	±(3%H+1μm)		≤150μm ±5pm
				>150μm±(3%H+1pm)
Min. diameter of substrate	50mm	φ12mm		12mm(Magnetic)
				50mm(Non-magnetic)
Min. thickness of substrate	0.5mm	0.5mm		0.5mm(Magnetic)
				50mm(Non-magnetic)
Operating temperature range	18~30℃	0~40℃		0~40℃
Work humidity range	10~80%RH	10~95%RH		10~95%RH
Power supply
