Plant canopy analyzer

Introduction

HM-G10 plant canopy analyzer can be widely used in agricultural production and agricultural scientific research. In order to conduct canopy light energy resource surveys, measure the interception of light in the plant canopy, and study the relationship between crop growth and development, yield quality and light energy utilization, this instrument is used to measure and record photosynthetically active radiation (PAR) in the 400nm-700nm band. The unit of measurement value is micromole per square meter per second (μmol㎡/second).

Functional features

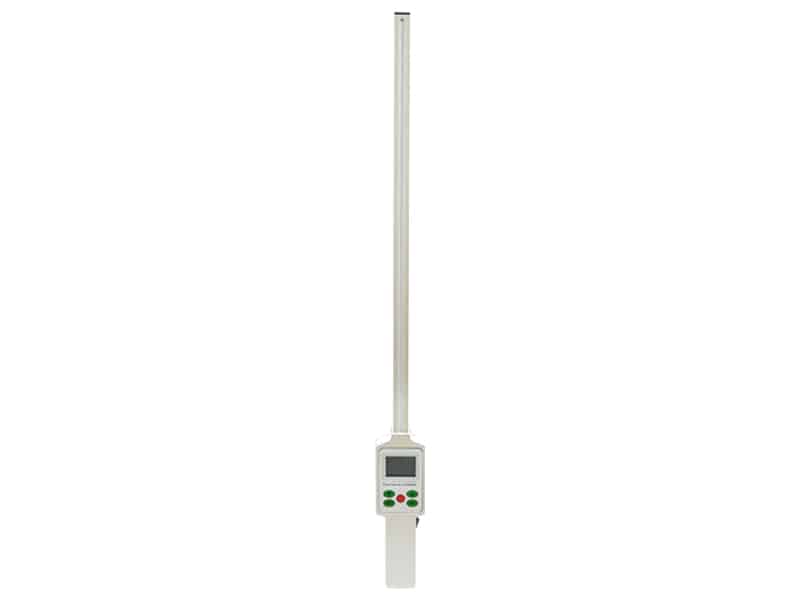

The plant canopy analyzer is an integrated design, including an LCD display, operation buttons, storage SD card and measurement probe. The instrument menu is simple to operate, small in size and easy to carry. The storage medium is a common SD card on the market, with large storage capacity and convenient data management! There is a reasonable power management solution for power consumption. During the test, the instrument automatically enters the standby state according to the actual situation. When needed, press the wake-up button to wake up the screen and observe the actual data. The measurement method is divided into automatic and manual. The minimum time interval for automatic measurement is 1 minute, and the maximum number of automatic measurements is 99 times. For manual measurement, you can collect data manually according to actual needs.

Technical parameters

Measurement range: 0-2700μmol ㎡/second

Resolution: 1μmol ㎡/second

Response time: 10μs

Automatic collection interval: 1-99 minutes

Automatic collection times: 1-99 times

Data storage capacity: 2GB (SD card as standard)

Total instrument length: 75 cm

Probe length: 50 cm

Number of sensors: 25 (standard)

Power supply: 2 No. 5 batteries

Working environment: 0°C-60°C; 100% relative humidity
