Portable automatic weather station TS PWTS should
1,000.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
- Mall catalog number: TS PWTS
- Brand: Tsingsense
The product can be customized according to customer needs, please contact customer service or sales to provide the sensor configuration you need
For pricing, please consult customer service or sales contact number: 400-801-6230

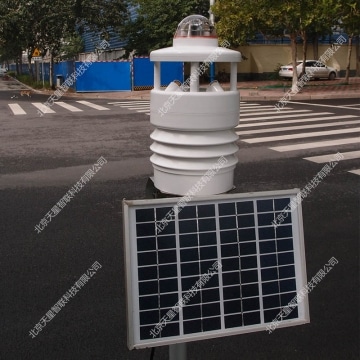

Product introduction of portable automatic weather station TS PWTS emergency mobile meteorological environment monitoring station
TS PWTS portable multi-parameter weather station series is an all-in-one automatic weather monitoring equipment with high precision, easy to move and carry, independently developed by our company. It can be the same
Time measurement: atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, ultraviolet and other meteorological elements, the monitoring system adopts modular configuration, which can be based on customers
Tailor-made to meet the needs of the user. The device is equipped with a solar power supply system and a handheld data collector, which is convenient for users to view the monitoring data in real time anytime and anywhere. The whole system is heavy
The volume does not exceed 5 kg, and it can be operated by a single person, and the user can easily carry it for data collection and analysis at each monitoring point. It is suitable for mobile monitoring, scientific research, environmental forensics and other fields.
Portable Automatic Weather Station TS PWTS Emergency Mobile Meteorological Environment Monitoring Station Product Advantages
Technical Indicators of Portable Automatic Weather Station TS PWTS Emergency Mobile Meteorological Environment Monitoring Station
| Meteorological elements | Measuring range | Resolution | Accuracy | Measuring principle |
| temperature | -40～+60℃ | 0.1℃ | ±0.3℃ | Platinum resistance |
| humidity | 0～100% | 0.1%Rh | ±2%RH | capacitance |
| atmospheric pressure | 10～1300hpa | 0.1hpa | ±1hpa | Silicon piezoresistive |
| Wind | 0～360° | 1° | ±3° | ultrasonic |
| wind velocity | 0～60m/s | 0.1m/s | ±0.3m/s | ultrasonic |
| Rainfall | 0～ 5mm/min | 0.1mm | 5% | optics |
| Ultraviolet | Level 0~15 | Level 1 | ± level 1 | Photoresistors |
| radiation | 0～2000W/㎡ | 1W/㎡ | ≤5% | Silicon photodetectors |
| Optional features: GPRS-a01, WiFi-a02, Ethernet-a03, GPS-b02, battery-d01. | ||||
| Collector | Power supply: 5 dry batteries/USB
POWER-ON POWER CONSUMPTION: 110MA External power supply: 12V 200mA, 5V 500mA |
Operating temperature: -20°C~75°C
SLEEP POWER CONSUMPTION: <2MA Data storage: 32MB |
||
| Basic Information | Interface RS485, two-wire connection

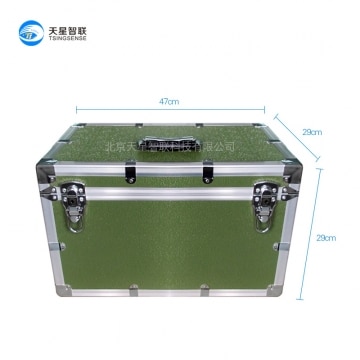

Operating power: DC voltage: 12 ~ 30V: +/-10%, > 20ma Operating temperature: -50°C~ 85°C Operating humidity: 0~100%Rh Product specifications: Carrying case 47cm x 29cm x 29cm Weather sensor 35.4cm x 140cm x 140cm collector 100mm x 205mm x 35mm Product weight: <5kg |
|||
Portable Automatic Weather Station TS PWTS Emergency Mobile Meteorological Environment Monitoring Station Matching Table
| element | PWTS200 | PWTS201 | PWTS300 | PWTS400 | PWTS500 | PWTS600 | PWTS700 | PWTS800 |
| temperature | ● | ● | ● | ● | ● | ● | ● | |
| humidity | ● | ● | ● | ● | ● | ● | ● | |
| Wind | ● | ● | ● | ● | ● | |||
| wind velocity | ● | ● | ● | ● | ● | |||
| atmospheric pressure | ● | ● | ● | ● | ● | ● | ||
| rainfall | ● | ● | ● | ● | ||||
| radiation | ● | ● | ||||||
| ultraviolet | ● |
How to use the portable automatic weather station TS PWTS emergency mobile meteorological environment monitoring station collector
Portable automatic weather station TS PWTS emergency mobile meteorological environment monitoring station system
Portable Automatic Weather Station TS PWTS Emergency Mobile Meteorological Environment Monitoring Station Factory Configuration
1 set of integrated multi-parameter sensor Built-in large-capacity lithium battery
Solar panel 1 piece 5 watts
1 set of handheld collector can display monitoring data
in real time 1 set of tripod 3 meters high when unfolded
1 set
of carrying case 1 set of cables and accessories
Portable automatic weather station TS PWTS emergency mobile meteorological environment monitoring station scene application
