Precise Localization Dual Borehole Camera System Under Water Detect Instrument
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Model Number: | SY |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Borehole Camera | Function: | Well Detection |
|---|---|---|---|
| Winch: | Auto/Manual | Advantage: | Precise Localization |
| Advantage 2: | Clear Image | Warranty: | 1 Year |
| High Light: |
precise localization borehole camera system, manual winch borehole camera system, manual winch borehole inspection camera |
||
Under Water Detect Instrument High Resolution Precise Localization Dual Borehole Camera
Introduction

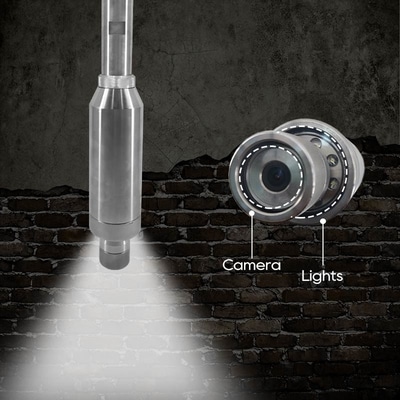

Borehole Camera is a special instrument for well testing, it uses the latest television camera technology, so well wall can be reflected on the monitor very clearly to the ground. The images can be saved on the disk,and it provides the reliable data for the various geological conditions in the mine.
Application
Borehole Camera is suitable for the engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries.it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole,position of fluid sand, bedrock fissures.
Parameters

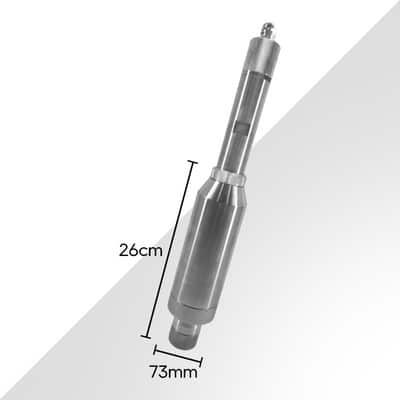

| Borehole Diameter | 65mm Single | 65mm Dual | 73mm Dual | 73mm DualF | 73mm Single | 40mm Single |
| Rotate Angle | 360⁰ | Side Camera 360 ⁰ |
Side Camera 360 ⁰ |
Side Camera 360 ⁰ |
×××××× | ×××××× |
| Camera Number | One | Two | Two | Two | One | One |
| Material | 316L Stainless Steel | 316L Stainless Steel | 304 Stainless Steel |
304 Stainless Steel |
Steel | Steel |
| Bear Pressure | Max.20Mpa | |||||
| Centralizer | Equip With | |||||
| Depth Meter | Digital Depth Meter | |||||
| Controller | Yellow Color | Yellow Color | Black Color | Black Color | Black Color | Black Color |
| Display | 12inch | |||||
| Focus Function | Yes | NO | NO | Yes | NO | NO |
Pictures
