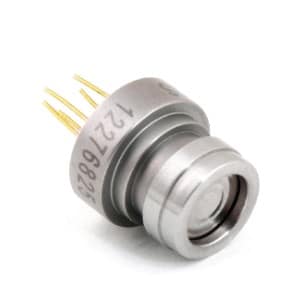

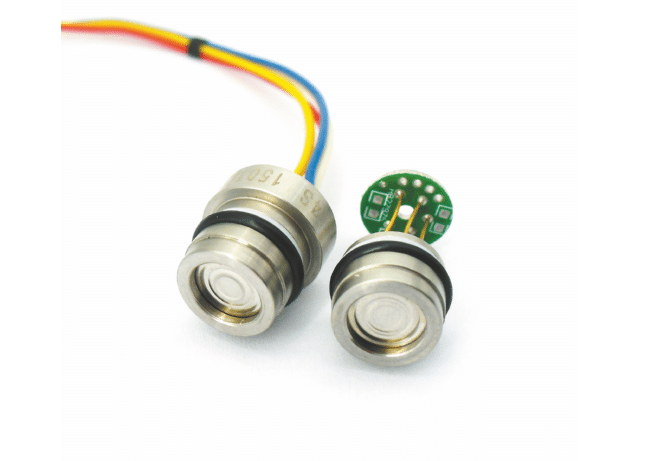

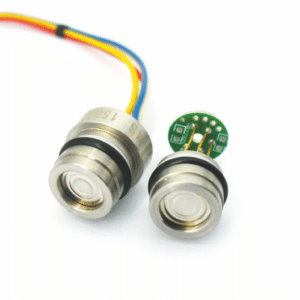

PS13- OEM piezo-resistive silicon pressure sensor
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
Feature
● MEMS technology
● Imported Piezoresistive silicon chip employed

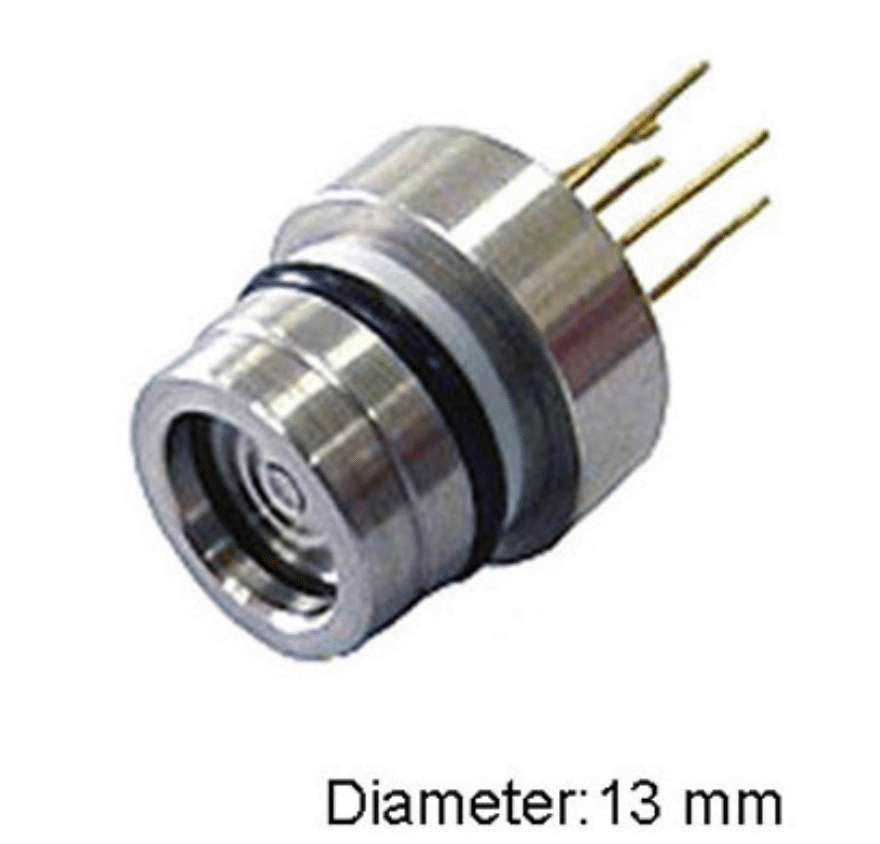

● Sensor diameter:13 mm
● Gas or dilute liquid compatible with 316LSS
Applications
● Industrial process control
● Wastewater and environmental engineering
● Liquid pressure system and switch
Description
PS13 industrial pressure sensor is a standard and common sensor applied in air and chemi-industry, liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Silicon Oil-filled and isolated from measured media by a stainless steel diaphragm and body. The most important specification for industry application is long term stability.
The PS13 sensoris designed for industry application with perfect long term stability.
Speifications
|
Pressure medium |
gas liquid compatible to stainless steel |
||
|
Pressure ranges |
1MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa |
||
|
Pressure type |
absolute (A), sealed gauge (S) |
||
|
Overload pressure |
200%F.S.( <25MPa) |150%F.S.( >=25MPa) |
||
|
Output signal |
Zero Output 2mV 100mV (typical) |
||
|
Accuracy |
0.25%FS (standard) |
||
|
Zero offset |
≤±2mV |
||
|
Long term stability |
<0.2%FS/year |
||
|
Excitation |
1.5mA (typical) |5VDC | 10VDC |
||
|
Compensated Temp. |
– 10°c ~+70°c |
||
|
Operating Temp. |
–40~+125°c |
||
|
Storage Temp. |
–40~+125°c |
||
|
Zero Temp. Coefficient |
0.02%F.S./ °c ( >=4Mpa) | 0.03%F.S. /°c (< 4Mpa) |
||
|
Span Temp. Coefficient |
0.02%F.S./ °c (>=4Mpa) | 0.03%F.S. /°c (< 4kpa) |
||
|
Bridge Resistance |
Min. |
Max. |
Unit |
|
2600 |
5500 |
ohm |
|
|
Vibration |
20g (20— 5000HZ) |
||
|
Response time |
≤1ms |
||
|
Electrical connection |
6-pin or 4-wire |
||
|
Material of membrane |
316L |
||
|
Material of housing |
316L |
||
|
Sealing |
fluoro-rubber sealing ring |
||
|
Filled oil |
silicon oil, or olive oil (hygienism) |
||
|
Wire |

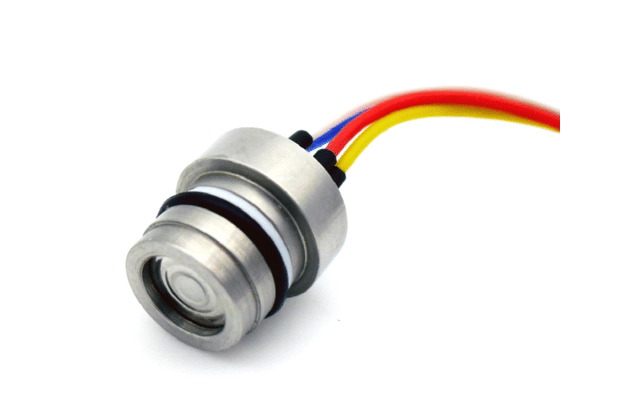

gold-plated kovar pins, or silicon rubber shielded flexible wires |
||
|
Net weight |
15g |
||
