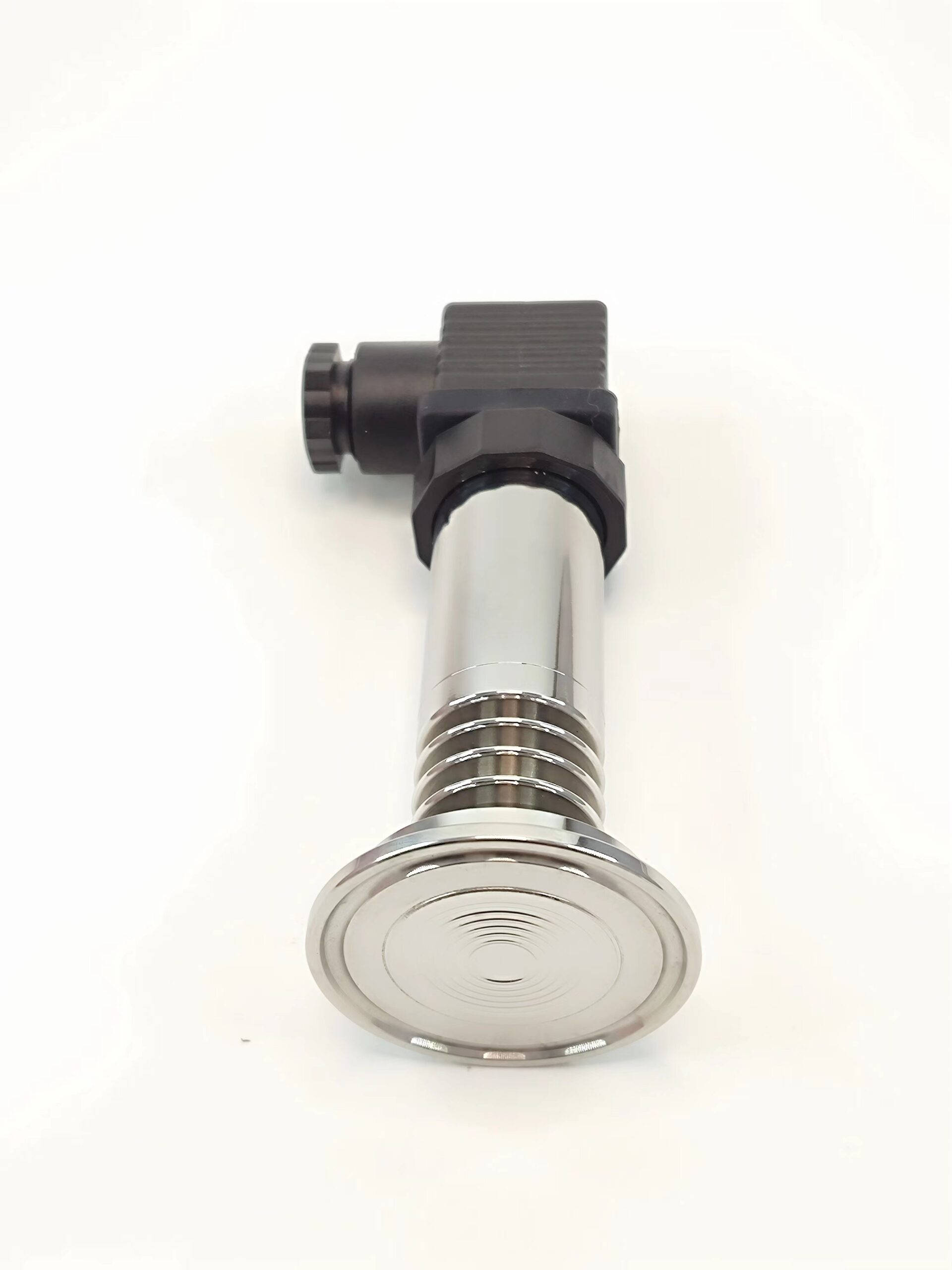

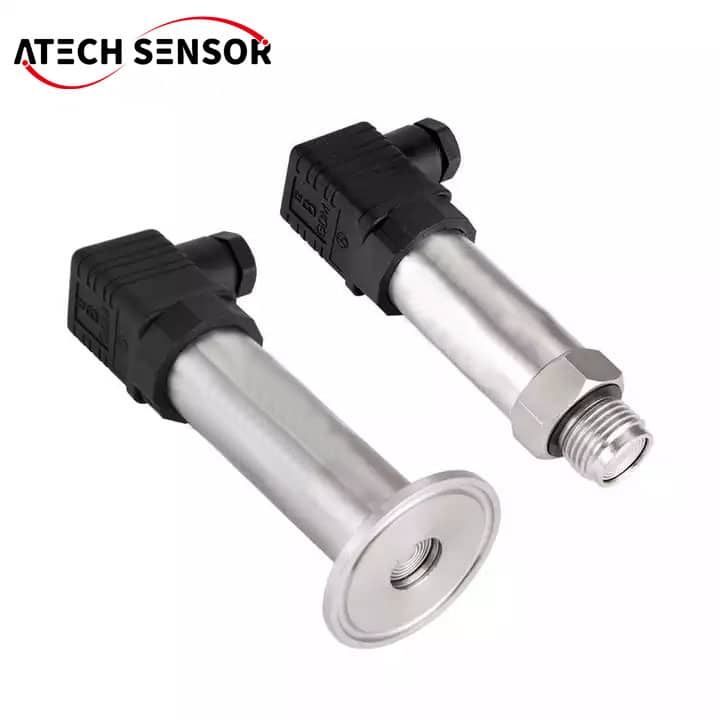

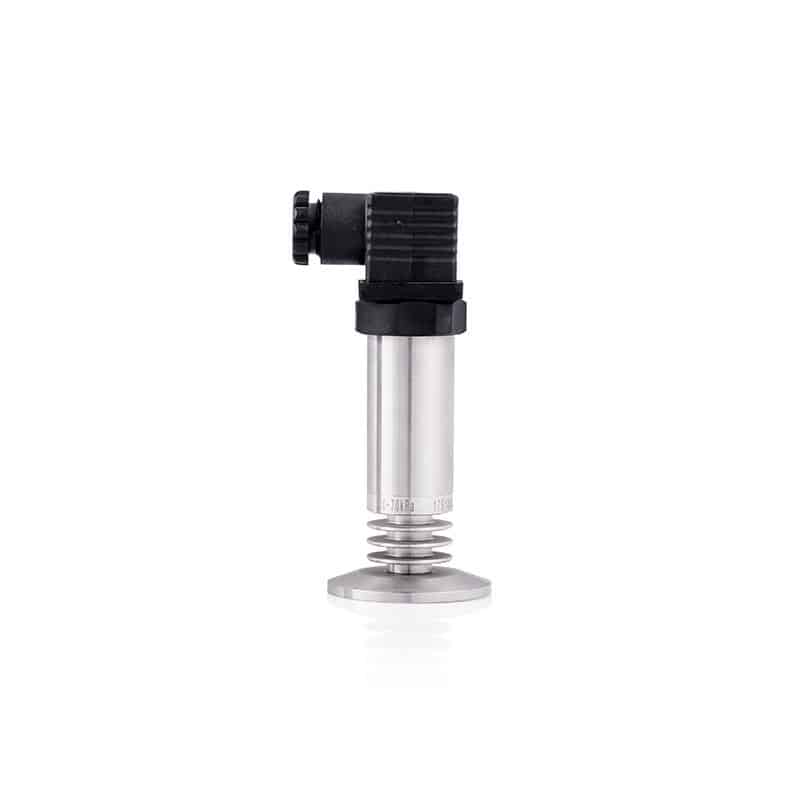

PT206-Flush Diaphragm Pressure Transmitters

PT206 Flush Diaphragm Pressure Transmitters, with hygienic , no crevices or dead spaces design, minimizes the risk of product contamination or bacterial growth, making them ideal for environments that require strict hygiene standards.
The diaphragm in these transmitters is designed to be flush with the process connection surface, eliminating any protrusions or cavities that could trap or accumulate the process media. This smooth, seamless surface allows the viscous fluids or slurries to flow over the diaphragm without any obstructions, minimizing the risk of clogging or buildup.

PT206 Flush Diaphragm Pressure Transmitters are  designed to be installed in a series of hazardous situation and is ideal for use in food, beverage sanitary, medical process and industrial applications where the media is either viscous, contains particulates or solids, which may probably cause the clog or foul.

APPLICATIONS

● Food and Beverage Processing

● Pharmaceuticals

● Biotechnology applications

● Biological products

● Hygiene Industry

● Fuel station

● Gas dispenser

● Flush diaphragm process connection

● Range; 0~0.1bar…100bar

● Accuracy: ±0.25%F.S, ±0.5%F.S (No accuracy losing in full temperature range)

● Stability: ≤0.3%FS/year

● Customized working temperature: -20℃~125℃

● Signal output: 4~20mA, 0~5V, 1~5V, 0~10V

● Power supply: 8~30Vdc, 8~24Vdc, 11~30V

● Diaphragm material: SS316L
