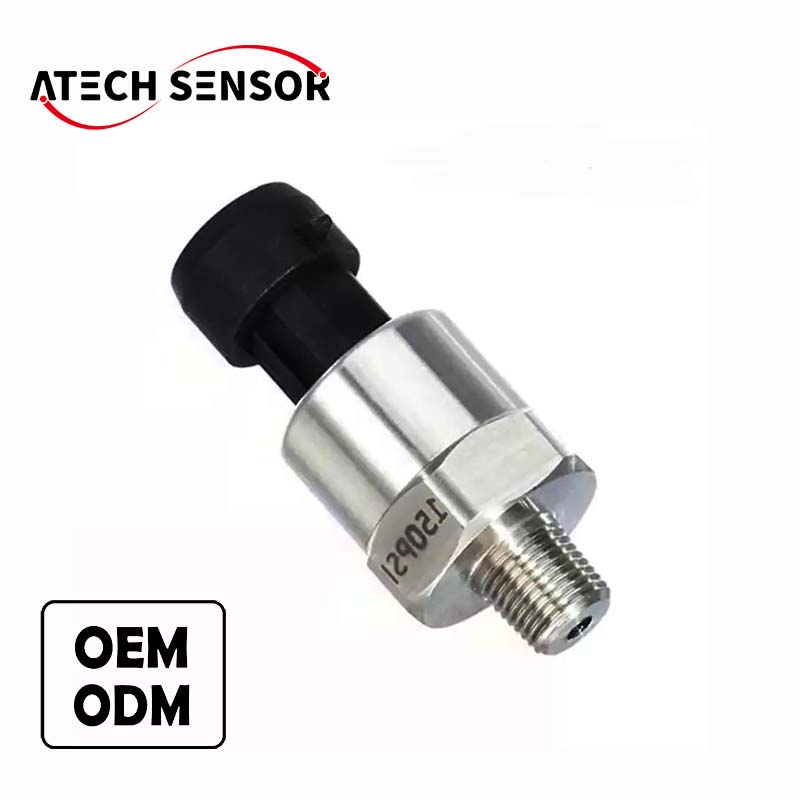

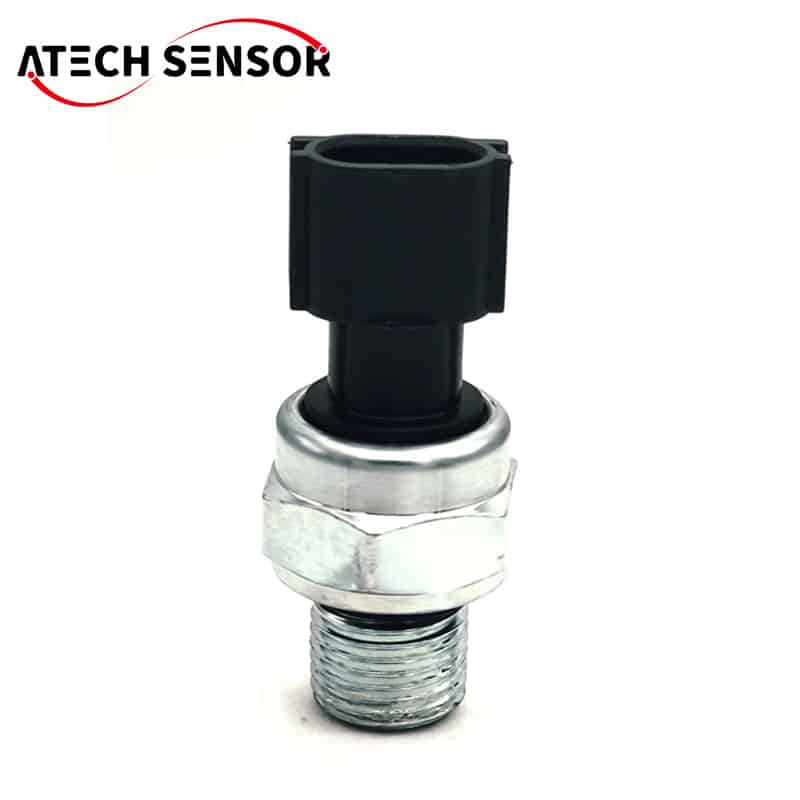

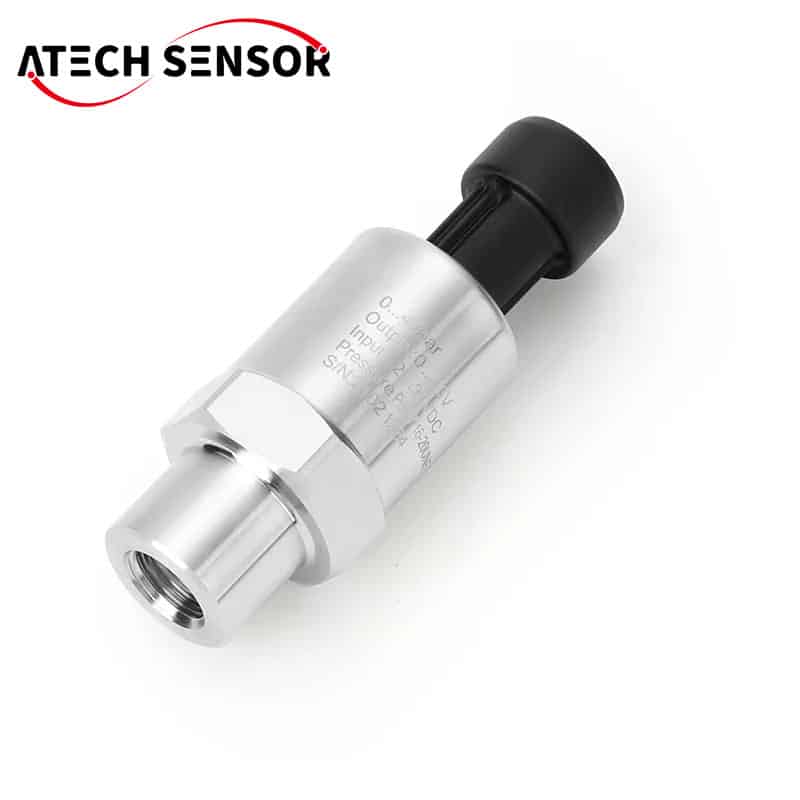

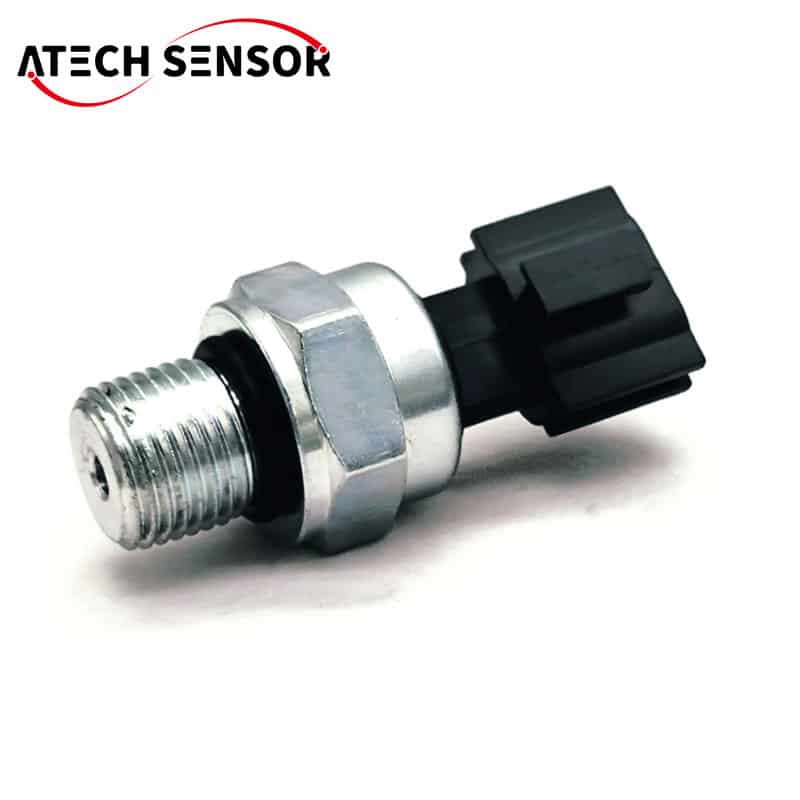

PT208-Ceramic Thick Film Pressure Transducer | Piezo-Resistive
1,520.00৳
PT208 is kind of Ceramic Thick Film Pressure Transducer
APPLICATIONS
● Water-Cooled Screw Units
● Ground Source Heat pumps
● Chillers System
● Water Coolers
● Ice Makers
● Air Conditioning Systems
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
PT208 is kind of Ceramic Thick Film Pressure Transducer which uses monolithic pressure sensor module (ESS501I/V) made with ceramic cell ( ESS501 96% pure ceramic substrate), mounted in dedicated housing. It works following the piezoresistive principle, where the Wheatstone bridge is screen printed directly on one side of the ceramic diaphragm by means of thick film technology and signal conditioning electronics are added to generate 0.5…4.5 V ratiometric output or 4-20mA current signal.
Thanks to the ceramic’s excellent chemical stability, EST3140 can be directly installed on the casing or other accessories using a waterproof ring, without requiring additional protection. This design also allows the it to maintain high stability during temperature changes and overload, ensuring high linearity throughout the sensor’s entire range and minimizing pressure hysteresis effects.
PT208 is especially made for Air Condition & Cooling system industries, we provide many kinds of connection, to make it suit for wide applications.
APPLICATIONS
● Water-Cooled Screw Units
● Ground Source Heat pumps
● Chillers System
● Water Coolers
● Ice Makers
● Air Conditioning Systems
Product Features
● Sensing Principle: Ceramic Thick Film Piezo-Resistive
● Pressure Range: -1bar… 1bar … 50bar
● Overpressure: 200%/FS
● Accuracy: ±0.5%/FS;
● Output: 4mA～20mA, 0V～5V, 0.5-4.5V
● Temperature Compensation: -40-85℃
● Electrical Connection: Packard
● Process Connection: 7/16-20UNF
● Medium: Compatible with SS304/316/Ceramic/NBR
Product Specification
| Pressure Range | -1~1bar…50bar/g | ||
| Overpressure | 200%FS （>300bar 150%FS） | ||
| Integrated Accuracy | ±0.5％FS | ||
| Temperature Compensation | -40~85℃ | ||
| Long-term Stability | ±0.3%FS/y | ||
| Working Temperature | -40~125℃ | ||
| Storage Temperature | -40~125℃ | ||
| Output Signal | 0-5V | Ratiometric 0-5V | 4-20mA |
| Power Supply | 6-36V | 3.0-5.5V | 3.0-5.5V | 11-36V |
| Resistive Load（Ω） | ＞10K | ＞10K | ≤50（U-11） |
| Electrical Connection | Packard | ||
| Ingress Protection | IP65 | ||
| Process Connection | 7/16-20UNF(customized available) | ||
| Wetted Medium | SS304、AIO、NBR（Viton） | ||
| Vibration | 10gRMS，(20~2000)Hz | ||
| Shock | 100g，11ms | ||
| Insulation | >100MΩ @250VDC | ||
| Starting Time | 80ms | ||
| Response Time | <1ms（@ 90%FS） | ||
| EMC: IEC61326-1 B | Electrostatic discharge immunity ：IEC61000-4-2 | Immunity to electromagnetic field ：IEC61000-4-3 | EFT immunity ：IEC61000-4-4 |
Product Dimensions
