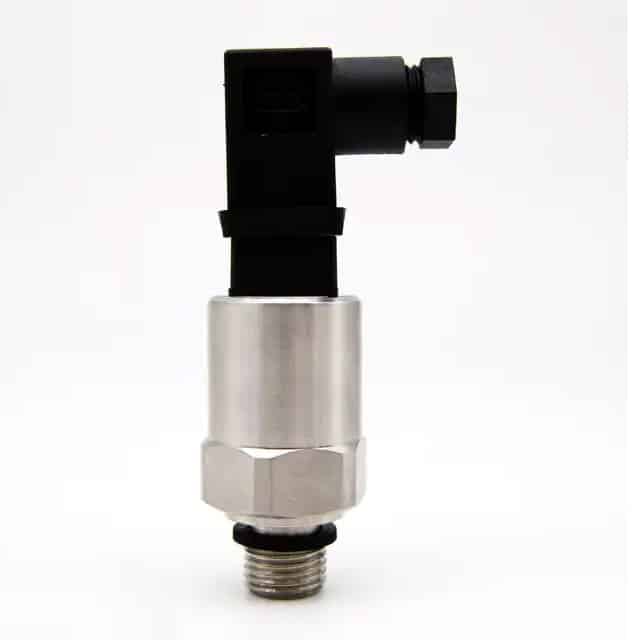

PT210-Refrigeration Pressure Transducers

PT210 line is low-cost pressure transmitter of high quality and reliability. Aiming for both civil and industrial purposes, the product is available for OEM. Being small in size and light in weight, the compact product is widely used for the field measurements of compressors, automobiles and air conditioners. PT210 Pressure Transmitter for Water-Chilling/Heat-Pump Unit

Application
Frequency Compressor | Building water supply | Hydraulic control | Air conditioning unit | Automobile engine | Automatic detection system | Hydraulic station| Refrigeration equipment

Technology
Piezoresistive based transducers rely on the piezoresistive effect which occurs when the electrical resistance of a material changes in response to applied mechanical strain. In metals, this effect is realized when the change in geometry with applied mechanical strain results in a small increase or decrease in the resistance of the metal. The piezoresistive effect in silicon is due primarily to changes at the atomic level and is approximately two orders of magnitude larger than in metals.
Sputter deposited thin film pressure sensor is a kind of Piezoresistive pressure sensors, difference exist that the thin-film sensor consists of a resistor pattern that is vaporized or sputter-deposited  onto the force-summing element (the measuring diaphragm). In some transducers the resistors are not directly mounted on the diaphragm but are on a beam linked to the diaphragm by a push rod.

● Pressure type: Gauge/Absolute Pressure

● Range: 0~2bar~600ba

● Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S

● Stability: 0.5%F.S/Year(typical), 1.0%F.S/Year(maximum)

● Customized working temperature: -40℃~100℃

● Signal Output: 4~20mA, 0.5~4.5V

● Power supply: 10~30Vdc, 5V(Ratio)

● OEM: Available
