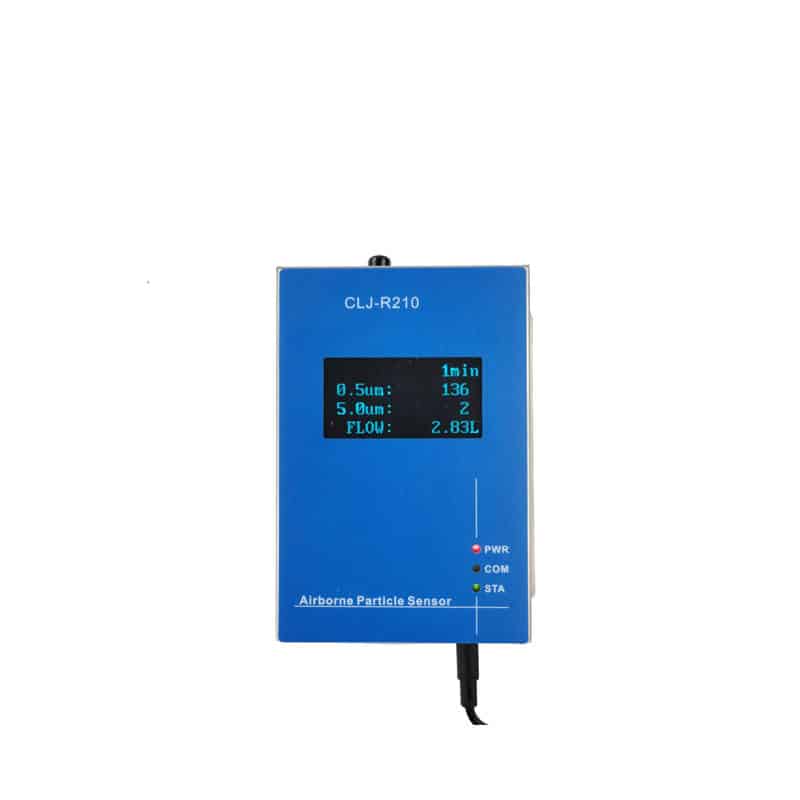

R210 Cleanroom Monitoring Airborne Particle Sensor

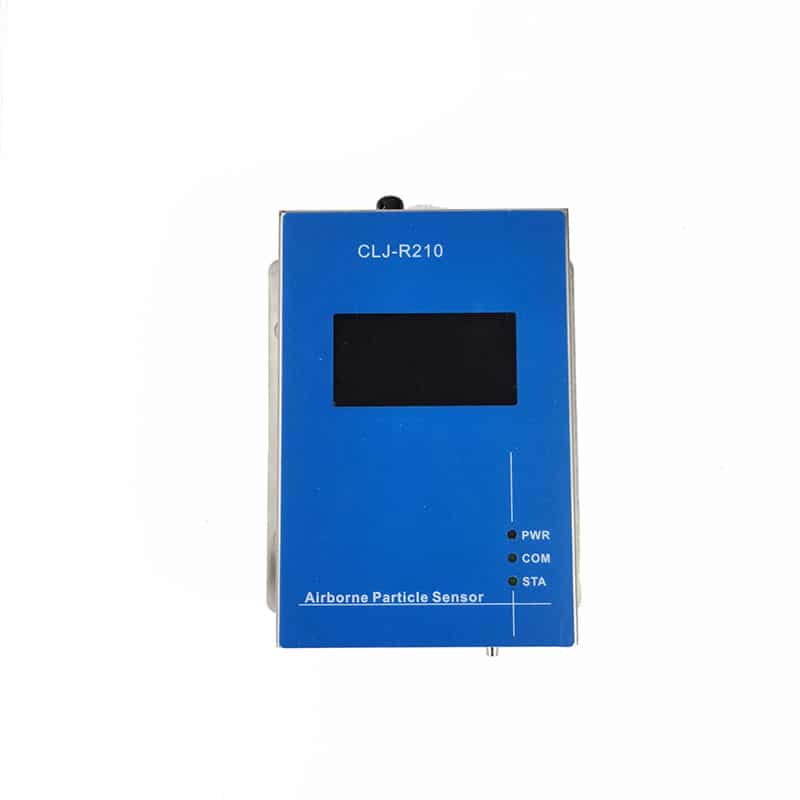

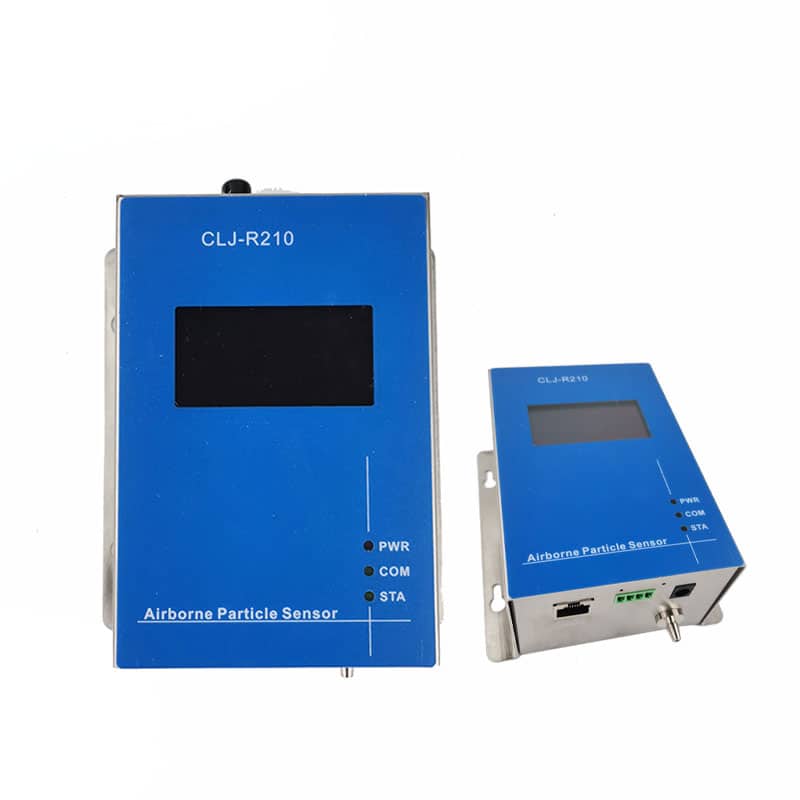

R210 Remote Airborne Particle Sensor

R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4.

If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.

Features:

1. Reasonable structure design, compact size, easy installation

2. Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm

3. Sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional

4. Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator

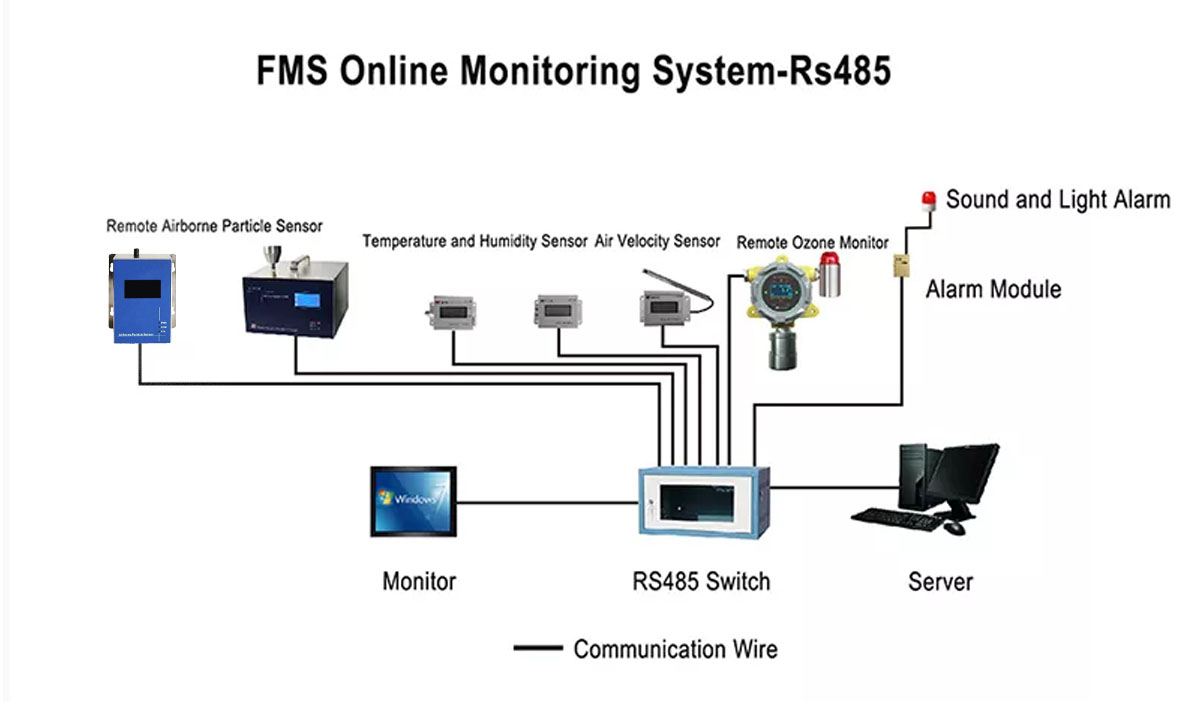

5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected

6. Using foreign original laser diode and vacuum pump, long service life

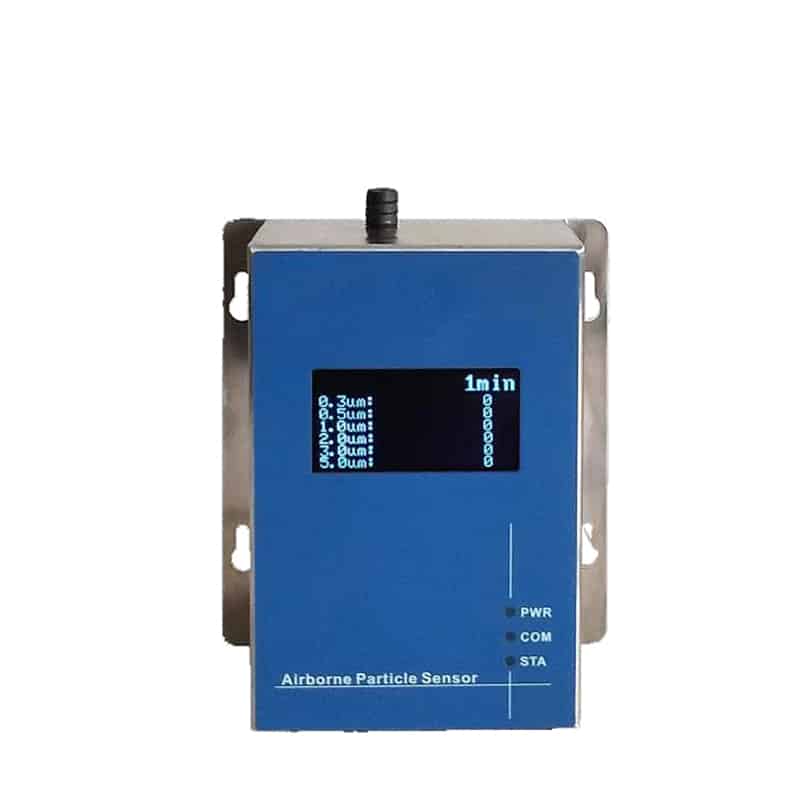

7. 2.4 inch OLED display, intuitive and clear reading

8. 316 stainless steel housing can be customized

9. Customizable explosion-proof sensor

Parameter

Model	R200 (2.83L/min） R300 (28.3L/min）	R210 (2.83L/min） R310 (28.3L/min）	R310P (28.3L/min）

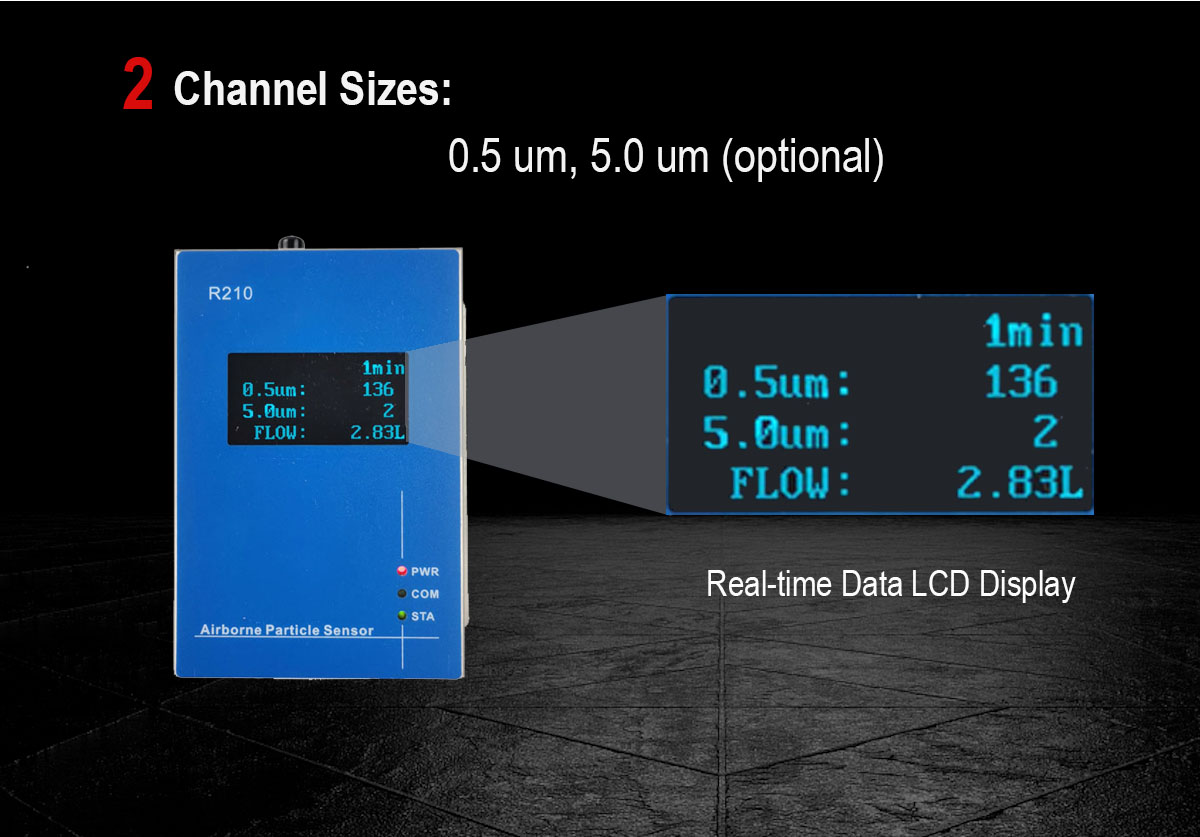

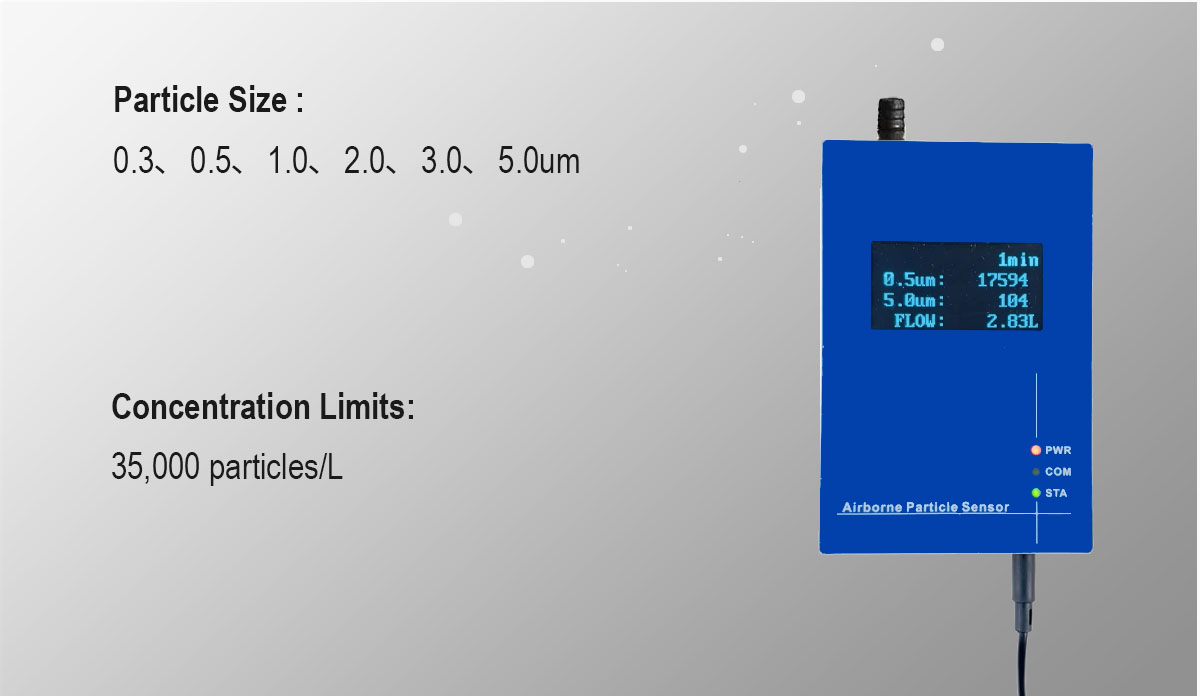

Channel sizes	Two Channels:     0.5μm、5.0μm Three Channels:  0.3μm、0.5μm、5.0μm Four Channels:    0.3μm、0.5μm、1.0μm、5.0μm Six Channels:       0.3μm、0.5μm、1.0μm、2.0μm、3.0μm、5.0μm (Customizable)
Display	X	Customizable 2.4 inch OLED	Display 2.4 inch OLED
Output	RS485(modbus)	RS485(modbus) or TCPIP(modbus) （TCPIP has no extended output）
RS485(modbus) Extended Output	X	4-20mA（2 channels）; 0-5V（2channels） Relay（2channels）; WiFi; LORA
Power Supply	12-24V	12-24V（RS485（modbus)） 12-24V、48V Standard POE（TCPIP（modbus)）
Pump	External pump	Built-in pump（R210） External pump（R310）	Built-in pump
Weight & Size	0.2-0.3Kg 106.5×76×49（mm）	0.9Kg 135×120×60（mm）	2.6-2.8Kg 217×250×138（mm）

Application



Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.

These units provide immediate results that allow you to proactively monitor your environment.
It’s widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
