Rainfall monitoring equipment principle|quotation-fall

• Mall item number: RS-100H
• Brand: Tsingsense

Rainfall is one of the important parameters of meteorological elements, and rainfall is a phenomenon in nature. It can both benefit humanity and bring disaster to humanity. Therefore, quasi

Accurate measurement of rainfall intensity and rainfall has always been an important issue faced by meteorological measurement units across the country. Nowadays, our company has developed a fully automatic photoelectric rainfall monitoring

The device is a rainfall monitoring sensor, which has been widely used in various industries.

Rainfall Monitoring Equipment Principle|Quote-Rainfall Monitoring Instrument-Optical Rainfall Sensor Product Description

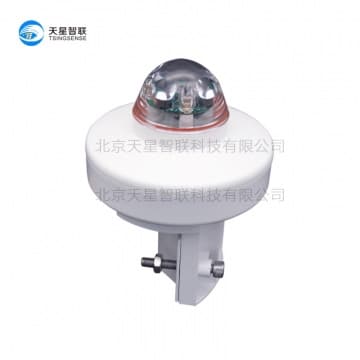

RS100H optical rain sensor is a small instrument that automatically monitors rainfall changes and has the functions of data collection, storage and transmission. Built-in multiple optical probes

and use remote measurement to accurately measure rainfall and rainfall intensity. It is characterized by maintenance-free design, high precision, fast response time, and a variety of serial port outputs, which is easy to use

Measurements are made directly from a PC or an external instrument. Compared with the traditional tipping bucket rain bucket or collection rain bucket, the RS100H rain gauge has a faster response efficiency

Wider measuring range and maintenance-free benefits. It is widely used in urban flood early warning rainfall monitoring system, meteorological station (station), hydrological station, drainage and irrigation, agriculture, etc

Forestry and other rainfall monitoring.

Rainfall Monitoring Equipment Principle|Quote-Rainfall Monitoring Instrument-Optical Rainfall Sensor Product Features

◆ Support ASICII code, MODBUS protocol

◆ The light transmittance of the probe is higher after special treatment

◆ Support RS485 signal output

◆ Automatic calibration at start-up

◆ Simple installation, suitable for a variety of complex installation environments

◆ Maintenance-free design (fallen leaves are not easy to cover).

◆ Long service life (more than 5 years).

◆ Low-power consumption design, high-precision measurement index

Rainfall Monitoring Equipment Principle|Quote-Rainfall Monitoring Instrument-Optical Rainfall Sensor Product Function

Rain measurement function: After the sensor detects the rainfall, it transmits the signal to the motherboard, performs signal processing, and outputs the cumulative value of rainfall through the RS458 signal，

                  ASCLL code and modbus protocols are available

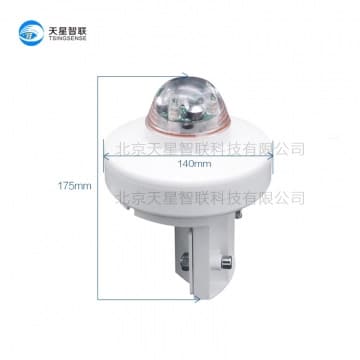

Rainfall Monitoring Equipment Principle|Quote-Rainfall Monitoring Instrument-Optical Rainfall Sensor Product Parameters

Principle of rainfall monitoring equipment|Quote-Rainfall monitoring instrument-Optical rainfall sensor FAQ answers

Q: How does the product work?

A: Infrared light sensing principle.

Q: Can I work at night?

A: Yes.

Q: What is the delivery date of the product?

A: 3-5 working days after the arrival of the payment, the goods will be shipped by express mail.

Q: What does a signal from a sensor represent?

Answer: One signal represents 0.1mm in rain measurement mode, and one signal represents rain in rain sensing mode.

Q: If there is dust on the surface of the probe for a long time, is the sensor inaccurate?

A: The sensor detects that raindrops are sliding on the surface of the probe, and the dust on the surface has little effect on the probe.

Q: What are the advantages of your sensors compared to traditional rain gauge barrels?

Answer: The traditional rain bucket is large in size, and the installation needs to be made of cement foundation, and the drainage outlet is easy to be blocked, and someone needs to maintain it regularly.

Our sensors are small, easy to install, and have low maintenance costs.

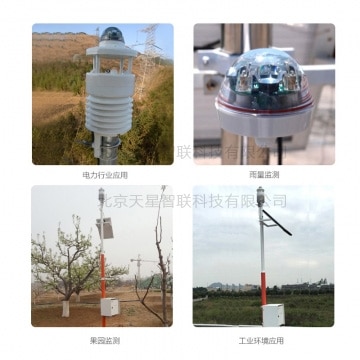

Principle of rainfall monitoring equipment|Quote-Rainfall monitoring instrument-Optical rainfall sensor application scenario-Beijing precipitation monitoring project

Beijing Mountain Monitoring Project
