Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
1,520.00৳

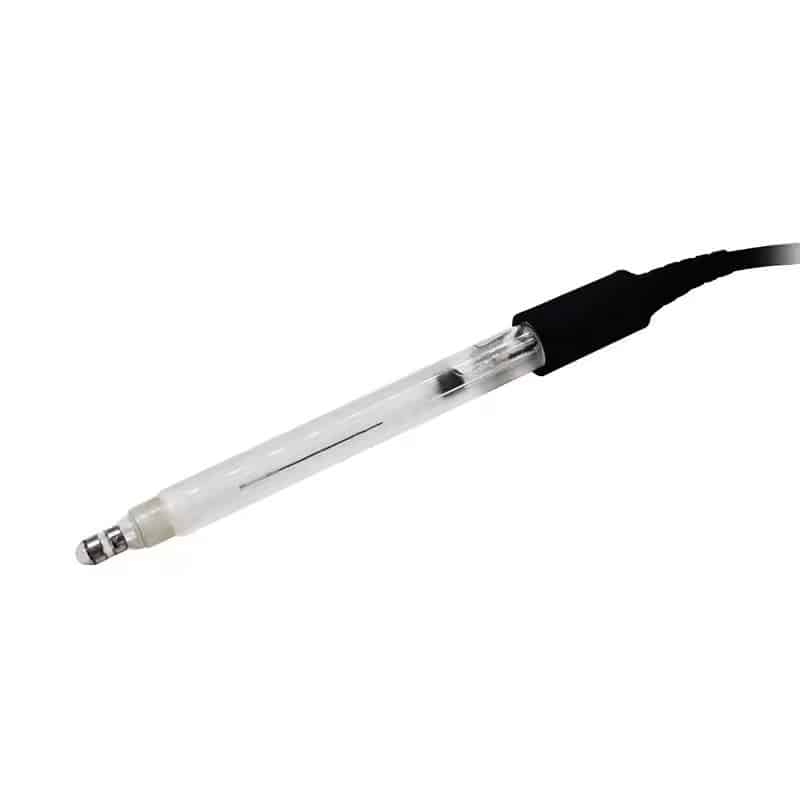

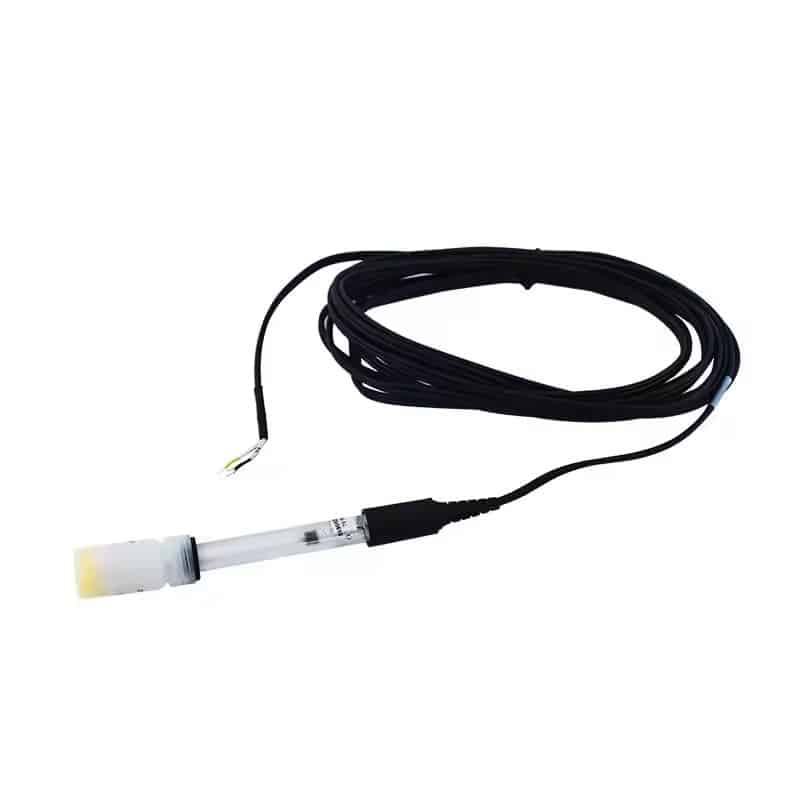

The probe uses a high-precision potential probe.
Feature
1.Protection level: IP65 (waterproof, dustproof, moisture-proof)
2.Digital LCD display and English operation menu.
3.The main components are imported from foreign famous brands.
4.High precision, high stability and strong anti-interference ability.
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
Advantage

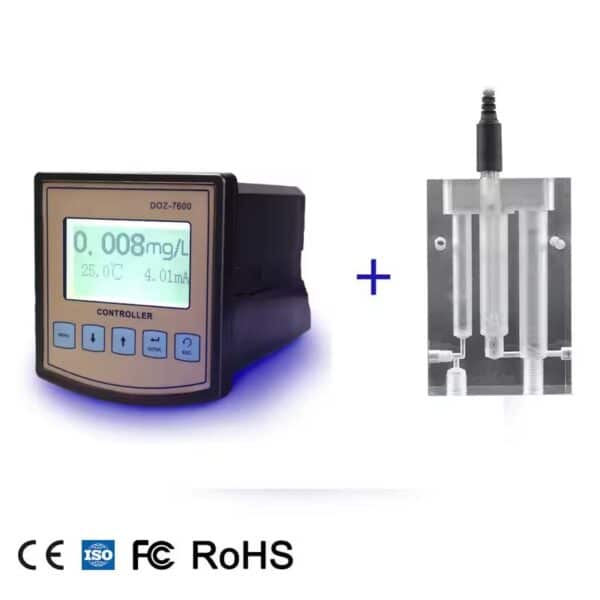

The advantages of the probe are that it does not require the addition of reagents, does not require the replacement of the membrane head, is simple to maintain, and has a service life twice that of other electrodes. The probe uses a high-precision potential probe. Due to the high-precision requirements, we also sent a free flow cell to make the measurement more accurate.
Product Features
|
main feature
|
|||
|
Protection level: IP65 (waterproof, dustproof, moisture-proof)
|
|||
|
Digital LCD display and English operation menu.
|
|||
|
The main components are imported from foreign famous brands.
|
|||
|
High precision, high stability and strong anti-interference ability.
|
|||
|
Temperature compensation function: manual/automatic.
|
|||
|
Watchdog: Make sure the meter doesn’t die.
|
|||
|
ABS plastic shell (waterproof, dustproof and moisture-proof).
|
|||
|
Analog output: 4 ~ 20mA
|
|||
|
Multiple parameters displayed simultaneously: ozone value, temperature, output current and range capability alarm etc.
|
|||
|
Adopt advanced new constant pressure sensor. No need to replace membrane and reagent. It is easy to maintain, high sensitivity, high stability and fast response.
|
Product Specification
|
Technical Parameters
|
|
Measuring range
|
Ozone 0-20.00 mg/L (ppm)
|
||
|
resolution
|
0.01mg/L
|
||
|
Accuracy
|
± 1% or ± 0.01 mg/L,
|
||
|
Control interface
|
Two sets of on/off relay contacts, divided into high and low alarm control
|
||
|
Analog Output
|
4 ~ 20mA or RS485
|
||
|
Relay
|
The relay hysteresis value can be freely set. Relay load: 3A 220VAC/24VDC.
|
||
|
Working conditions
|
Ambient temperature 0 ~ 60 ℃, relative humidity ≤ 90%
|
||
|
Output load: <750 Ω (4-20mA)
|
Working voltage: 220VAC10%, 50/60Hz.
|
||
|
Dimensions: 96 x 105 x 168 mm
|
Hole size: 92 x 92 mm
|
Shipping Information
Out Of Dhaka: 1–3 working days for most locations within Bangladesh and cost only ৳120 TAKA.
Know more details.
Return Policy
You may return items purchased from Meter BD Shop within 7 days of receiving the product.
To be eligible for a return, the product must meet the following conditions:
1. Unused, 2. In the original packaging & 3. Proof of purchase.
