Root Analysis System

Purpose:

HM-GX02 root analysis system is a set of professional root washing, and can also be used for root box culture plant root phenotype analysis, can analyze root length, diameter, area, volume, root tip count, etc., powerful functions, simple operation, the software can analyze the morphological analysis of plant roots and the overall structural distribution of the root system, etc., widely used in root morphology and structure research.

Principle:

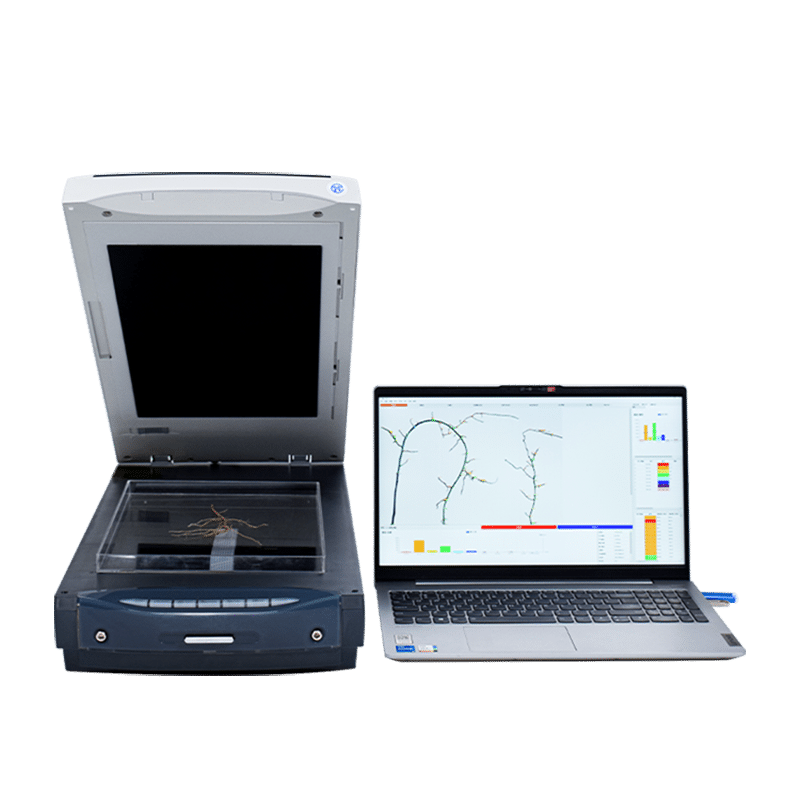

HM-GX02 root analysis system uses a high-quality graphic scanner to obtain high-resolution plant root color or black and white images. The scanner is equipped with a special dual-light source lighting system under the scanning panel and in the upper cover, and a dual-light source calibration area is reserved on the scanning panel. In addition, it is also equipped with special, high-transparency root placement trays of different sizes. During scanning, the light source under the scanning panel and the light source in the upper cover simultaneously scan the root samples in the high-transparency root plate, which can avoid the shadows and unevenness that are easy to occur during root scanning, and effectively ensure the quality of the acquired image.

This soft root analysis software can read images in TIFF and JPEG standard formats. For the acquired images, the high-quality root images obtained by scanning are analyzed using the software decrypted by inserting the dongle. The basic morphological parameters such as the length, diameter, area, volume, and root tip of the cross-overlapping part of the root system are measured and calculated using non-statistical methods. This meets the researchers’ research on different categories and levels of plant roots.

Technical indicators:

1. Equipped with an optical resolution of 4800×9600 and an A4-lengthened dual-light source color scanner. The root reflection draft format is 355.6mm×215.9mm, the through-scan format is 320.0mm×203.2mm, and the minimum pixel size is 0.005mm×0.0026 mm.

2. Analytical measurements:

(1) Total root length;

(2) Branching frequency;

(3) Average root diameter;

(4) Median root diameter;

(5) Maximum diameter;

(6) Total root area;

(7) Total projected area;

(8) Total root volume;

(9) Root tip count;

(10) Fork count;

(11) Overlap count;

(12) Root diameter grade distribution parameters;

(13) User-defined segmented diameters at unequal intervals, automatically measuring the length, projected area, surface area, volume, etc. of each diameter segment, and its distribution parameters.

(14) Root color analysis can be performed to determine the number of surviving roots, and output the diameter, length, projected area, surface area, and volume of roots of different colors.

(15) It can perform topological analysis of the root system, automatically determine the number of root connections, relationship angles, etc., and can also automatically analyze the length, area, volume, etc. of the main root or any lateral root separately. It can display the corresponding parameters of any diameter segment of the marked root system separately (customizable at unequal intervals).

(16) It can automatically measure the fractal dimension of the root system using the box dimension method. It can analyze the proportion of rhizobium volume in the root system to objectively determine the contribution of rhizobium body.

(17) It can perform large-scale fully automatic root system analysis, and can edit and correct each analysis result graph.

(18) It can perform large-scale automated estimation of root biomass distribution.

(19) It can analyze the characteristics of the angle of azimuth, horizontal angle analysis, and main root extraction analysis.

(20) Each analysis image, distribution map, and result data can be saved and exported to an Excel table, and the analysis mark map can be exported.

(21) The instrument has cloud platform support, and the analysis data can be saved to the cloud for viewing anytime and anywhere.

Image capture system parameters:

Scanning element: 6-line alternating microlens CCD

Maximum format: A4

Interface type: USB2.0

Optical resolution (dpi): 6400x9600dpi

Maximum resolution 12800×12800dpi

Minimum pixel size ≥0.005mm×0.0026 mm

Scanning light source white cold cathode fluorescent lamp CCFL, color bit number 48 bits

Scanning range 216×297mm

Scanning speed reflective draft, A4, 300dpi: monochrome 11 seconds, color 14 seconds

Film scanning, 35mm, 2400dpi: positive: 47 seconds, negative: 44 seconds

Standard configuration:

1. 1 set of plant software USB flash drive and software lock

2. 1 set of dual-light source color scanner with optical resolution 4800×9600 and A4 extension

3. 3 root imaging disks

Other configurations:

1. This product requires the use of a computer, recommended options: brand computer (Core i5 9th generation or above CPU / 16G memory / 21.5” color display / wireless network card, 4 or more USB2.0 ports, operating environment Windows 10 full professional or ultimate version).

2. Optional A3 format dual-light source color scanner. Reflective draft scanning format 305mm × 431.8 mm, root system scanning area 304.8 mm × 406.4 mm.
