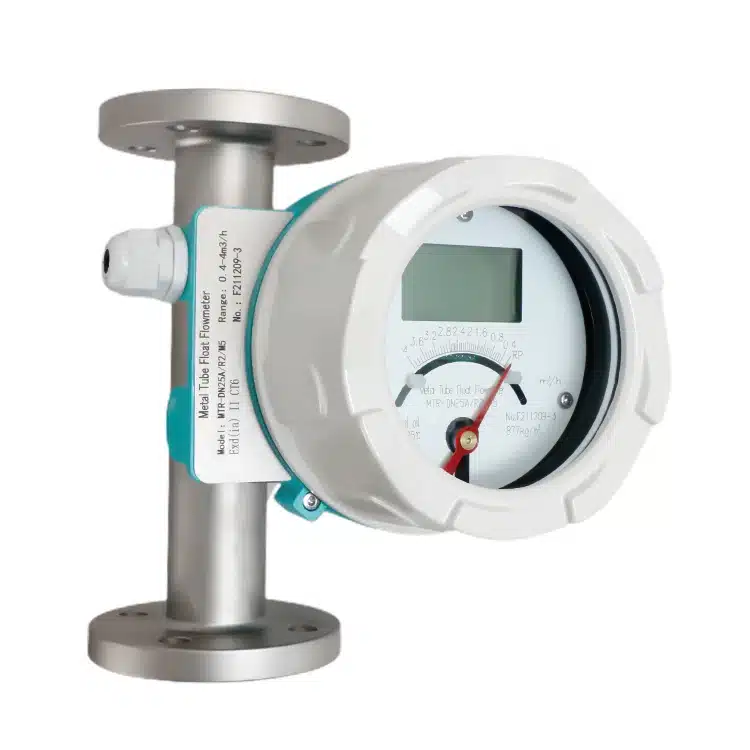

Rotor Flowmeter
1,520.00৳
Model:MTR
Measure the flows of liquids, gases and steam of low flow speed and small flow rate.
Applications:
√Cooling Systems
√Chemical Injection
√Hydraulic Systems
√Water Treatment
√Oil & Gas Industry
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
Metal tube rotor flow meter MTR is an essential instrument in industrial automation for variable area flow measurement. It excels in small size, wide applicability, and user-friendly design.
The rotor flowmeter operates on the principle of a rotating impeller. It is employed for monitoring flow rates of liquids including oil, water, chemicals, and fuels, especially effective in low flow speed and small flow rate scenarios. MTR offers critical flow data for process control and optimization.
Key advantages of our rotor flowmeters include high accuracy, wide operating range, robust construction, and minimal maintenance requirements. Its simple design and ease of installation make it a cost-effective solution for flow measurement applications.
Product Features
- Small caliber and low-speed medium capable
- Low requirement for the straight tube section
- Dual-line display, instantaneous/ cumulative flow rates displayed at the field
- With a keyboard on the indicator for convenient operation and setting
- All in metal construction, designed for measuring corrosive medium of high temperature, high pressure and strong
- Non-contact magnetic coupling transmission, applicable for inflammable and explosive occasion
- With the functions of data recovery, data backup and power failure protection
Product Specification
| DN Size | DN15,DN25,DN50,DN80,DN100,DN150 (Others on request) |
| Range of flow | Liquid:1.0～150000l/h
Gas:0.05～3000m3/h |
| Medium temperature | Standard:-30℃～+120℃,high temperature:120℃～350℃ |
| Output signal | 4～20mADC (two-wire configuration);
attached HART Protocol allowed |
| Pressure rating | DN15,DN25,DN50:4.0MPa (Max: 20MPa) DN80,DN100,DN150:1.6MPa (DN80:Max 10MPa; DN100:Max 6.4MPa; DN150:Max 4.0MPa) |
| Power supply | 24VDC(12～36VDC) |
| Precision | 0.5F.S, 1.0%F.S |
| Housing protection grade | IP65 |
| Explosion-proof | Intrinsic safety type:ExiaIICT6,
Explosion-proof type:ExdIICT6 |
Product Dimensions
