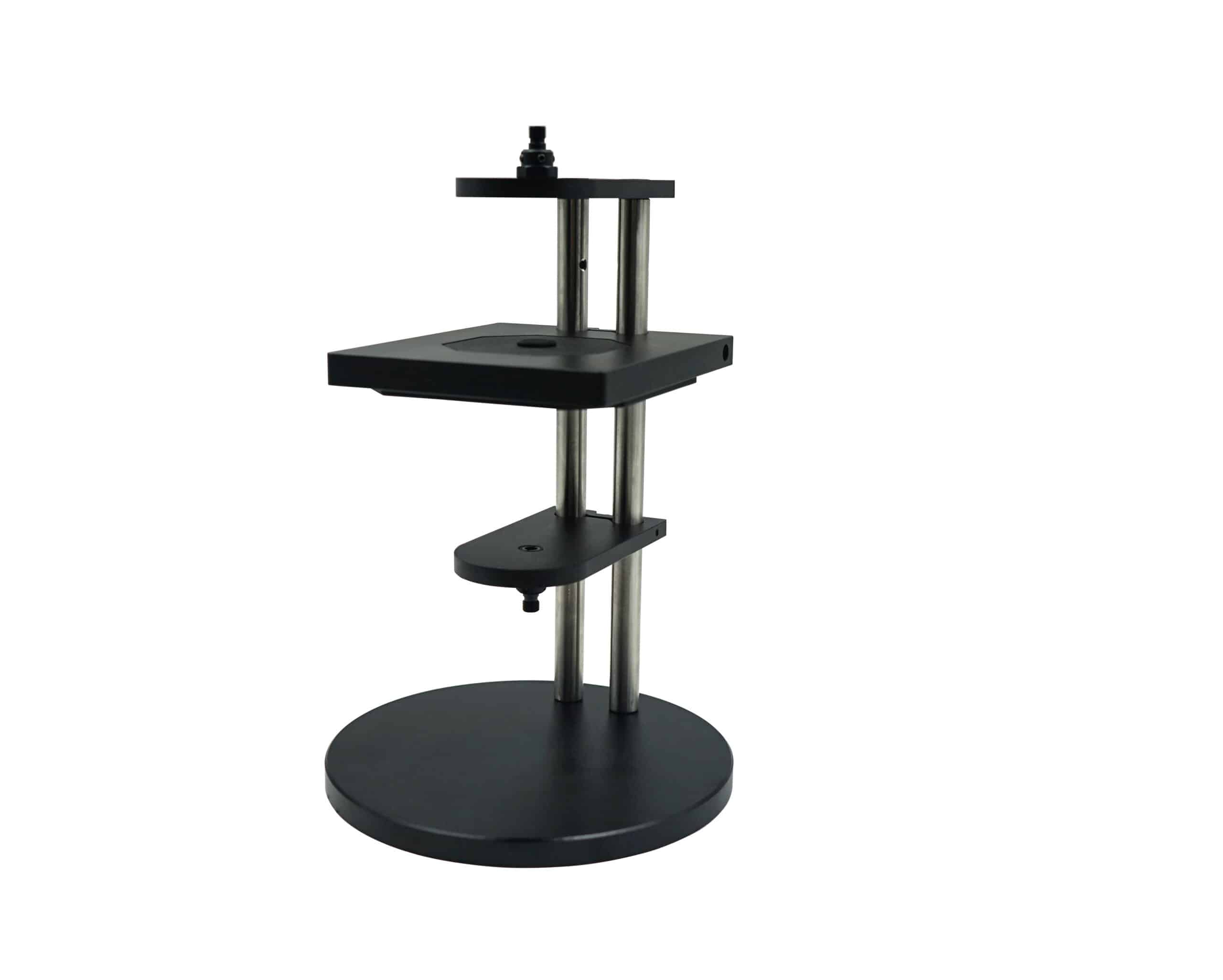

SA-Stage-RT Transflective Measurement Bracket
1,520.00৳
Model :SA-Stage-RT
Keyword :Reflective/transmittive/diffuse spectroscopy Measuring bracket
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Introduction
The SA-Stage-RT Transflection Measuring Bracket is a new type of sampling bracket that can meet transmission and reflection measurements. Suitable for the analysis of materials such as silicon, metal, glass and plastics. SA-Stage-RT has a variety of combinations with fiber optic spectrometers, light sources, and integrating spheres from Oceanhood Opto-electronics. It can meet the customer’s needs for reflection measurement and transmission measurement at the same time.
Feature
◆ Designed for transflective spectroscopy measurement, it can effectively fix the optical fiber and prevent the detection effect due to human factors such as jitter.
Description
SA-Stage-RT |
|
| Item | Value |
| Base dimensions | φ150mm |
| Sample area size | width＜100mm |
| Sample light aperture (transmission measurement) | Φ10mm |
| Adjust the height | ~150mm（Other lengths can be customized） |
| Collimator wavelength range | 200~2500nm |
| Table material | Anodized aluminum |
| Reflective integrating spheres | For connection of 38 mm integrating balls (optional) |
| use | Designed for transflective fiber measurement, it can effectively fix the fiber and prevent human factors such as jitter from affecting the detection effect |
