SAMYON 7kg Pile Testing Equipment Customized Sediment Thickness Tester
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | SY-8110 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Hole Sediment Thickness Tester | Standard: | DGJ32/J 21 |
|---|---|---|---|
| Thickness Test Range: | =<285mm (can Be Customized) | Test Depth: | 100m (can Be Customized) |
| Communication Method: | WIFI | Holding Plate Diameter: | 180mm |
| High Light: |
7kg Pile Testing Equipment, SAMYON Pile Testing Equipment, Customized Sediment Thickness Tester |
||

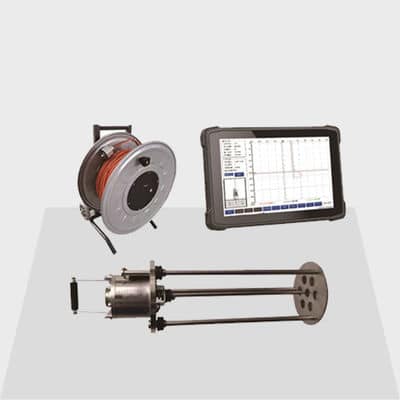

Sediment Thickness Tester For Test The Sediment Thickness Of The Bored Pile Hole
Application: Used to test the sediment thickness of the bored pile hole
Standard:
DGJ32/J 21-2009 Inspection and testing specification for construction engineering quality
DB 29-112-2004 Technical specification for the testing of the drilling hole of Cast-in-place pile and the Groove of Diaphragm wall
T/CECS 596-2019 Technical specification for testing of borehole of cast-in-place piles
T/CECS 597-2019 Technical specification for testing of diaphragm wall
JTG/T 3512 Technical Specification for foundation piles testing of highway engineering
Parameters:
| Item | Name | Details |
| 1 | Thickness test range | =<285mm (can be customized) |
| 2 | Precision | +/- 1.0mm |
| 3 | Test depth | 100m (can be customized) |
| 4 | Communication method | WIFI |
| 5 | Holding plate diameter | 180mm |
| 6 | Probe diameter | 180mm |
| 7 | Probe length | 655mm |
| 8 | Weight | 7kg |
| 9 | Power supply | DC 12V |
| 10 | Depth resolution | 0.1% FS |
Features:
1. The special tray probe type sediment thickness detection method can greatly reduce the environment impact during the test;
2. Non-contact high-precision probe detection device, the accuracy can reach 0.04mm
3. Full wireless low-power transmission mechanism, the operation is simple and convenient;
4. Multi-parameter signal acquisition, accurately determine the bottom position with high precision
5. Built-in large-capacity high-performance Li battery, effective working time can reach 15 days.
